5.5 BELT REPLACEMENT

1. Before starting be sure to Lockout/Tagout the machine.
2. Remove all frames and screens. (See screen removal as to how to remove
them.)
3. Clean table and inside torque tube so no contaminants will fall into inside
of bearing.

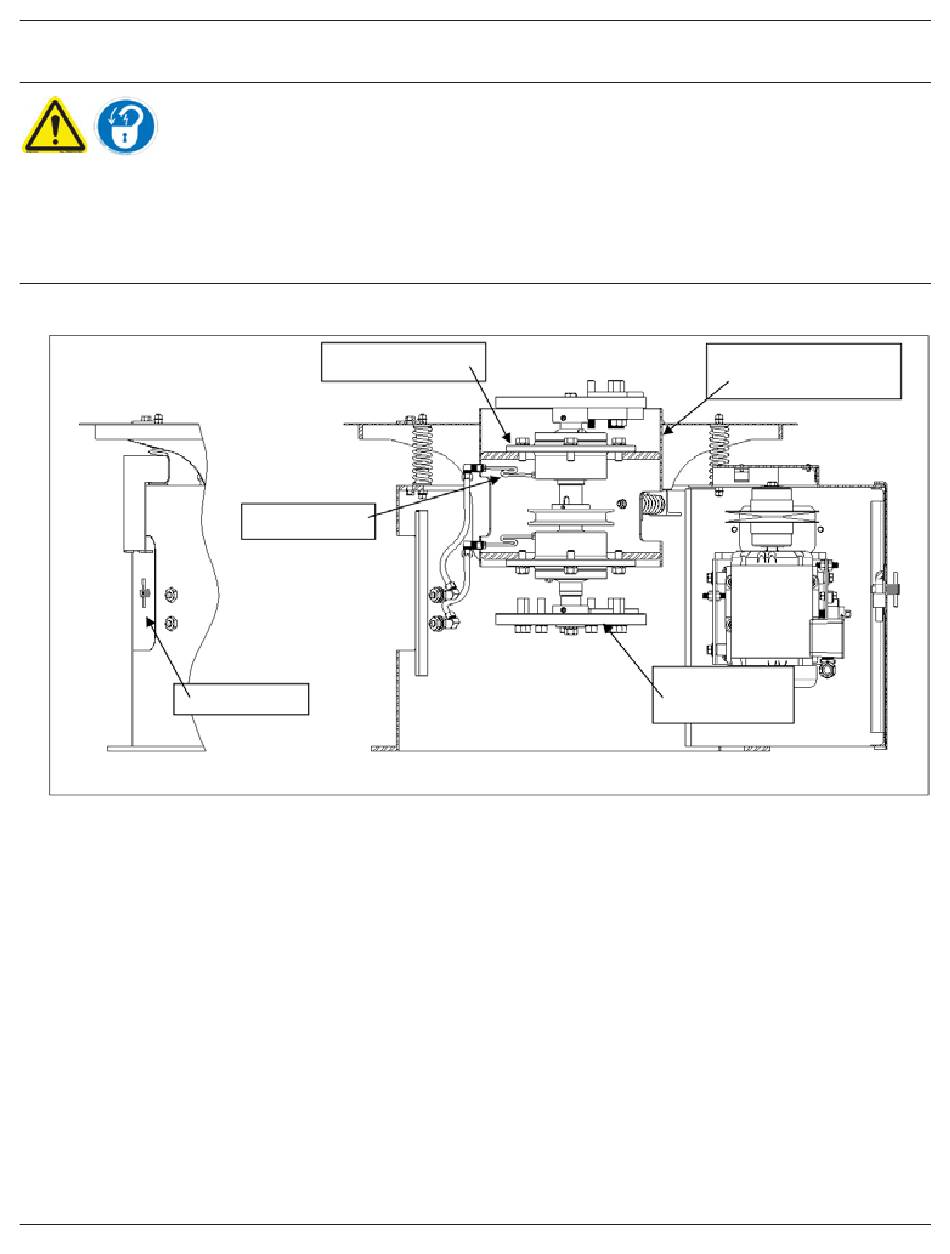

FIGURE 14
Bearing Housing
Table and Torque
Tube Assembly
Top Lube Line
Bottom
Access Door
Balance Cage
4. Disconnect top lube line at bearing housing.
5. On both balance cages mark weights and there locations then remove
them.
6. Remove bolt, two piece cam-lock washer and balance cage flat washers on
both balance cages.
7. On balance cages loosen set screw then slide balance cages off and re-
move the keys
8. Take bottom bearing housing cover off by removing 6 bolts. (Making sure
there no contaminants fall into inside of bottom bearing housing cover.)
9. Remove the 6 bolts holding top bearing housing to the table.
