Sponge-Jet 70P Recycler User Manual page 16

If material is moving around screen surface similar to flow pattern in figure
9, and it is preferred to have unit to perform as shown in figure 8. Shut down.
(Lockout/Tagout unit, be sure that all moving parts have stopped moving!) Re-
move weight from bottom balance cage and index clockwise one or two pins.
(Example: If weight is located on pins 5 and 6, place on pins 4 and 5) When all
hands are clear, start unit and check the flow pattern.
If material is not being retained on screen surface long enough, similar to flow
pattern on figure 7. Shut down. (Lockout/Tagout the machine, be sure all mov-
ing parts have stopped moving!) Remove weight from bottom balance cage
and index counterclockwise one or two pins. (Example: If weight is located on
pins 2 and 3, place weight on pins 4 and 5) When all hands are clear start the
separator and check flow pattern.
3. If you have tried various tilt convey settings described above and cannot
achieve acceptable screening, please contact Sponge-Jet, Inc. for more adjust-
ment assistance.

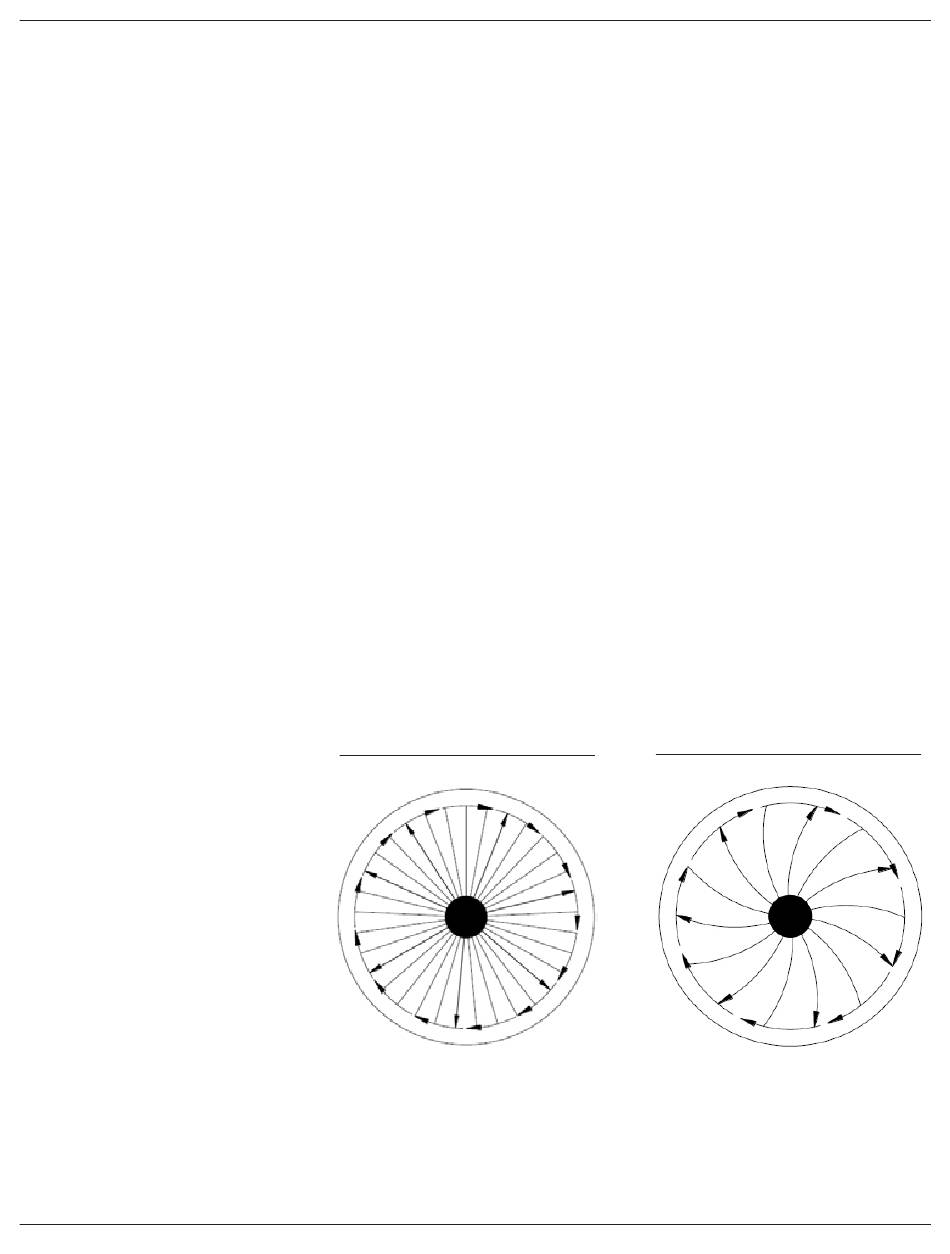

4. Recommended weight settings for figure 6 are Top mobile weight on pins
numbered 1 and 2, Top fixed weight on number 1 and 2, and Bottom mobile
weight on pins numbered 2 and 3.
5. Recommended weight settings for figure 7 are Top mobile weight on pins
numbered 1 and 2, Top fixed weight on number 1 and 2, and Bottom mobile
weight on pins numbered 4 and 5.
Figure 7
Figure 6
