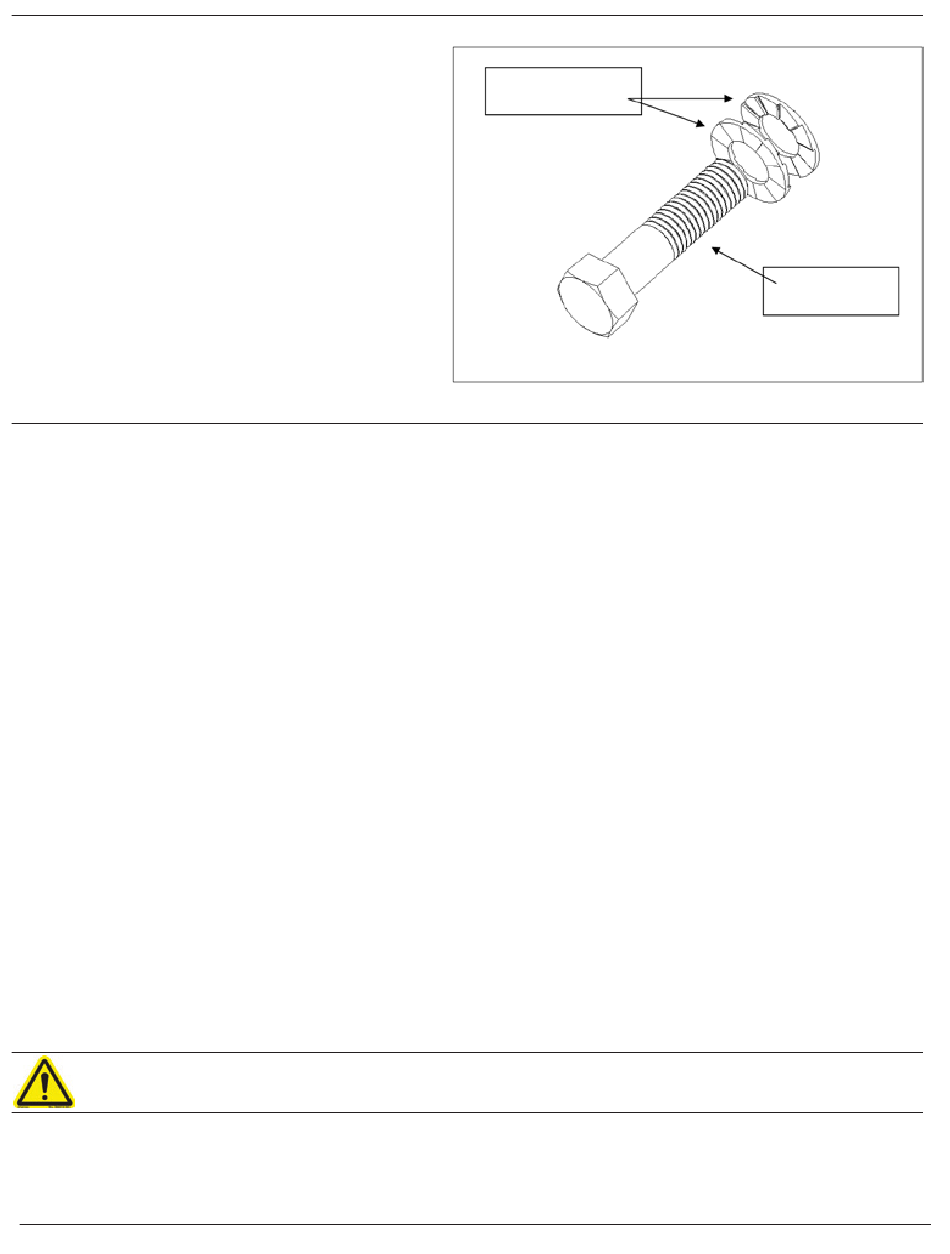

FIGURE 17
Two piece cam-
lock washer
1/2"-13 x 1-1/4"
grade 9 bolt
17. Reinstall top lube line to the bearing housing.
18. Reinstall bottom bearing cover and o-ring.
19. Install key and then slide bottom balance cage back on with hub facing up
and tighten set screw. Then place washer, cam-lock washers and 1/2"-13 bolt
back on.
20. Install top key and top balance cage with hub facing down and tighten set
screw. Then place washer, cam-lock washers and 1/2"-13 bolt back on.
21. Place all weights back in their original locations you have marked.
22. Remove side cover to RPM control lock (Motor Lock).
23. Remove RPM control lock (Motor Lock) for access to variable speed pulley.
24. Mark location of motor mount to help relocate it back to desired RPM
setting, then crank motor in all the way.
25. Remove variable speed pulley cover for easier access.
26. Take belt and start it onto the companion sheave and rotating shaft as-
sembly by hand until belt completely seats into place.
CAUTION: Do not pinch fingers between belt and companion sheave.
27. Now crank motor mount back to mark and reinstall and tighten RPM
control lock (Motor Lock).
| SPONGE-JET 70P 70E USER MANUAL
26
