Sponge-Jet 70P Recycler User Manual page 25

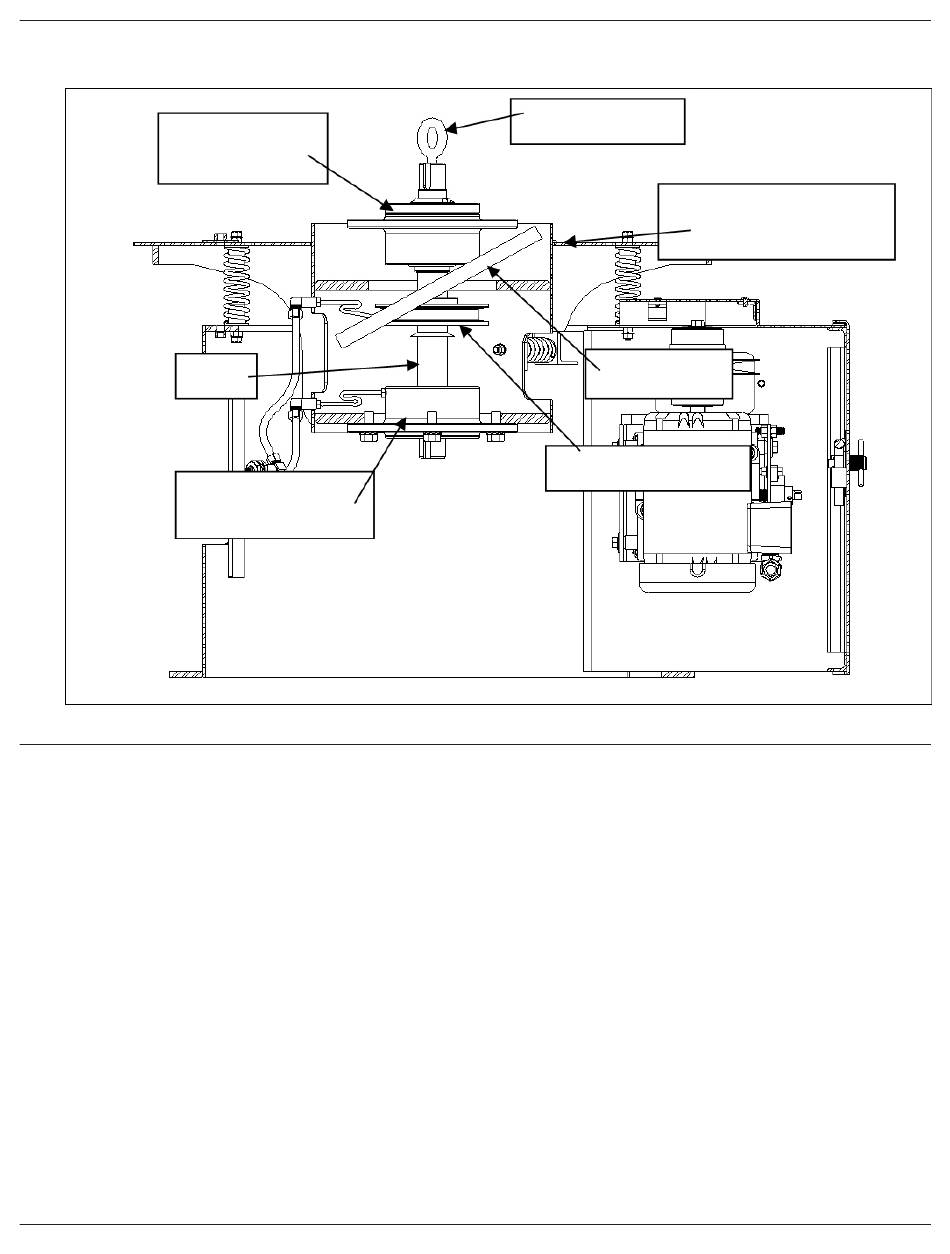

FIGURE 16
Top Bearing
Housing
Shaft
Bottom Bearing
Housing
13. Slide new belt through, between bearing housing and table assembly and
leave it there.
14. Carefully lower shaft assembly allowing shaft to slide back into bottom
bearing and housing. (Remember to making sure no contaminants fall into the
inside of the bottom bearing housing.)
15. Remove 1/2" lifting eye.
16. Bolt top bearing housing to table with 1/2"-13 x 1-1/4" grade 9 bolts and
cam-lock washers, make sure all bolts are tensioned properly.
1/2"-13 Grade 9 Bolts, torque to:
106 lb-ft (dry) / 144 N·m (dry) / 94 lb-ft (lubed) / 127 N·m (lubed)
1/2in Lifting Eye
Table and Torque
New belt
Companion Sheave
SPONGE-JET 70P 70E USER MANUAL |
Tube Assembly
25
