John Deere 7X00/7X10 MFWD SmarTrax Installation Kit (P/N 117-5034-004)

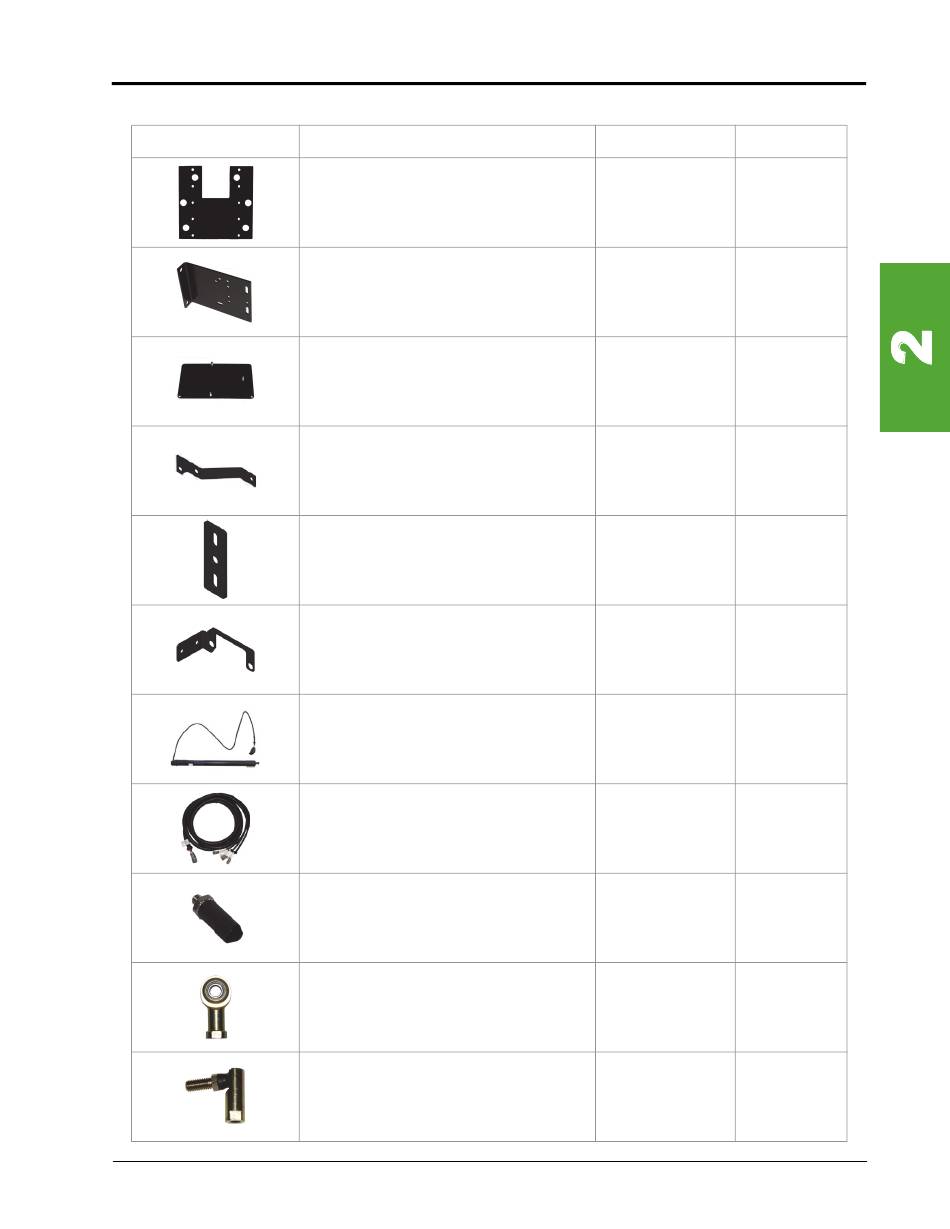

TABLE 1.
Manual No. 016-5034-004
Item Description
Bracket - Universal Mounting
Bracket - Hydraulic Valve Mounting
Bracket - Node Mounting
Bracket - MFWD Dual Cylinder WAS Frame
Mounting
Bracket - MFWD WAS Rod Mounting
Bracket - MFWD Single Cylinder WAS
Frame Mounting
Assembly - 250 mm Non-Contact Linear
Wheel Angle
Cable - John Deere 7000 Series Valve
Harness
Transducer - 0-3000 PSI Pressure
Mount - M10 Ball Linear Sensor
Mount - M10 Stud Linear Sensor
Introduction
Part Number Qty.
107-0171-578 1
107-0171-907 1
104-0171-946 1
107-0172-028 1
107-0172-030 1
107-0172-041 1
063-0181-017 1
115-4001-093 1
422-0000-086 1
103-0001-029 1
103-0001-030 1
5
