Mount The Smartrax Valve - Raven SmarTrax Installation Manual

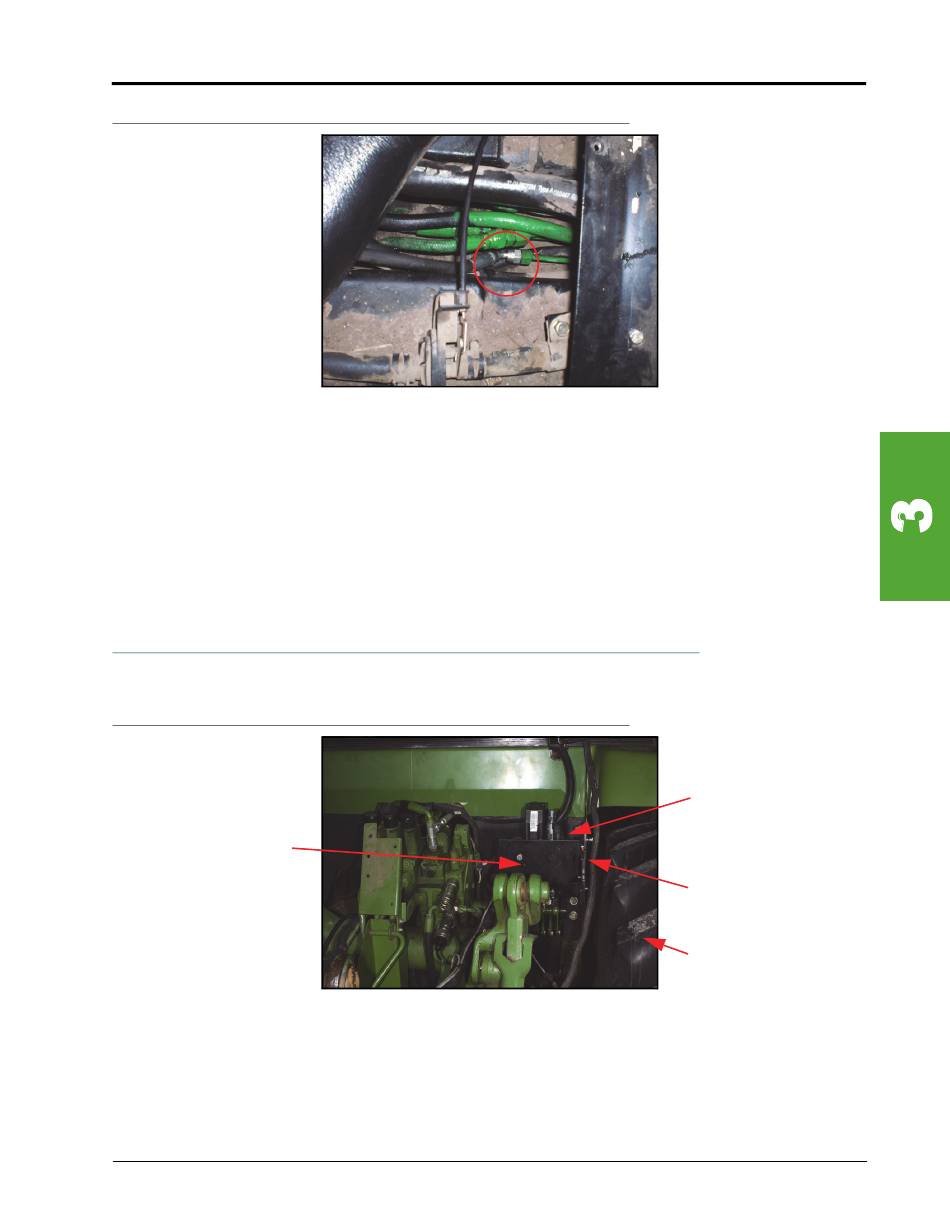

Supplied Hydraulic Hose Installed on Machine's Load Sense Hose
FIGURE 11.
Install a -4 ORFS M/M straight adapter fitting (P/N 214-1000-268) on the end of the machine's load sense
5.
hose.
Install the 45° end of the supplied hydraulic hose (P/N 214-1000-762) on the installed adapter fitting.
6.
Label the straight end of the installed hydraulic hose "LSPV."
7.
Note:
The installed hydraulic hose will be connected to the SmarTrax valve (P/N 334-0003-088) later in
the installation procedure.
Route the installed hydraulic hoses to the installed universal bracket (P/N 107-0171-578) mounting location.
8.

Mount the SmarTrax Valve

SmarTrax Valve Installed on Universal Mounting Bracket
FIGURE 12.
Valve Mounting Bracket
(P/N 107-0171-907)
Install the SmarTrax valve (P/N 334-0003-088) on the valve mounting bracket (P/N 107-0171-907) using
1.
four 5/16"-18 UNC x 7/8" hex bolts (P/N 311-0052-104) and four 5/16" split lock washers (P/N 313-1000-
019).
Manual No. 016-5034-004
Hydraulic System Installation
SmarTrax Valve
(P/N 334-0003-088)
Universal Mounting
Bracket
(P/N 107-0171-578)
Right Rear Tire
21
