Chapter 2

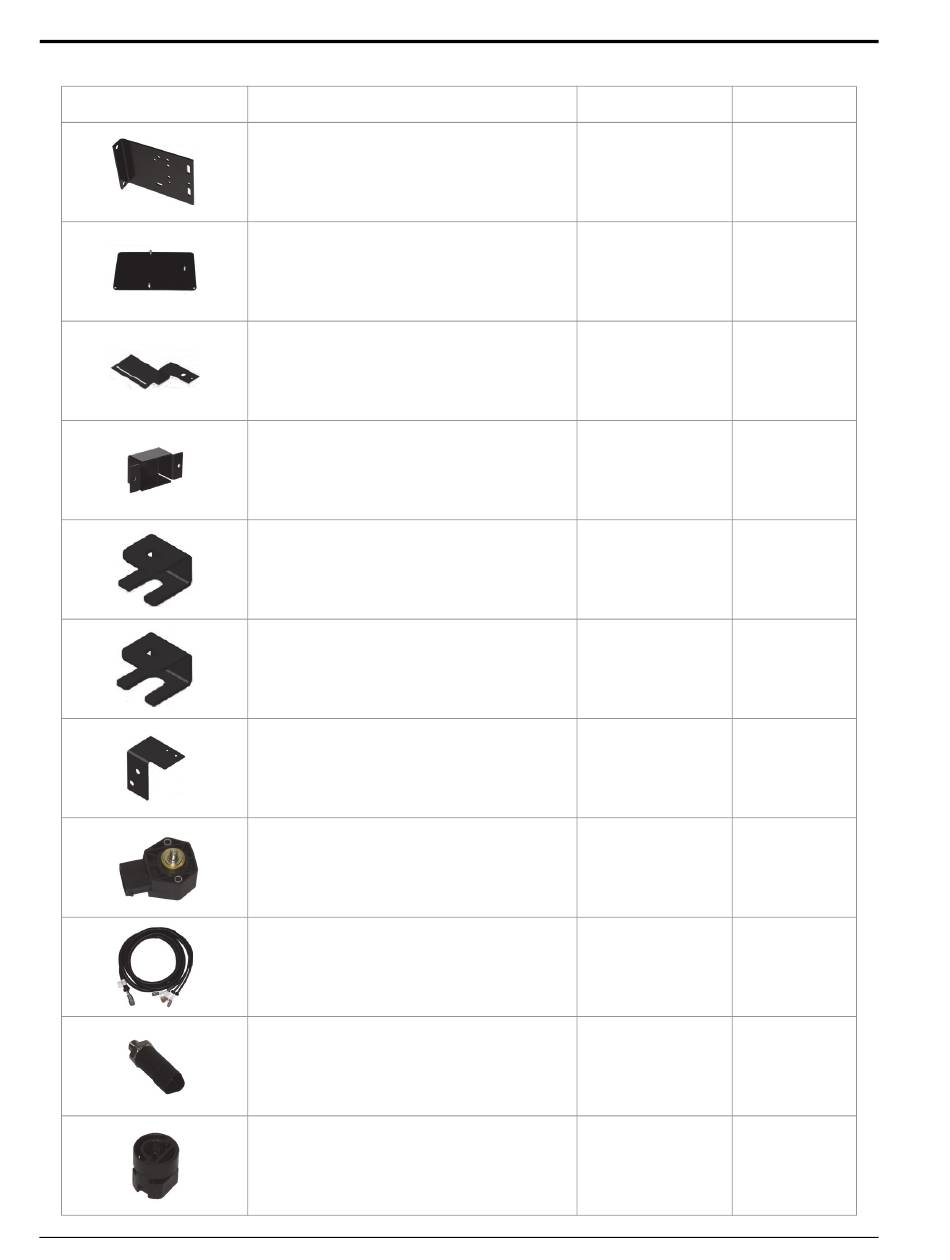

John Deere 7X00/7X10 2WD SmarTrax Installation Kit (P/N 117-5034-008)
TABLE 2.
8
Item Description
Bracket - Hydraulic Valve Mounting
Bracket - Node Mounting
Bracket - 2WD Sensor Mounting
Bracket - 2WD Sensor Cover
Bracket - 5/8" Bolt 2WD Sensor Centering
Bracket - M20 Bolt 2WD Sensor Centering
Bracket - 2WD Axle Mounting
Sensory - Rotary
Cable - John Deere 7000 Series Valve
Harness
Transducer - 0-3000 PSI Pressure
Coupler - WAS
John Deere 7X00/7X10 Series SmarTrax™ Installation Manual
Part Number Qty.
107-0171-907
104-0171-946
107-0171-982
107-0171-983
107-0171-984
107-0172-016
107-0172-044
416-0001-050
115-4001-093
422-0000-086
307-0159-419
1
1
1
1
1
1
1
1
1
1
1
