2.4

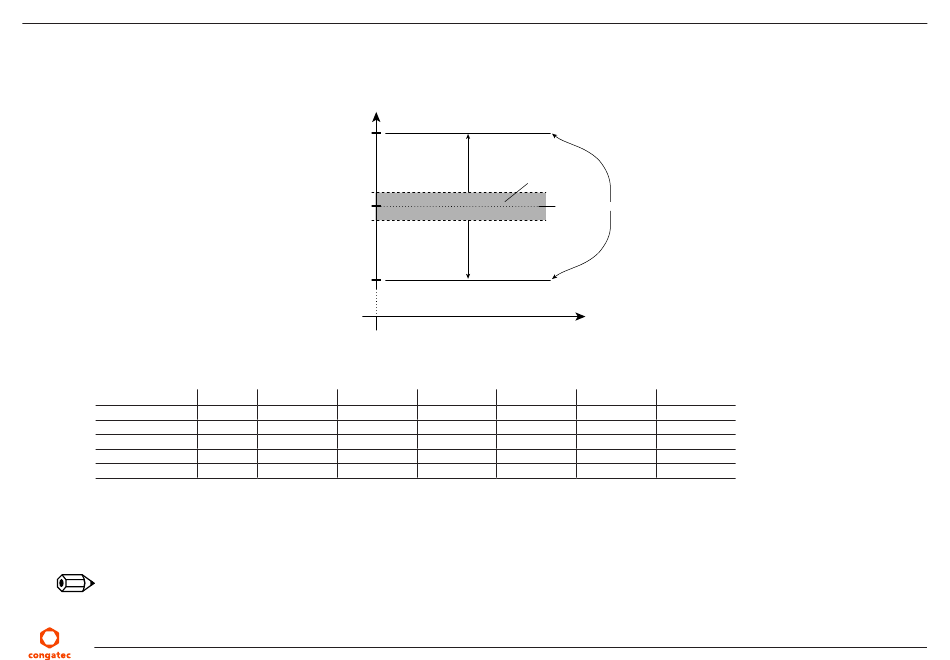

Supply Voltage Standard Power

• 5V DC ± 5%
The dynamic range shall not exceed the static range.
2.4.1

Electrical Characteristics

Characteristics
5V Voltage
Ripple
Current
5V_SB Voltage
Ripple
2.4.2

Rise Time

The input voltages shall rise from 10% of nominal to 90% of nominal at a minimum slope of 250V/s. The smooth turn-on requires that during
the 10% to 90% portion of the rise time, the slope of the turn-on waveform must be positive.
Note
For information about the input power sequencing of the Qseven
Copyright © 2013 congatec AG
5.25V
5.05V
5V
4.95V
4.75V
Min. Typ.
± 5% 4.75 5.00
- -
± 5% 4.75 5.00
Absolute Maximum
Dynamic Range
Nominal Static Range
Absolute Minimum
Max. Units
5.25 Vdc
± 50 mV
PP
5.25 Vdc
± 50 mV
PP
® module, refer to the Qseven ®
QMX6m12
Comment
0-20MHz
specification.
