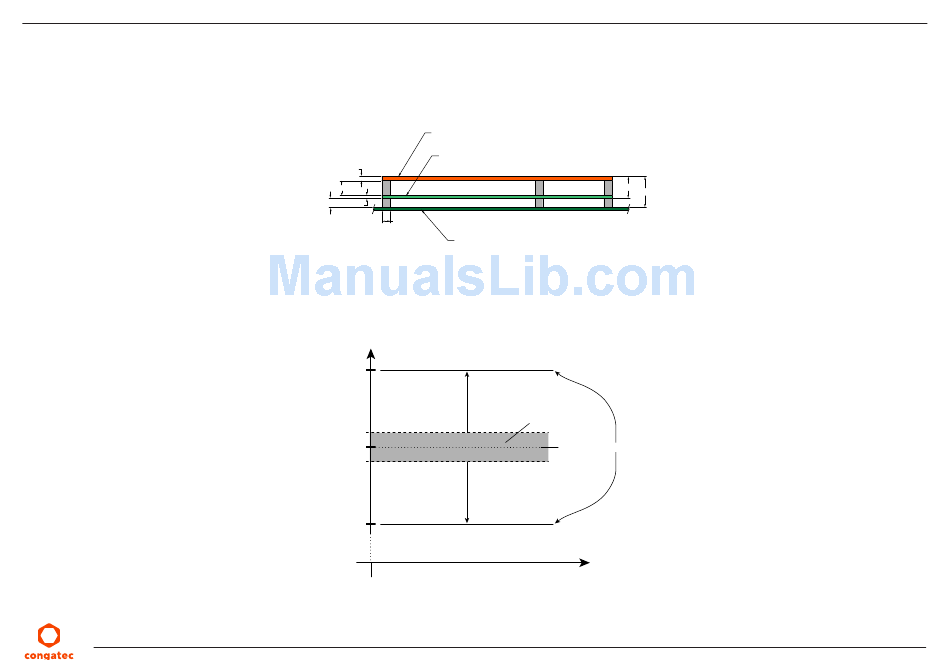

2.3

Mechanical Dimensions

• 95.0 mm x 95.0 mm (3.75" x 3.75")

• Height approximately 18 or 21mm (including heatspreader) depending on the carrier board connector that is used. If the 5mm (height)

carrier board connector is used then approximate overall height is 18mm. If the 8mm (height) carrier board connector is used then approximate

overall height is 21mm

2.4

• 12V DC ± 5%

The dynamic range shall not exceed the static range.

Heatspreader

Module PCB

4.00

7.00

5.00

1.60

4.50

Carrier Board PCB

12.60V

Dynamic Range

12.10V

12V

11.90V

11.40V

13.00

18.00

Absolute Maximum

Nominal

Static Range

Absolute Minimum

TA50m10

15/72
