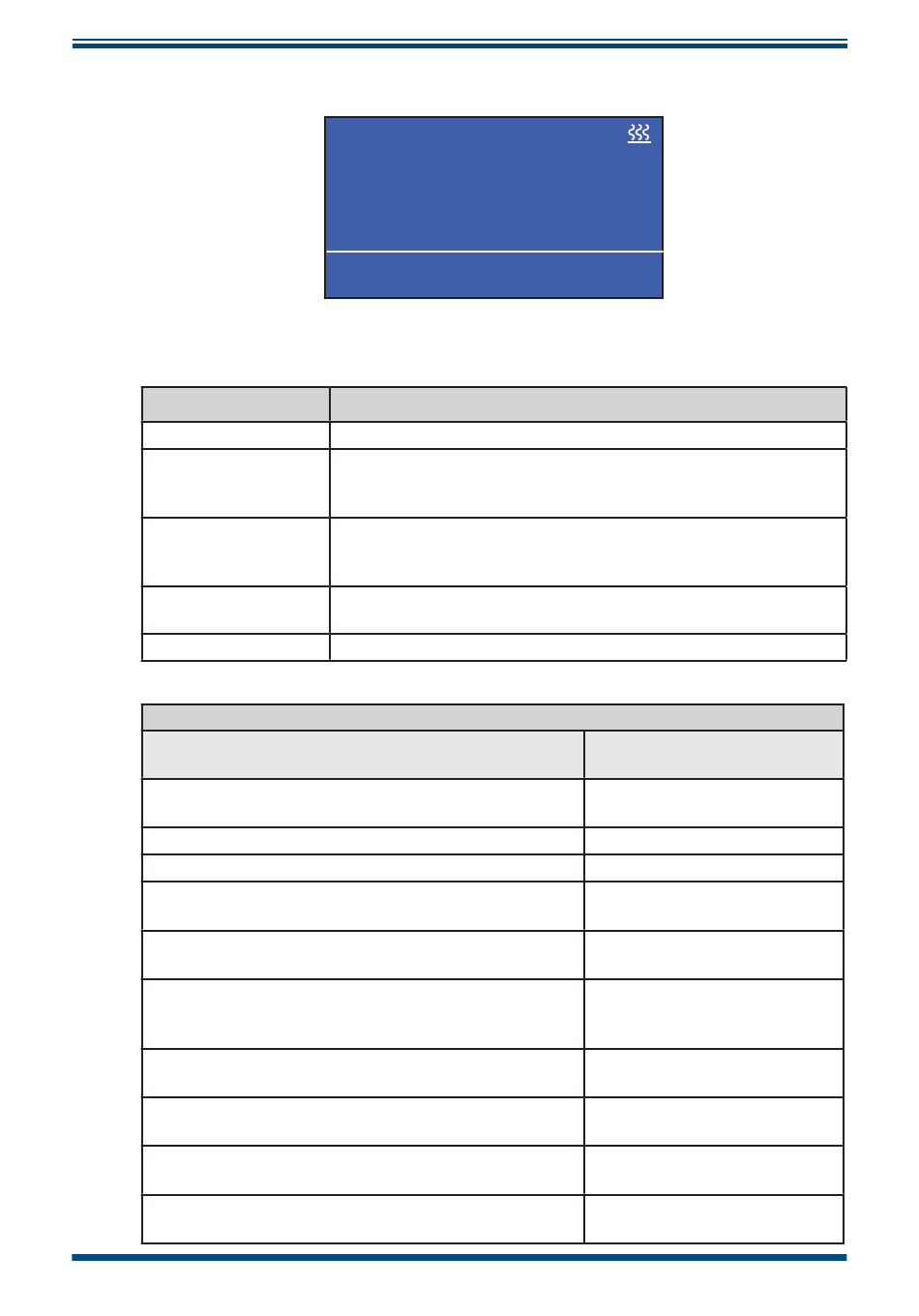

Main Page; Figure 10 Main Page - Michell Instruments XTP601 User Manual

OPERATION
2.5.1

Main Page

Parameter
Background Gas
% O2
(if HSR=OFF)
% O2p
(if HSR = ON)
Flashing "Heating"
Symbol
Status Bar
Status Message Table
Message
(Trigger Condition)
% O2 out of range
(beyond calibration range, e.g. 0-25%)
AL1 ON
AL2 ON
Comp i/p signal error
(input < 3.6 mA or > 21 mA)
Ext sens signal error
(input < 3.6 mA or > 21 mA)
Cell T not stable
(not within ±0.5ºC of set point for continuous period
of 5 minutes)
Cell T sensor error
(cell temp measures <-50 or >+80ºC)
Press sensor error
(pressure sensor < 850 or >1100 mbar)
O2 sensor error
(Vcomp <1 or >8191)
PCB temp too high
(PCB temp > cell temp set point)
10
Back. Gas: N2
20.91
Cell T Not Stable
Figure 10
Description
Displays the background gas that the unit was calibrated in
Real oxygen reading in %
Display resolution = 0.01
(Display resolution 0.1% when min value is >=20%)
HSR oxygen reading (extrapolated quick response value of real
oxygen reading)
Real oxygen value is displayed in status bar
This flashes until cell temperature is stable at set point ±0.5°C for
minimum of 5 minutes
Flashes any system warnings and error messages (see below)
XTP601 User's Manual
% 02
Main Page
Light Guide
(if fitted)
ORANGE1 ON (app s/w only)
ORANGE2 ON (app s/w only)
RED FLASH
(priority2)
RED FLASH
(priority2)
RED ON
(priority1)
RED ON
(priority1)
RED ON
(priority1)
RED ON
(priority1)
RED ON
(priority1)
97313 Issue 5, May 2018
N/A
