APPENDIX A
A.1
Dimensions Ex version
234 mm (9.21'')
11.5 mm
(0.45'')
172 mm (6.77'')
12.0 mm (0.47'')
171 mm (6.73'')
195 mm (7.68'')
30 mm (1.18'')
35 mm (1.38'')
NOTE 1: GP1 and GP3 models have 1/4" NPT female gas connections.
EX1, EX3 and GP2 models have 1/8" NPT female gas connections.
NOTE 2: Fixing mounts are NOT symmetrical.
This is to ensure correct orientation.
38
9 mm (0.35'')
TY P
1/8" NPT
(SH OWN WITH FLAME ARRESTOR FITTED)
2 off
M20
3 off
35 mm (1.38'')

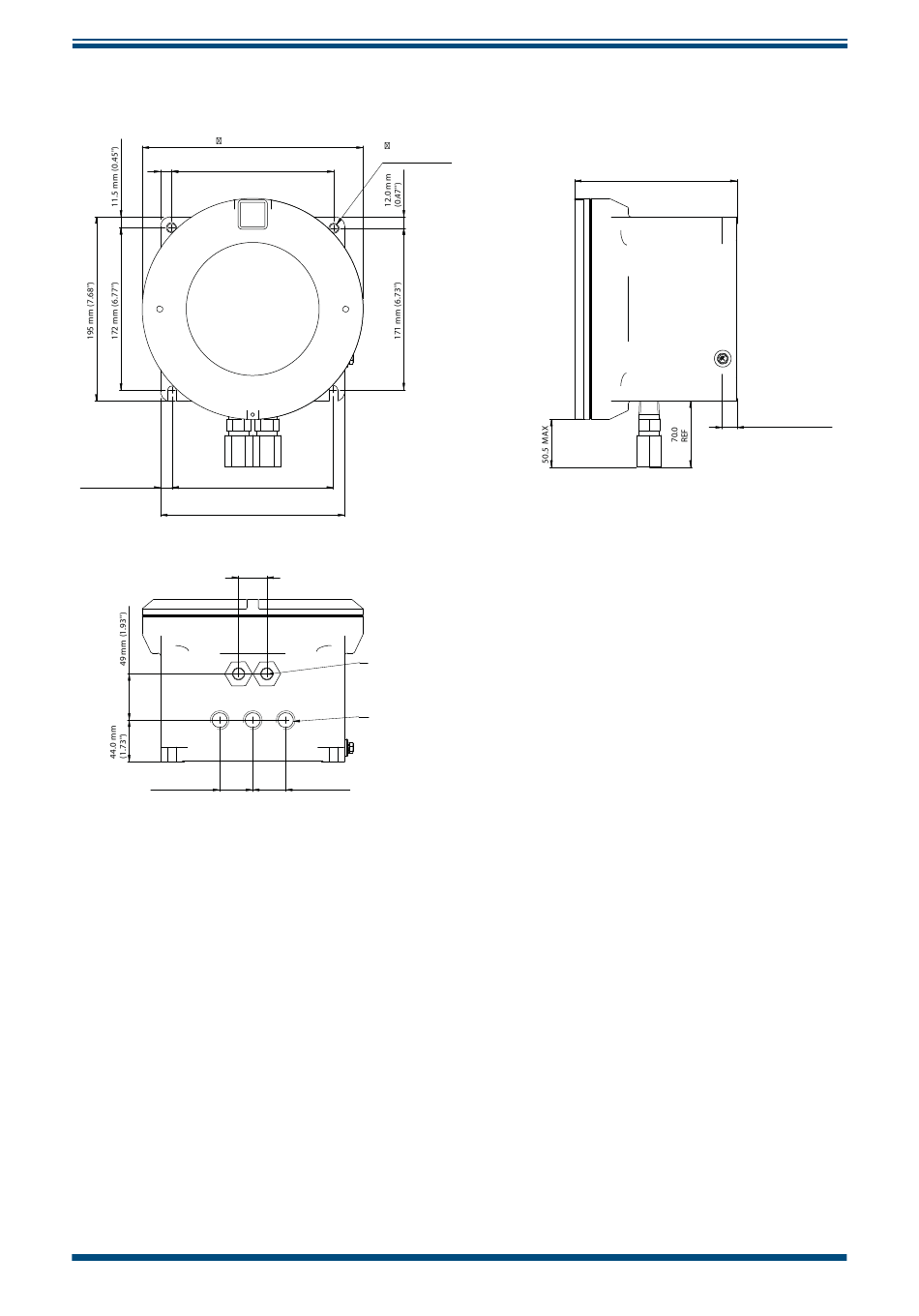

XTP601 Dimensional Drawings
Figure 32
XTP601 User's Manual
172 mm (6.77'')
15.5 mm (0.61'')
97313 Issue 5, May 2018
