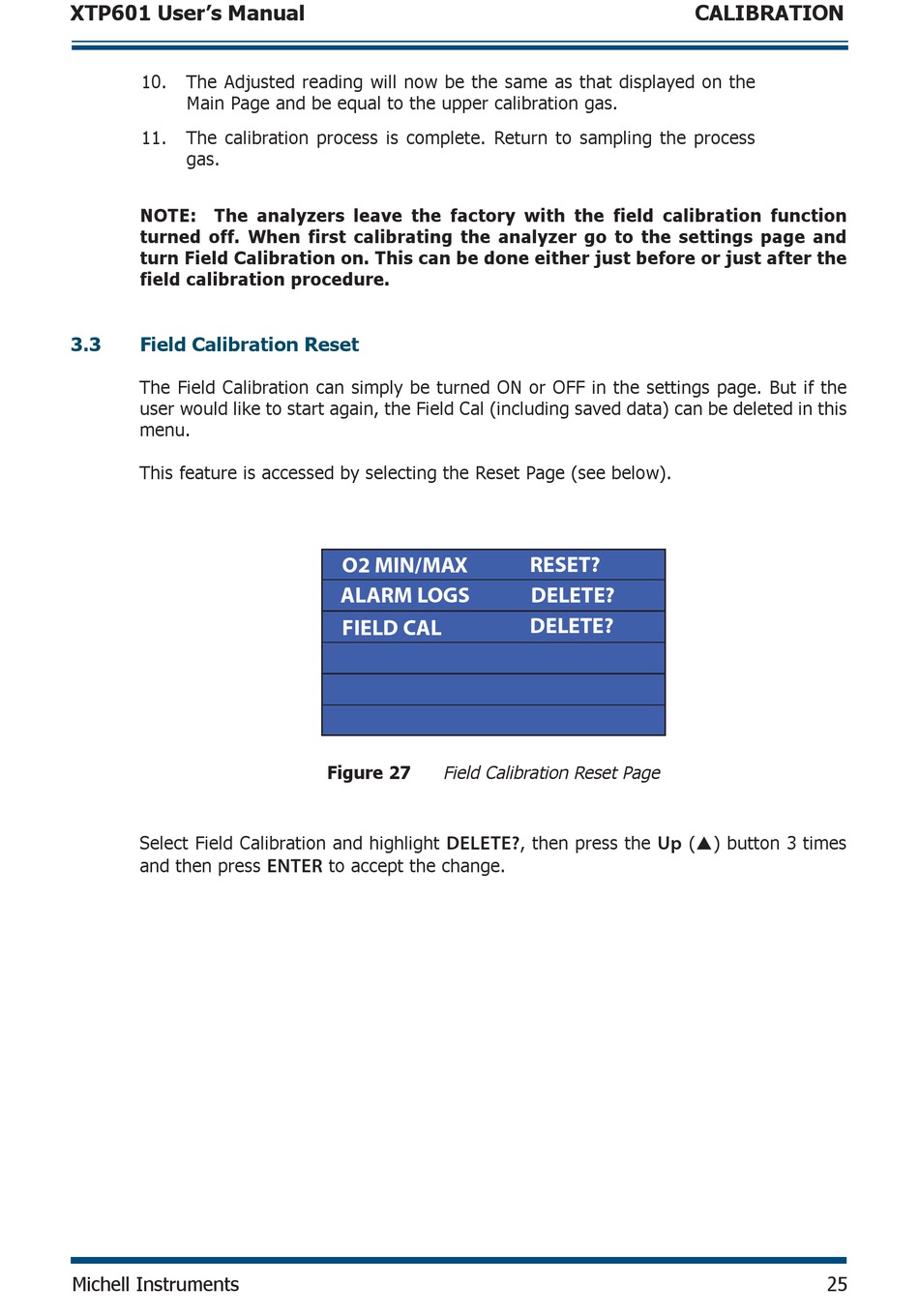

XTP601 User's Manual

10.

The Adjusted reading will now be the same as that displayed on the

Main Page and be equal to the upper calibration gas.

11.

The calibration process is complete. Return to sampling the process

gas.

NOTE: The analyzers leave the factory with the field calibration function

turned off. When first calibrating the analyzer go to the settings page and

turn Field Calibration on. This can be done either just before or just after the

field calibration procedure.

3.3

Field Calibration Reset

The Field Calibration can simply be turned ON or OFF in the settings page. But if the

user would like to start again, the Field Cal (including saved data) can be deleted in this

menu.

This feature is accessed by selecting the Reset Page (see below).

Select Field Calibration and highlight

and then press

Michell Instruments

O2 MIN/MAX

ALARM LOGS

FIELD CAL

Figure 27

to accept the change.

ENTER

RESET?

DELETE?

Field Calibration Reset Page

, then press the

DELETE?

CALIBRATION

() button 3 times
