Quick Startup

Navigation - built in MCX
controller
(Placed at the rear of the front
panel door)
R717 low Pres limit
Actual R717 Pres
Actual R452A Pres
Upper Threshold for Purge Valve
Lower Threshold for Purge Valve
Actual R452A Temp
Main screen, current informa on on IPS status
Status of purging process and purging counters
20 | BC344024774466en-000201
For the fastest possible system configuration after connecting all purge points to the IPS and following
first power up of the IPS, follow these simple instructions:
1. Navigate from the Main Menu to Login
2. Enter password '200' .
3. Choose 'Parameters' .
4. Choose 'Unit Config'
5. Choose 'Valve Settings'
6. Enter the amount of purge solenoid valves connected to the IPS.
After switching on the controller, a display
window will momentarily show the actual
software version, followed by the default main
operating window shown in Fig. 26.
Compressor on Error/Alarm Purge valve open Purge point (1-8)
Temperature and superheat status
Informa on on Purge points ac vity

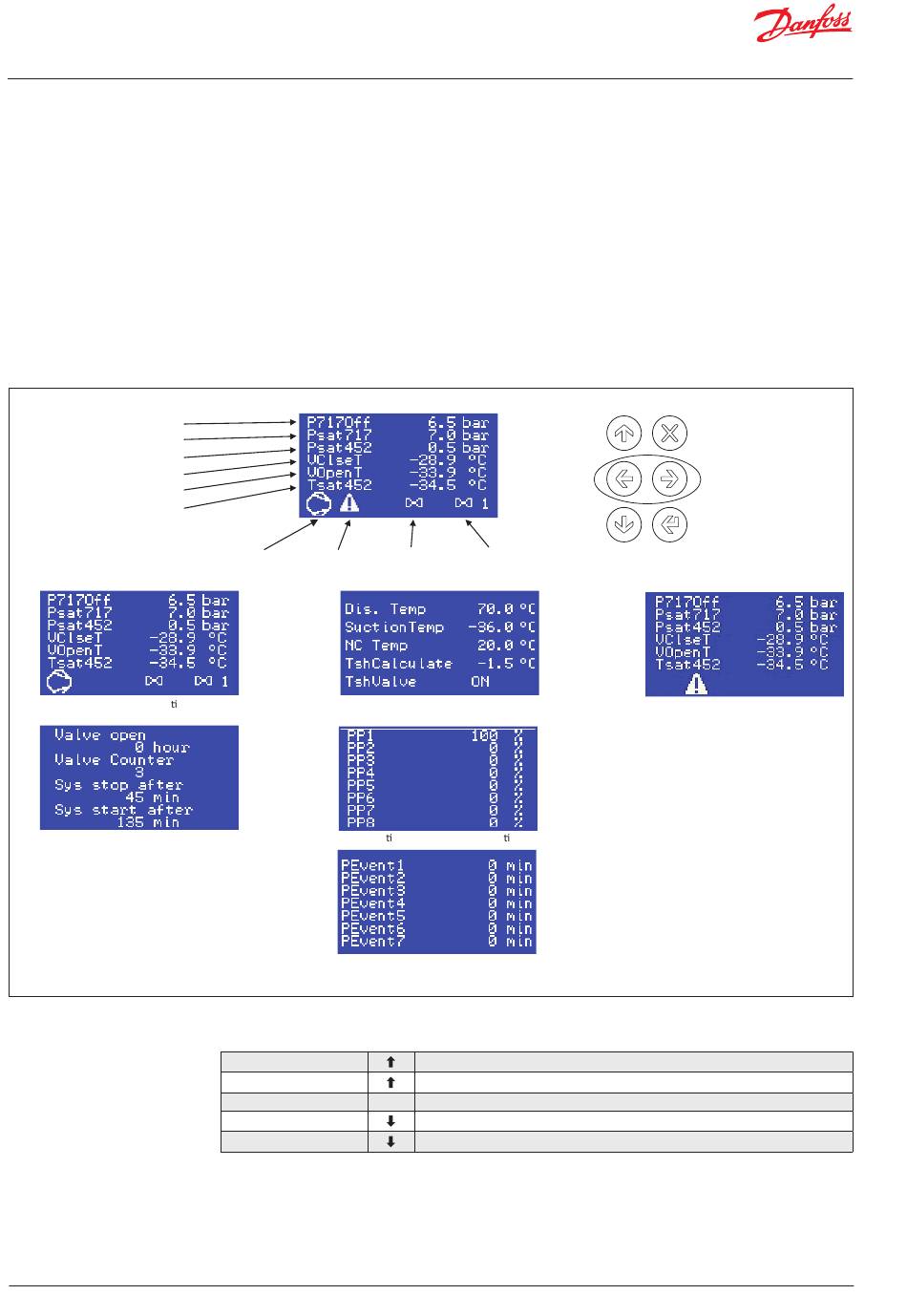

Fig. 26 - Default main window. Operating (start) mode. (Examples only)
Table 01 - Status windows
Purge Point percentage
Dis. temp.
Main Window default See above
Cycle info
Past events
While in operation mode, the Up/Down arrow
buttons lead the user to the status windows
described in Table 01 below.
Log of purging events
Distribution of the actual purging on the various purge points
Actual R452A discharge temperature (°C)
Acc. time Purge valve open (h)
Last 7 purging events (min)
Up Esc
.
Not
Used
Down Enter
