Electrical wiring

Retroportella - Rear of the door
25 x 60
16D0
Danfoss
MCX15B
25 x 60
FISSAGGIO SU PIASTRA RETROPORTELLA
FIXING ON THE REAR DOOR PLATE
Observe:
- All wiring must comply with local and national regulations.
- Power connection wire recommendation: Minimum 75 °C (167 °F) rate copper wire.

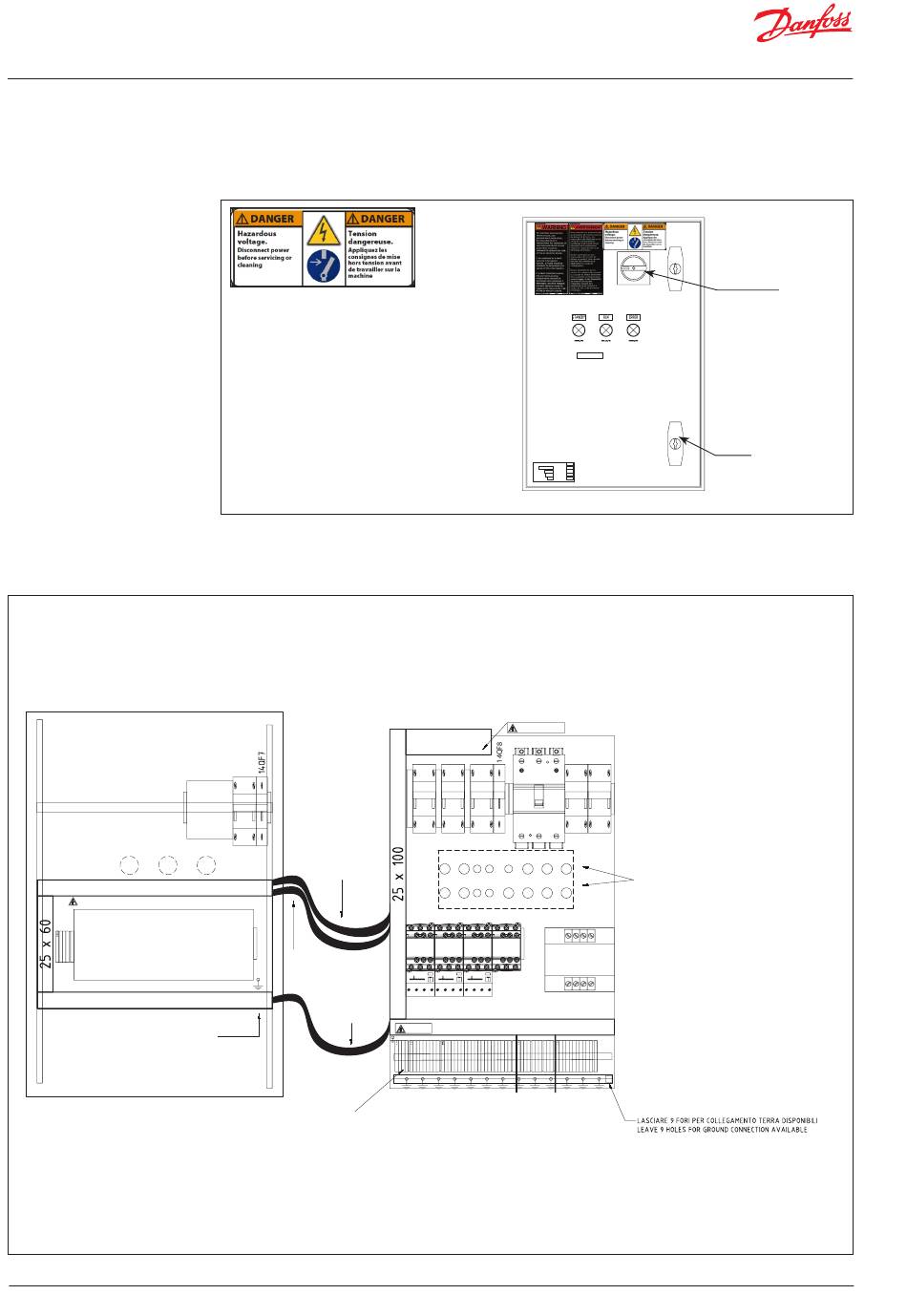

Fig. 16 Controller box internal
14 | BC344024774466en-000201
The internal wiring of the purger is done at the
factory. Only the electrical wiring for the main
power supply, the purge point solenoids and
optional bus communication needs wiring on site.
Fig. 15 Controller box external
Electrical panel can only be opened at key unlock and with the main switch off.
Note: Authorized personel only
14GD1
14QF5
Danfoss
080Z0055
GUAINA POTENZA
POWER SHRINK
GUAINA LOGICA
LOGIC SHRINK
GUAINA SONDE
PROBE SHRINK
L1 / N1 / GRD
Rigid metal conduits SHALL be used, according
to NEC.
21HL1
Progeco srl
LARGEST MOTOR 4,19A
FLA
LARGEST RESISTANCE
MODEL DANFOSS INTELLIGENT 0,24A
PURGING SYSTEM (IPS 8) – NAM RLA
SCCR CURRENT
WIRING DIAGRAM RIV19E01 18kA
1PH + N/GRD CONSTRUCTION YEAR 03 / 2020
ELECTRIC SUPPLY
230V 60Hz
ENCLOSURE
FULL LOAD CURRENT 6,2A TYPE 12
RATING
Industrial control panel for general use Via Laghi, Calcinelli (PU) www.progecoautomazione.it
Piastra - Plate
ATTENTION, VOLTAGE PRESENCE
230V 60Hz 1PH + N
40 x 100
10QF0
11QF1 11QF2 11QF3
12QF4
RC M1 PPH PSH VR1
GR1 ST1 ST3
M16 M16 M16 M16 M16
M12 M12 M12
LLS M2 BPL BPH YV1 TR
GR2 ST2
M16 M16 M16 M16 M16 M16
M12 M12
21KM1 21KM2 21KM3
15KM4
0-230
14T1
0-110
11FR1 11FR2 11FR3
25 x 100
SUPPLY LINE
230V 60Hz 1PH + N
ON/OFF Switch
21HL2 21HL3
PURGING
Key Lock
14QF6
INGRESSO CAVI DA IMPIANTO VERSO QUADRO ELETTRICO
CABLE INPUT FROM PLANT TO ELECTRIC PANEL
