User Guide | Intelligent Purging System (IPS 8) for Ammonia - Technical data, installation and use

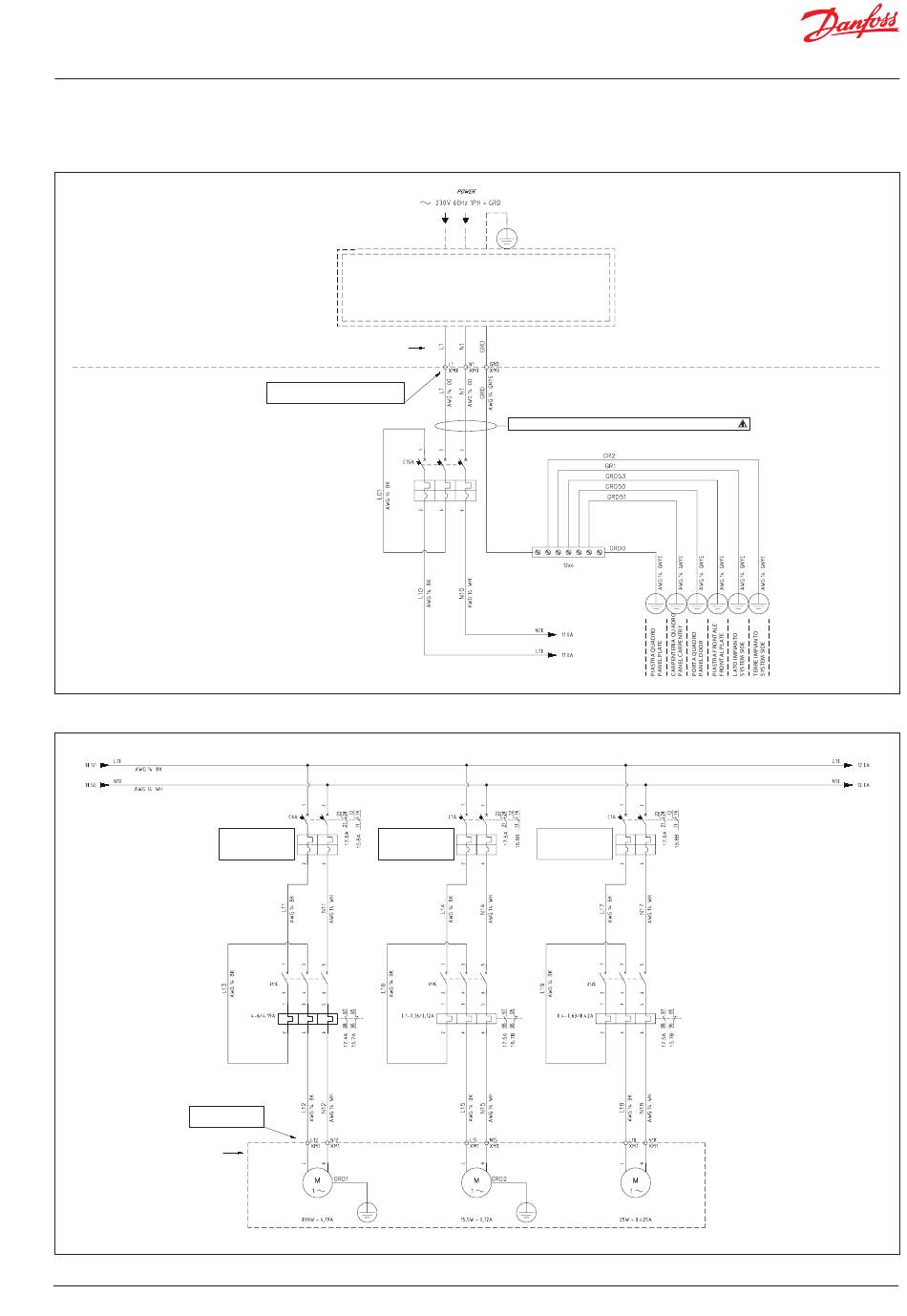

Electrical wiring
(continued)
Field Installed
Electric Panel
Fig. 17
Calibrate aux.cont.
OF-OF
Terminal block
torque 0,5-0,6 Nm
Use Copper Conductors Only 75°
Terminal Block For Field Installed
Fig. 18
© Danfoss | DCS (ms) | 2021.03
Main protection shall be provided in
the field, use Fuse 16A CC Fast or
Circuit Breaker C16A
Use Copper Conductors Only 75°
Terminal Block For Field Installed
Torque 0,5-0,6 Nm
10QF0
11QF1
Calibrate aux.cont.
OF-OF
21KM1 21KM2
11FR1 11FR2
Field Installed
M1
COMPRESSOR
Insulate conductors in heat shrink tubing with signaling
10GRD
11QF2 11QF3
Calibrate aux.cont.
OF-OF
21KM3
11FR3
VR1 M2
AIR EXTRACTION FAN CONDENSER FAN
