- Page 1 INSTRUCTION AND MAINTENANCE MANUAL XM 20T SERIES ATEX Z22 II3D XM 20T M Z22 XM 20T M Z22 JC XM 20T T Z22 JC...
-
Page 2: Table Of Contents
TABLE OF CONTENTS: 1. INFORMATIVE SECTION Foreword ....................... 4 Main parts ......................7 Optional parts ....................... 8 Manufacturer's identification data ..............8 Identification plate ....................8 Permitted Uses ..................... 8 Authorised environmental conditions ..............9 Noise level ......................9 Technical Data ....................10 1.10 Warranty ...................... - Page 3 5. MAINTENANCE SECTION Informative notes ....................30 General safety regulations ................31 Filter cartridge replacement (only on XM 20T JC) ........... 33 Filter replacement (only on XM 20T) ..............35 HEPA Cartridge replacement (if provided) ............37 Troubleshooting ....................38 Scrapping ......................
-
Page 4: Informative Section
IMPORTANT - The DEPURECO term and logo in this document refer to and are the property of DEPURECO INDUSTRIAL VACUUMS S.r.l. This document remains the exclusive property of DEPURECO S.r.l. Full or partial reproduction by any means (graphical, electronic, etc.) is prohibited without prior authorisation from the Company... - Page 5 This manual is an integral part of the vacuum cleaner and must accompany it at all times, until its demolition. In the event it is lost or damaged, you can request another copy from DEPURECO INDUSTRIAL VACUUMS S.r.l. (henceforth shortened to DEPURECO).
- Page 6 The topics covered in this manual are those expressly required by Machinery Directive 2006/42/EC and the technical data are taken from the technical file archived at DEPURECO. With reference to Regulation 1907/2006/EC (REACH), DEPURECO hereby declares that no Substances of Very High Concern - (SVHC) included in the Candidate List, are contained in its products.
-
Page 7: Main Parts

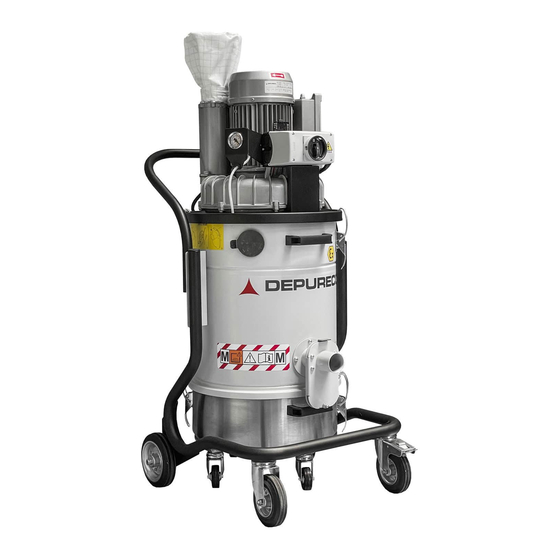

Main parts XM 20T Z22 JC XM 20T Z22 1. Motor head with on/off commands 2. Handle 3. JetClean® Valve 4. Camera filtrante 5. Inlet 6. Manual filter shaker handle 7. JetClean® sliding damper 8. Dust bin hooks 9. Dust/Debris bin Pag. 7 di 44... -
Page 8: Optional Parts
Optional parts A wide range of optional accessories is available from DEPURECO depending on the intended use of the vacuum. Manufacturer's identification data DEPURECO INDUSTRIAL VACUUMS S.r.l. Corso Europa 609 - 10088 Volpiano (TO) - ITALY phone +39 011 98 59 117 - fax +39 011 98 59 326 | VAT NO. 02258610357 e-mail: depureco@depureco.com - website: www.depureco.com... -
Page 9: Authorised Environmental Conditions
Authorised environmental conditions To ensure the correct operation, the vacuum cleaner must be kept away from atmospheric agents (rain, hail, snow, fog, dust in suspension, etc.) in an area with a room temperature range between 5° and 45°C and a relative humidity no higher than 70%. The work environment must be clean and suitably lit. -
Page 10: Technical Data
Technical Data U.M. XM 20T Z22 XM 20T M Z22 XM 20T T Z22 Peso* [Kg] Dimensioni di [mm] 516 x 545 x 1050 550x620x1400 ingombro** Tensione / [V]- [Hz] 230 - 50/60 400 – 50/60 Frequenza Potenza 1,8 - 2,4 [kW -HP] Depressione [mBar]... -
Page 11: Warranty
DEPURECO shall not be held liable for any injuries to persons or damage to objects caused by misuse or improper use of the vacuum. -
Page 12: Safety Section
Adequate training is crucial to this end. DEPURECO shall not be held liable for accidents or damage due to the improper use of the vacuum by untrained personnel or to failure to comply, even partially, with the occupational safety standards and intervention procedures contained in this manual. -
Page 13: Safety Recommendations
Structural damage, alterations or improper repairs can modify the protective capacity of the vacuum, thereby nullifying this certification and releasing DEPURECO from any liability. Each section lists further safety measures specific to the various functions. - Page 14 To use flexible hoses which are not wholly antistatic (superficial antistatic properties are not • accepted). The use of original DEPURECO accessories is recommended. Verify electric continuity with an ohmmeter: 1. Between the inlet and the ending part of the vacuum’s accessories: The resistance measured must be inferior to 100MΩ...
-
Page 15: Safety Plates And Symbols
Clean them using a cloth with water and soap. Do not use solvents, naphtha or petrol. Request replacements for damaged plates from DEPURECO. If a plate is located on a component that is being replaced, make sure to fit the old plate to the new component. - Page 16 Warning! Crushing hazard for the upper limbs during insertion and locking of the dirt container under the vacuum cleaner. Never place your hands between the vacuum and the dirt container while inserting and locking the later under the vacuum cleaner. Lock the container by means of the special lever, using BOTH HANDS Warning! Read carefully this use and maintenance manual before using the vacuum cleaner or carrying...
-
Page 17: Residual Risks
Warning! The removal of safety plates from the vacuum and/or its components and packaging is strictly prohibited. DEPURECO shall not be held liable for the vacuum's safety in the event of failure to comply with this prohibition. Applied Directives The following directives apply to the vacuum cleaner described in this manual:... -
Page 18: Handling Unpacking And Installation Section
3. HANDLING, UNPACKING AND INSTALLATION SECTION Handling Warning! The instructions for transporting and unpacking the vacuum correctly are shown on the packaging as well. The following instructions also indicate the operations to be undertaken should the vacuum need to be re-packed or unpacked after subsequent transportation. -
Page 19: Unpacking
3.2 Unpacking Cut and unwind the two packaging fixing belts remove the staples that fix the carton packaging to the pallet with the aid of a screwdriver remove the carton completely Pag. 19 di 44... - Page 20 Loosen and remove the fastening screws and brackets from both sides The cardboard packaging can be recycled. To protect the environment, make sure to dispose it off in specialised collection centres. Warning! Keep the pallet. In the event of subsequent transport, the vacuum must be secured to the pallet using the same fastening system.
-
Page 21: Installation
In the event of one or more components being damaged, do not continue with installation, inform DEPURECO about the anomaly and agree upon action to be taken. The vacuum cleaner is already fitted with an appropriate filter intended exclusively to vacuum dry dust... - Page 22 Note: the flexible tube and the relevant end-pieces and accessories are not included with the STANDARD model. Contact your dealer (or DEPURECO) for information regarding the various types of OPTIONALS that can be used on this specific model. The following operation must be carried out by a qualified electrician.
-
Page 23: Operation Section
4. OPERATION SECTION Description of the controls Attenzione! L'uso dell'aspiratore è permesso esclusivamente a personale autorizzato che abbia letto le presenti istruzioni d'uso e manutenzione. L'utilizzatore dell'apparecchio ed il tecnico manutentore che effettuano gli interventi ammessi sull'aspiratore, devono ricevere opportuna formazione, informazione e addestramento, come previsto dalle vigenti leggi sulla sicurezza del lavoro e utilizzare per le diverse operazioni, i dispositivi di protezione individuali (DPI) previsti, come ad esempio calzature di sicurezza, guanti, occhiali protettivi, maschera, ecc. -
Page 24: Operation Cycle
Operation cycle Ensure that the power cord is intact and in perfect state. Warning! Before inserting the plug, ensure that the voltage of the power supply line corresponds to that indicated on the vacuum's identification plate. Ensure that the power plug is inserted into the socket correctly. Make sure the flexible pipe is properly inserted and tightened in the special inlet. - Page 25 Caution! Before turning the vacuum cleaner on again, ensure that the pump has been stopped completely To move the vacuum cleaner use the special handles situated on the front part of the machine On the vacuum cleaner there is a vacuum gauge (2) which indicates vacuum value inside the vacuum cleaner.
-
Page 26: Filter Cleaning (Only On Xm 20T Jc)
Filter cleaning (only on XM 20T JC) To clean the filter cartridge, the vacuum cleaners belonging to the XM 20T family, in the "JC" model, are equipped with the JetClean® cleaning system. The system works due to the difference in pressure between the internal atmosphere and the external atmosphere leading to the dust becoming detached from the filtering fabric of the cartridge, without needing to switch the vacuum cleaner off. -
Page 27: Filter Cleaning (Only On Xm 20T)
Lower the shutter (detail no. 7, chap. 1.2) and resume normal use Warning! The JetClean® cleaning system only works with the vacuum cleaner switched on. Filter cleaning (only on XM 20T) To clean the filter proceed as instructed: Switch the vacuum off Wait for the pump to come to a complete stop Lift and then forcefully lower the lever to shake the internal filter Pag. 27 di 44... -
Page 28: Emptying The Container
Emptying the container Depending on the type and quantity of material being vacuumed, it is necessary to check periodically the dirt container to avoid filling it excessively. Proceed as follows to empty the container: Switch the machine off As previously mentioned, the vacuum cleaner can be locked using the brake positioned on the rotating wheel Unlock the container unhooking the special closing hooks Take the container out from below the filter chamber using the special handles... -
Page 29: Inserting And Locking The Bin
Inserting and locking the bin Follow the steps below to insert and lock the bin: Insert the container under the vacuum, aligning the closing hooks (A) with the corresponding parts (B) located on the filter chamber Lift the bin towards the chamber, and lock the closing hooks. If necessary get help from a second person Warning! Upper limb crushing hazard! Never insert your hands between the dirt container and the vacuum cleaner in the... -
Page 30: Maintenance Section
5. MAINTENANCE SECTION Warning! Special vacuum maintenance must be carried out solely by specialised technicians authorised by DEPURECO dealer. 5.1 Informative notes This section describes the checks and routine maintenance operations required to ensure proper vacuum operation. Maximum reliability and minimum maintenance costs are the result of a planned maintenance and inspection schedule carefully followed throughout the entire lifespan of the vacuum. -
Page 31: General Safety Regulations
5.2 General safety regulations Warning! All the operations described above must be carried out with the plug disconnected from the socket. Before starting any maintenance or cleaning operation, wear suitable PPE (protective clothing, goggles and/or gloves, etc.) according to the work to be done. Place a sign on the vacuum with the message: “MACHINE UNDER MAINTENANCE DO NOT START”... - Page 32 Check that the power cord and the plug are not damaged: replace them immediately if there are any signs of wear, using a cord of the same type (information c/o DEPURECO). This operation is the sole responsibility of an electrician.
-
Page 33: Filter Cartridge Replacement (Only On Xm 20T Jc)
Filter cartridge replacement (only on XM 20T JC) Warning! Wear appropriate PPE (dust mask, latex gloves, goggles, etc.). Proceed as follows to replace the filter: Switch the vacuum cleaner off Disconnect the vacuum cleaner from the electricity supply Unlock the closing hooks on both sides Remove the head Remove the HEPA Filter (if provided) With the help of a second person, hold the JetClean®... - Page 34 Unscrew the fastening bolts of the filter cartridge and pull it out from inside the filter chamber. Remove the filter, put it in a plastic bag, seal it and dispose of it according to the legislation in force regarding the type of material extracted To reassemble the filter, operate in reverse order: Insert the new filter to the filter chamber Tighten the cartridge fastening screws...
-
Page 35: Filter Replacement (Only On Xm 20T)
Filter replacement (only on XM 20T) Proceed as follows to replace the filter: Switch the vacuum off by positioning the main switch to "O" Disconnect the vacuum cleaner from the power socket Remove the container From the lower side of the filter chamber, release the clip and remove the retaining pin of the cage from the filter shaking lever Unlock on both sides the two closing hooks Pag. 35 di 44... - Page 36 Remove the vacuum cleaner’s head Remove the HEPA Filter (if provided) Remove the filter and place all components on a work bench Loosen the fastening clamp (H), remove the filter from its support and, using scissors, cut the lower belts that clamp it to the cage Remove the filter, put it in a plastic bag, seal it and dispose of it according to the legislation in force regarding the type of material extracted To reassemble the filter, operate in reverse order:...
-
Page 37: Hepa Cartridge Replacement (If Provided)
Place the vacuum cleaner head above the filter H strip and lock it with the special closing hooks connect the vacuum cleaner to the electricity supply turn on the vacuum cleaner, immediately assessing its normal operation EXCLUSIVELY USE FILTERS MANUFACTURED BY DEPURECO Pag. 37 di 44... -
Page 38: Troubleshooting
Check the condition of the plug No power supply The vacuum cleaner will and the power cable Switch not start Contact DEPURECO technical assistance Follow filter cleaning procedure. If this solution is not effective, Clogged filter replace it. Irregular vacuum values Clogged hose Check the hose and clean it. -
Page 39: Scrapping
Scrapping In case of scrapping, to avoid damage to the environment, all components of the vacuum cleaner, must be disposed of responsibly, in appropriate landfills, in compliance with current legislation - for Italy Legislative Decree no. 152/2006 and subsequent amendments. (subsequent modifications and additions). - Page 40 Pag. 40 di 44...
- Page 41 MAINTENANCE LOG: INTERVENTION 1: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 2: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...
- Page 42 INTERVENTION 3: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 4: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...
