This manual is an integral part of the vacuum.
Carefully read this manual and its attachments. Knowing the instructions
contained in it is crucial for using the vacuum and carrying out maintenance
operations under full safety conditions.
rev. 00 date 02
d
-12-2016
USE
AND
MAINTENANCE
MANUAL FOR
INDUSTRIAL
VACUUM
miniAIR
SERIES
Advertisement
Table of Contents
Related Manuals for DEPURECO miniAIR Series
Summary of Contents for DEPURECO miniAIR Series
- Page 1 00 date 02 -12-2016 Depureco Industrial Vacuums Srl Company subject to the management and co-ordination of COFISE spa Tax Number and VAT 02258610357...
-
Page 2: Table Of Contents
Replacing the filter ............................ 30 H filter (or HEPA filter) - ..........................33 Troubleshooting ............................34 Scrapping ..............................35 Depureco Industrial Vacuums Srl Company subject to the management and co-ordination of COFISE spa Tax Number and VAT 02258610357 Business Registry of Turin R.E.A. -
Page 3: Information Section
IMPORTANT - The DEPURECO name and logo used in this document refer to and belong to DEPURECO INDUSTRIAL VACUUMS S.r.l. This document is the exclusive property of DEPURECO S.r.l. Therefore it may not be reproduced either partially or totally by any means (graphic, computer, etc.), without the Company's authorisation. - Page 4 This manual is integral part of the vacuum and must accompany it at all times, until its demolition. In the event it is lost or damaged, you can request another copy from DEPURECO INDUSTRIAL VACUUMS S.r.l. (hereafter simply called DEPURECO).
-
Page 5: Identification Of The Main Parts

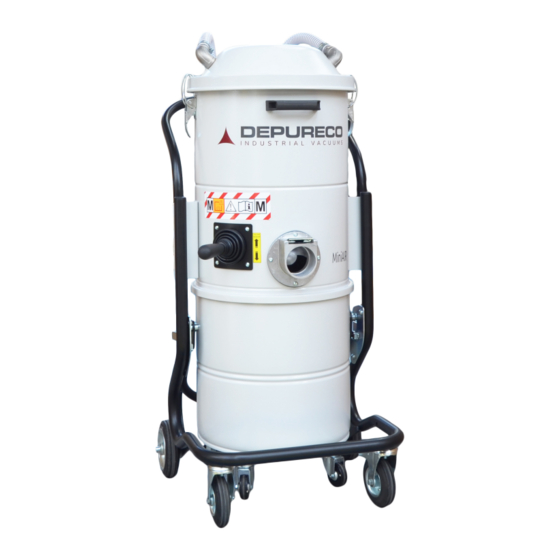

Identification of the main parts GRIP FOR HANDLING FILTER CHAMBER FILTER SHAKING LEVER COLLECTION CONTAINER FOR EXTRACTED MATERIAL SUCTION NOZZLE CONTAINER RELEASE LEVER ACCESSORY HOLDER... -
Page 6: Optional Parts
VALVE COMPRESSED AIR CONNECTION Optional parts DEPURECO provides a wide range of optional accessories, according to the application of the vacuum. Manufacturer's identification data DEPURECO INDUSTRIAL VACUUMS S.r.l. Corso Europa 609 - 10088 Volpiano (TO) – ITALY Tel. +39 011 98 59 117... -
Page 7: Identification Plate
Identification plate The data on the vacuum identification plate must be referred to in any communication with the manufacturer or the dealer. Intended use This model has been designed, manufactured and protected solely for professional industrial extraction of non-flammable and non-toxic wet and/or dry dust and shavings. Any other use is considered IMPROPER. Allowed environmental conditions To ensure proper operation, the vacuum must be protected from weather agents (Rain, hail, snow, fog, suspended powders, etc.) at a room temperature ranging between 5 and 45 °C and a humidity below 70%. -
Page 8: Technical Data
Technical data U.M. MiniAir Weight (*) Overall dimensions (*) 55x62x115 Compressed Supply voltage Requested Bars Maximum negative pressure mbar Air flow rate m³/h Main filter surface area HEPA filter surface area Noise level dB(A) Maximum capacity Vacuum inlet diameter (*) without packaging... -
Page 9: Warranty
DEPURECO shall not be held liable for any injuries to persons or damage to objects caused by misuse or improper use of the vacuum. -
Page 10: Safety Section
Adequate training is crucial to this end. DEPURECO shall not be held liable for accidents or damage due to the improper use of the vacuum by untrained personnel or to failure to comply, even partially, with the occupational safety standards and intervention procedures contained in this manual. -
Page 11: Safety Requirements
Safety requirements Attention! The indications below are important to prevent hazards that can occur while operating the vacuum. However, they cannot replace the expertise and common sense of the operators as an overall framework for accident prevention. Every section lists further safety requirements specific for the various operations. -
Page 12: Safety Plates And Symbols
• In the event that the Customer installs a tool not supplied by DEPURECO on the vacuum, it is essential to verify that the safety requirements of Machinery Directive 2006/42/CE are met, notwithstanding that DEPURECO shall not be held liable for problems caused by the use of that part. - Page 13 Attention! Upper limb crushing hazard while inserting and locking the refuse container in place under the vacuum. Never place your hands between the vacuum and the refuse container while inserting and locking the refuse container in place under the vacuum. Lock the container in place by means of the dedicated lever, using BOTH HANDS.
-
Page 14: Residual Risks
Attention! It is strictly prohibited to remove the safety plates from the vacuum and/or its components and packaging. DEPURECO shall not be held liable for the vacuum's safety in the event of failure to comply with this prohibition. Applied directives... -
Page 15: Handling, Unpacking And Installation Section
HANDLING, UNPACKING AND INSTALLATION SECTION Handling Attention! The instructions for transporting and unpacking the vacuum correctly are shown on the packaging. The instructions below also include the operations to be carried out in the event that the vacuum must be packed or unpacked again for subsequent transport. - Page 16 with a screwdriver remove the staples that secure the cardboard packaging to the pallet completely remove the cardboard loosen and remove the fastening screws and brackets from both sides...
- Page 17 The cardboard packaging is recyclable and should be collected separately to prevent environmental impact. Attention! Keep the pallet and the fastening brackets. For any future transport, the vacuum will need to be anchored to the pallet again using the same fastening system.
-
Page 18: Installation
In the event that one or more components are damaged, do not continue with installation and inform DEPURECO about the anomaly and agree upon the actions to be taken. - Page 19 Note: the hose with its terminals and the suction accessories are not included as STANDARD. Contact your dealer (or DEPURECO) for information regarding the various types of OPTIONAL that can be used on this specific model. Contact your dealer for information regarding the various types of OPTIONAL that can be used on this specific model.
-
Page 20: Operation Section
OPERATION SECTION Description of the controls COMPRESSED AIR FLOW CONTROL FILTER OPEN CLOSE VALVE FOR Attention! It is forbidden to allow staff that is not authorised or that has not read the use and maintenance manual, to use the vacuum. The operators and maintenance technicians performing authorised activities on the vacuum must receive suitable instructions on the use of personal protective equipment such as shoes, gloves and mask, which allow them to eliminate all of the risks deriving from performing the... -
Page 21: Operating Cycle
Operating cycle Ensure that the compressed air supply pipe is fitted correctly onto the machine's inlet valve. Ensure that the hose is inserted properly and locked into the suction inlet. Ensure that the refuse collection container is properly locked to the vacuum. Block the vacuum using the lever on the swivel caster, as shown in the figure. -
Page 22: Filter Cleaning
Filter cleaning lift and then lower the lever energetically to shake the internal filter. Warning! Do not, under any circumstance, use the machine with a clogged filter. Attention! If the vacuum is not working properly after the filter has been cleaned, it may be that the filter is clogged and needs to be changed. -
Page 23: Emptying The Refuse Container
Emptying the refuse container Attention! Wear PPE (gloves, dust mask, goggles, etc.) during this operation According to the amount and type of extracted material, it is important to periodically verify the refuse container, preventing it from filling up excessively. To empty the container: turn off the machine as previously mentioned, the vacuum is locked by the lever located on the swivel caster unlock the container by lifting the lever... - Page 24 remove the container from the vacuum, using the handle empty the vacuum container in the dedicated container and dispose of it in compliance with the standards in force in the country of use Attention! If the container weighs over 15 Kg, have somebody help you. Attention! Waste must be disposed of in compliance with the standards in force in the country of use –...
-
Page 25: Inserting And Locking The Refuse Container
Inserting and locking the refuse container Place the container under the vacuum, holding the lever raised, until it stops against the stop fully lower the lever that locks the container using both hands. Attention! Upper limb crushing hazard! Do not, under any circumstance, place your hands between the container and the vacuum while locking it. -
Page 26: Maintenance Section
MAINTENANCE SECTION Attention! Special vacuum maintenance must be carried out solely by specialised technicians authorised by the DEPURECO dealer. Information notes This section describes the verifications and routine maintenance operations required to ensure proper vacuum operation. Maximum reliability and minimum maintenance costs are the result of a planned maintenance and inspection schedule carefully followed throughout the entire lifespan of the vacuum. -
Page 27: General Safety Regulations
General safety regulations Maintenance operations must be carried out by trained technicians specialised in the following sectors: • Mechanical maintenance It is the Safety Manager's duty to ensure the professionalism and skills of these technicians. Keep unauthorised personnel out of the work area. Ensure that the necessary tools are in good conditions and readily available to the maintenance technician. - Page 28 Attention! All of the described operations must be carried out with the pneumatic power supply disconnected. Before starting any maintenance or cleaning operation, wear suitable protective clothing, goggles and/or gloves, according to the work to be done. Before starting any maintenance procedure on the vacuum, put up a sign saying: MACHINE UNDER MAINTENANCE DO NOT TURN ON THE PNEUMATIC POWER SUPPLY Before resuming operation, verify the entire system according to start-up procedures.
-
Page 29: Replacing The Filter
Replacing the filter To replace the filter, proceed as follows: turn off the machine disconnect the vacuum from electric power supply remove the container as described at point 4.3 from the bottom of the filter chamber, release the clip and remove the cage filter securing pin to the filter shaker lever Attention! Wear appropriate PPE (dust mask, latex gloves, goggles, etc.). - Page 30 remove the fastening clamp (H); detach the filter from its support and use a pair of scissors to cut the lower wires that lock it to the shaker cage. remove the filter, place it inside a plastic bag, close it and dispose of it in compliance with the laws in force for the extracted material.
- Page 31 (possibly after adding the band with the HEPA filter) lock the two fastening latches (C) connect the power supply turn the vacuum on, checking its operation. USE ONLY GENUINE DEPURECO FILTERS...
-
Page 32: H Filter (Or Hepa Filter)
Remove the filter, place it inside a plastic bag, close it and dispose of it in compliance with the laws in force for the extracted material. Install the new filter and lock all with the (A) previously removed screw. USE ONLY GENUINE DEPURECO FILTERS... -
Page 33: Troubleshooting
Check the integrity of the supply pipe. The vacuum does not - No power supply start up Open the compressed air valve on the machine Contact the DEPURECO technical service centre Shake the filter. Should this not be enough, - Clogged filter replace it. Irregular Extraction - Clogged suction hose Check the suction hose and clean it. -
Page 34: Scrapping
5 6 . Scrapping To prevent damaging the environment in the event of scrapping, all the components of the vacuum must be disposed of responsibly in suitable landfills and in compliance with the standards in force - for Italy, Legislative Decree 152/2006 and subsequent amendments and additions. - Page 35 MAINTENANCE LOG INTERVENTION 1 Date Technical Assistance Type of intervention Signature Depureco Industrial Vacuums Srl Company subject to the management and co-ordination of COFISE spa Tax Number and VAT 02258610357 Business Registry of Turin R.E.A. TO - 1149668 Share Capital:...
- Page 36 INTERVENTION 2 Date Technical Assistance Type of intervention Signature MAINTENANCE LOG Depureco Industrial Vacuums Srl Company subject to the management and co-ordination of COFISE spa Tax Number and VAT 02258610357 Business Registry of Turin R.E.A. TO - 1149668 Share Capital:...
- Page 37 INTERVENTION 3 Date Technical Assistance Type of intervention Signature Depureco Industrial Vacuums Srl Company subject to the management and co-ordination of COFISE spa Tax Number and VAT 02258610357 Business Registry of Turin R.E.A. TO - 1149668 Share Capital: € 25,000 fully paid...
- Page 38 INTERVENTION 4 Date Technical Assistance Type of intervention Signature Depureco Industrial Vacuums Srl Company subject to the management and co-ordination of COFISE spa Tax Number and VAT 02258610357 Business Registry of Turin R.E.A. TO - 1149668 Share Capital: € 25,000 fully paid...
