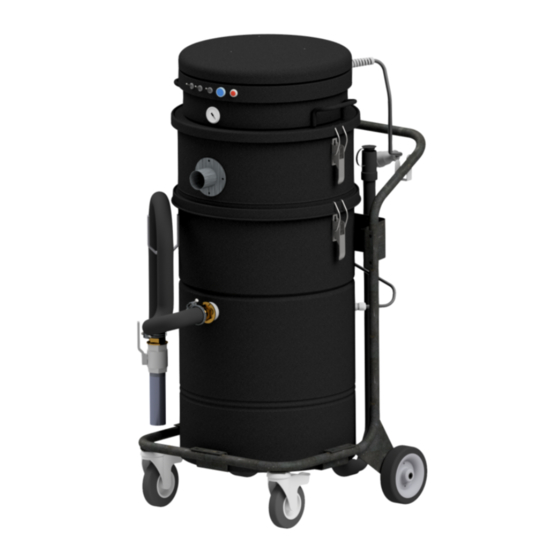

USER'S MANUAL AND
MAINTENANCE
M70 OIL
TRANSLATION FROM ORIGINAL INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M70 OIL and is the answer not in the manual?

Questions and answers

Related Manuals for DEPURECO M70 OIL

Summary of Contents for DEPURECO M70 OIL

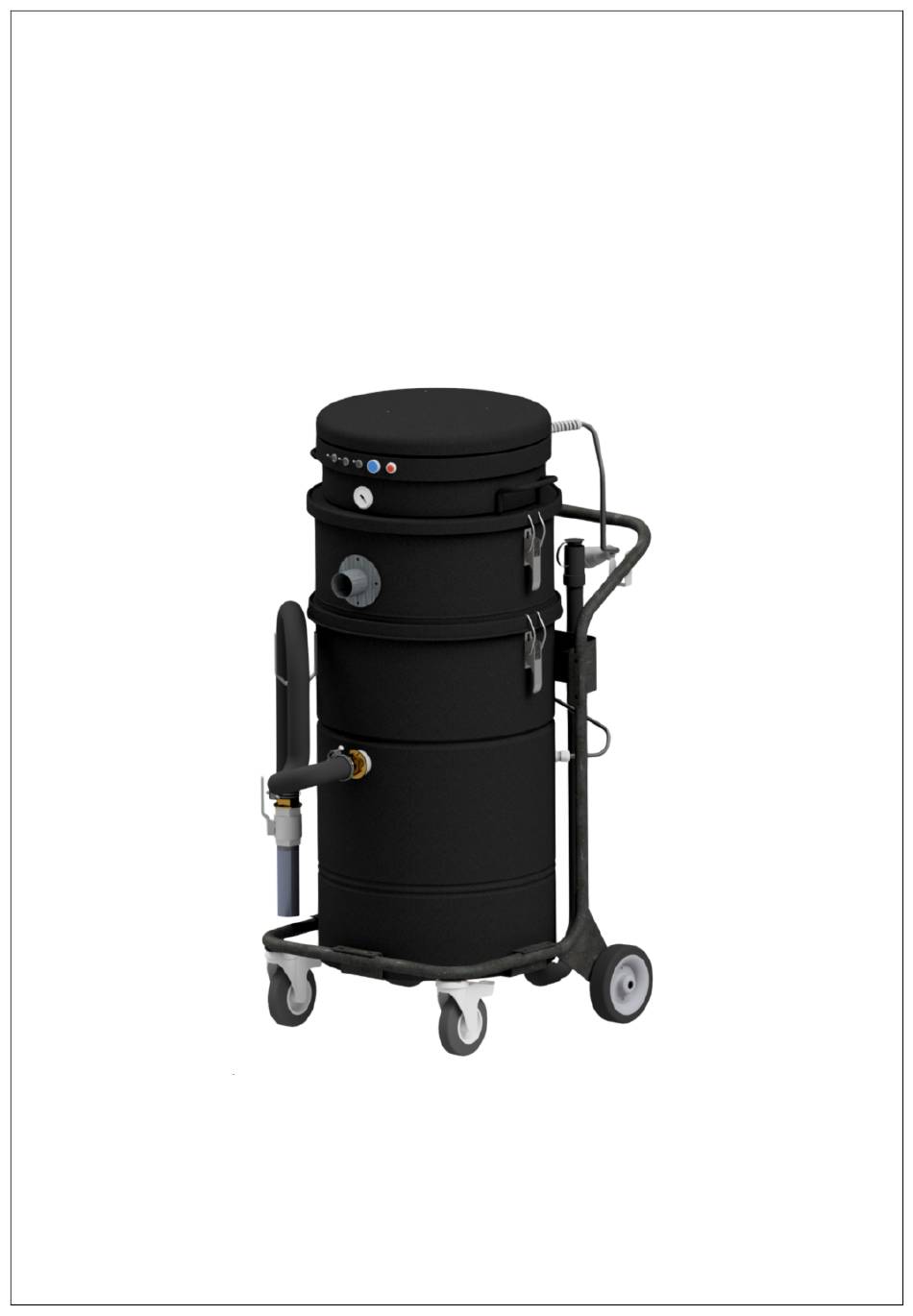

  • Page 1 USER'S MANUAL AND MAINTENANCE M70 OIL TRANSLATION FROM ORIGINAL INSTRUCTIONS...

  • Page 3: Table Of Contents

    INDICE INFORMATIVE SECTION ......................... 7 Preface ............................. 7 IDENTIFICATION OF THE MAIN PARTS ................... 10 Optional parts ..........................11 Manufacturer’s identification data ....................11 Identification plate ........................11 Intended uses ..........................12 Permitted environmental conditions .................... 12 Noise level ............................. 13 Technical data ..........................
  • Page 4 Informative notes .......................... 35 General safety standards ....................... 36 CLEANING AND REPLACEMENT OF OLEOPHOBIC FILTER .............. 38 CONTAINER EMPTYING AND CLEANING ..................39 IN CASE OF MALFUNCTION ......................41 Scrapping ............................42 INTERVENTION 1: DATE: ........................... 43 INTERVENTION 2: DATE: ........................... 44 INTERVENTION 3: DATE: ...........................
  • Page 5 DECLARATION OF CONFORMITY The manufacturing company: DEPURECO INDUSTRIAL VACUUMS S.r.l. – Via Venezia, 32 – 10088 Volpiano (TO) – ITALIA | Tel. +39 011 98 59 117 – Fax + 39 011 98 59 326 – C.F. | P.IVA 02258610357 e-mail: depureco@depureco.com –...

  • Page 7: Informative Section

    1.1 P REFACE Dear Customer We thank you for preferring DEPURECO and congratulate you for choosing a DEPURECO M70 OIL series vacuum cleaner. We have prepared this manual to enable you to fully appreciate the quality of this machine. We recommend that you read it in its entirety before you approach its use for the first time.
  • Page 8 In case of loss or damage, a replacement copy should be requested from DEPURECO INDUSTRIAL VACUUMS S.r.l. (hereafter referred to simply as DEPURECO). The technical information contained in this manual is the property of DEPURECO and must be considered confidential in nature.
  • Page 9 In relation to Regulation 1907/2006/EC (REACH), DEPURECO declares that its products do not contain any of the substances, so-called substances of very high concern - SVHC i.e. Substances of Very High Concern - listed in the Candidate List. This manual should be kept in a place accessible to all personnel responsible for the operation and maintenance of the vacuum cleaner.

  • Page 10: Identification Of The Main Parts

    1.2 IDENTIFICATION OF THE MAIN PARTS Collection container Level indicator Filter chamber Detachable socket and plug Filter or oleophobic cartridge Drain hose (manual discharge) Vacuum head Drain pump (where applicable) Chassis Exhaust pipe (where applicable) Collection basket Discharge pump valve (where applicable) Suction nozzle (material inlet) Hook for exhaust pipe (where provided)

  • Page 11: Optional Parts

    Depending on the application of the vacuum cleaner, a wide range of other optional accessories is available from DEPURECO. 1.4 M ’ ANUFACTURER S IDENTIFICATION DATA DEPURECO INDUSTRIAL VACUUMS S.r.l. Via Venezia, 32 - 10088 Volpiano (TO) - ITALIA tel. +39 011 98 59 117 fax +39 011 98 59 326 e-mail: depureco@depureco.com website: www.depureco.com...

  • Page 12: Intended Uses

    1.6 I NTENDED USES These vacuum cleaners are constructed and designed in accordance with Directive 2006/42/EC (Machinery Directive) for professional industrial use only; however, for purposes other than normal domestic use. This model of vacuum cleaner is designed, constructed and protected for the exclusive professional industrial use of vacuuming dry and/or wet, non-flammable and non-harmful dust and chips.

  • Page 13: Noise Level

    1.8 N OISE LEVEL Phonometric tests carried out on this specific vacuum cleaner model show a sound pressure level of M70 OIL 70 dB(A) Caution. For sound pressure levels above 85 dB(A), workers exposed to must be protected by appropriate personal protective equipment (PPE), such as approved individual hearing protectors.

  • Page 14: Technical Data

    1.9 T ECHNICAL DATA Features Units M70 OIL Weight * Overall dimensions ** 565X770 L x P Dimensioni di ingombro ** 1210 Supply voltage V - Hz 400 – 50/60 Power 2,3 / 3,5 kW - HP Maximum vacuum mbar Air flow rate m³/h...

  • Page 15: Warranty

    1.10 W ARRANTY DEPURECO guarantees this vacuum cleaner model for a period of 12 months from the date of purchase, indicated on the fiscal document when the product is delivered. The warranty shall be void if the vacuum cleaner has been repaired by unauthorized third parties or if equipment, accessories or components not supplied or authorized by DEPURECO or for which the serial number is found to have been removed (during the warranty period) are used.
  • Page 16 To take advantage of the warranty, you must photocopy the appropriate form located on the last page of this manual, fill it in completely (preferably in block letters), and fax it to DEPURECO at +39 011 9859 326...

  • Page 17: Safety Section

    Proper training is a prerequisite for this. Under no circumstances can DEPURECO be held responsible for accidents or damage resulting from the use of the vacuum cleaner by personnel who have not been adequately trained or who have misused it, as well as from failure to comply, even partially, with the accident prevention regulations and intervention procedures contained in this manual.
  • Page 18 In the event that tools, procedures, working methods or techniques are used, which are not explicitly provided for by DEPURECO, it will be necessary to ascertain in advance, that there are no dangers to oneself and others, with DEPURECO's responsibility...

  • Page 19: Safety Prescriptions

    2.2 S AFETY PRESCRIPTIONS Caution! The directions below play an important role in completely preserving you from all the hazards you may incur when operating the vacuum cleaner. However, they cannot be divorced from the skill and common sense of the operator as an overall framework for careful accident prevention.
  • Page 20 • In case the Customer installs on the vacuum cleaner a tool not supplied by DEPURECO, it is necessary to verify that the safety conditions, required by the Machinery Directive 2006/42/CE, are maintained and in any case DEPURECO does not take responsibility for any inconvenience resulting from the use of such part.

  • Page 21: Safety Plates And Symbols

    Clean them using a cloth, soap and water. Do not use solvents, naphtha or gasoline. Replace damaged nameplates by requesting them from DEPURECO. If a nameplate is on a part that is being replaced, make sure that a new nameplate is applied to the new piece a new nameplate is attached.

  • Page 22: Residual Risks

    Comply with the limits given in this manual in Section 1.5 "Allowable Environmental Conditions." Risk of misinterpretation of safety pictograms With reference to the analysis of hazards and their identification, DEPURECO has installed hazard labels on the vacuum cleaner taken from the regulations on graphic symbols.

  • Page 23: Applied Directives

    2014/30/EU Electromagnetic Compatibility Directive • 2011/65/EU - ROHS Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment. Regulatory references, including mandatory requirements, are managed in the Quality Management System and archived at DEPURECO.

  • Page 24: Handling, Unpacking And Installation Section

    3 HANDLING, UNPACKING AND INSTALLATION SECTION 3.1 H ANDLING Caution. Instructions for proper transport and unpacking of the vacuum cleaner are given also on the packaging. The following instructions also indicate the steps to be taken if the vacuum cleaner needs to be repacked or unpacked for later transport.
  • Page 25 • Using a screwdriver, remove the points that secure the cardboard packaging to the pallet (where provided) • Completely slide out the cardboard (where provided) Cardboard packaging is recyclable, and in order not to create environmental impacts, it is recommended that it be given to separate collection.

  • Page 26: Installation

    In the event that one or more components are damaged, it is essential not to proceed further with the installation and report the anomaly found to DEPURECO, agreeing with it on the action to be taken. insert from the opposite side of the hose the desired accessory for the type of suction Note: The hose with its terminals and suction accessories are not included in the STANDARD equipment.
  • Page 27 The power outlet to power the vacuum cleaner must be protected by a CE-compliant mains disconnect switch. Finally, insert the plug (not standard equipment) into the power outlet. Caution! Do not insert the plug into the outlet with wet hands. The use of extension cords is not allowed.

  • Page 28: Operation Section

    4 OPERATION SECTION 4.1 C OMMAND DESCRIPTION Caution! Only authorized personnel who have read these operating and maintenance instructions are allowed to use the vacuum cleaner. The user of the equipment and the maintenance technician who carry out permissible work on the vacuum cleaner must receive appropriate education, information and training, as required by current labor safety laws, and use for the various operations, the prescribed personal protective equipment (PPE), such as safety footwear, gloves, goggles, mask, etc.

  • Page 29: Work Cycle

    Do not move the vacuum cleaner when it is in operation. For suction of liquids, proceed as follows: • Use the appropriate hose, equipped with the original Depureco accessories, to start suction; • Make sure that the hose for manual discharge (detail #10, par. 1.2) is closed with the appropriate...
  • Page 30 Caution! Make sure the cap is tightly closed, an incomplete closure could cause liquid leakage during normal use • For versions with a discharge pump, make sure the discharge valve located at the end of the discharge pipe (details #12-13, Sec. 1.2) is in the closed position (see image below) •...
  • Page 31 Warning! Before starting the vacuum cleaner again, make sure the motors have stopped completely. During suction, when the maximum level of sucked liquid is reached, the machine will automatically stop suction, as a result, it will be necessary to proceed with the ejection of the liquid from the container. The interruption of suction is indicated by the illumination of the red light "2"...
  • Page 32 Depending on the version you have (aspirator with or without discharge pump), you can discharge liquids from the container in two different ways: • Manual discharge through special hose attached to the bottom of the container • Discharge with dedicated discharge pump positioned inside the container In the case of discharge pump version, for liquid ejection, proceed as follows: •...
  • Page 33 For both versions (with and without a drain pump), to proceed with complete emptying of residual liquids from the container, use the manual drain hose attached to the bottom of the container. NOTE Emptying through the hose attached to the bottom of the container represents the allowable mode for draining liquids from the container for the version without a drain pump.

  • Page 34: Emptying Solid Waste Container

    4.3 EMPTYING SOLID WASTE CONTAINER To proceed with emptying the container of solid waste, make sure the machine is not running and proceed as follows: • Remove plug "A" from detachable socket "B" located on frame "5"; • NOTE The red indicator light "2" will light up. •...

  • Page 35: Storage - Decommissioning

    5 MAINTENANCE SECTION Caution! Extraordinary maintenance of the vacuum cleaner must be carried out only by specialized technicians recognized by the DEPURECO dealer. 5.1 I NFORMATIVE NOTES This section describes the routine inspection and maintenance operations that are essential to ensure the smooth operation of the vacuum cleaner.

  • Page 36: General Safety Standards

    measures include decontamination before disassembly, measures for filtered forced ventilation of the room where the unit is disassembled, cleaning of the maintenance area, and suitable personal protective equipment. The manufacturer or qualified person should perform, at least once a quarter (or more frequently depending on the work cycle and conditions of use), an inspection to the filters checking that they are not damaged, also check the proper functioning of the control devices.
  • Page 37 It is the specific duty of the Safety Manager to ensure the professionalism and competence of the above persons. Before starting a maintenance task, the Safety Officer must: Have the work area cleared of outsiders. F Ensure that the necessary tools are within reach of the maintainer and are in good condition.

  • Page 38: Cleaning And Replacement Of Oleophobic Filter

    Before each work shift Check that the power cord and plug are not damaged: replace it immediately if it shows signs of wear and tear, using a cord of the same type (information c/o DEPURECO) operation the sole responsibility of an electrician.

  • Page 39: Container Emptying And Cleaning

    5.4 CONTAINER EMPTYING AND CLEANING To totally empty the container of liquid and solid residue, as mentioned in Sec.4.2 and 4.3, proceed as follows: • Turn off the machine; • Disconnect the vacuum cleaner from the power supply; • With manual discharge, perform complete evacuation of liquids through the hose attached to the bottom of the container (see par.
  • Page 40 Working Date of replacement Cartridge code Quantity hours Filter replacement control chart USE ONLY ORIGINAL DEPURECO FILTERS...

  • Page 41: In Case Of Malfunction

    Irregular suction - Clogged suction pipe - Check the suction pipe and clean it. Irregular or absent liquid - Faulty liquid ejector pump - Contact DEPURECO Technical Support. expulsion - Faulty pump - Contact DEPURECO Technical Support. Excessively noisy engine...

  • Page 42: Scrapping

    5.6 S CRAPPING This product falls under the scope of Directive 2012/19/EU re and electronic equipment (WEEE). The equipment should not be disposed of with d waste can be recycled at the appropriate facilities. Inform yourself through the aut ecological platforms suitable to receive the product for disposal and its equivalent equipment purchase s, the distributor is required to take back free potentially hazardous to human health and the environment, not containing so abandoned in the environment negatively impacts...

  • Page 43: Intervention 1: Date

    MAINTENANCE ACTION LOG: INTERVENTION 1: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...

  • Page 44: Intervention 2: Date

    MAINTENANCE ACTION LOG: INTERVENTION 2: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...

  • Page 45: Intervention 3: Date

    MAINTENANCE ACTION LOG: INTERVENTION 3: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...
