DEPURECO INDUSTRIAL VACUUMS S.r.l. - Via Perosi, 3 - 10040 Volvera (TO) - ITALY
tel. +39 011 98 59 117 - fax +39 011 98 59 326 - e-mail
www.depureco.com
This manual is an integral part of the vacuum.
Carefully read this manual and its attachments. Knowing the instructions contained in it is
crucial for using the vacuum and carry out maintenance operations under full safety
conditions.
INCLUDES CE DECLARATION OF CONFORMITY
- Tax Code and VAT No. 02258610357
Single document of 46 pages.
Controlled Air Design
sales@controlledairdesign.com
www.controlledairdesign.com
(919)607-6765
depureco@depureco.com
rev. A dated 14 December 2011
Advertisement
Table of Contents
Related Manuals for DEPURECO FOX Series
Summary of Contents for DEPURECO FOX Series

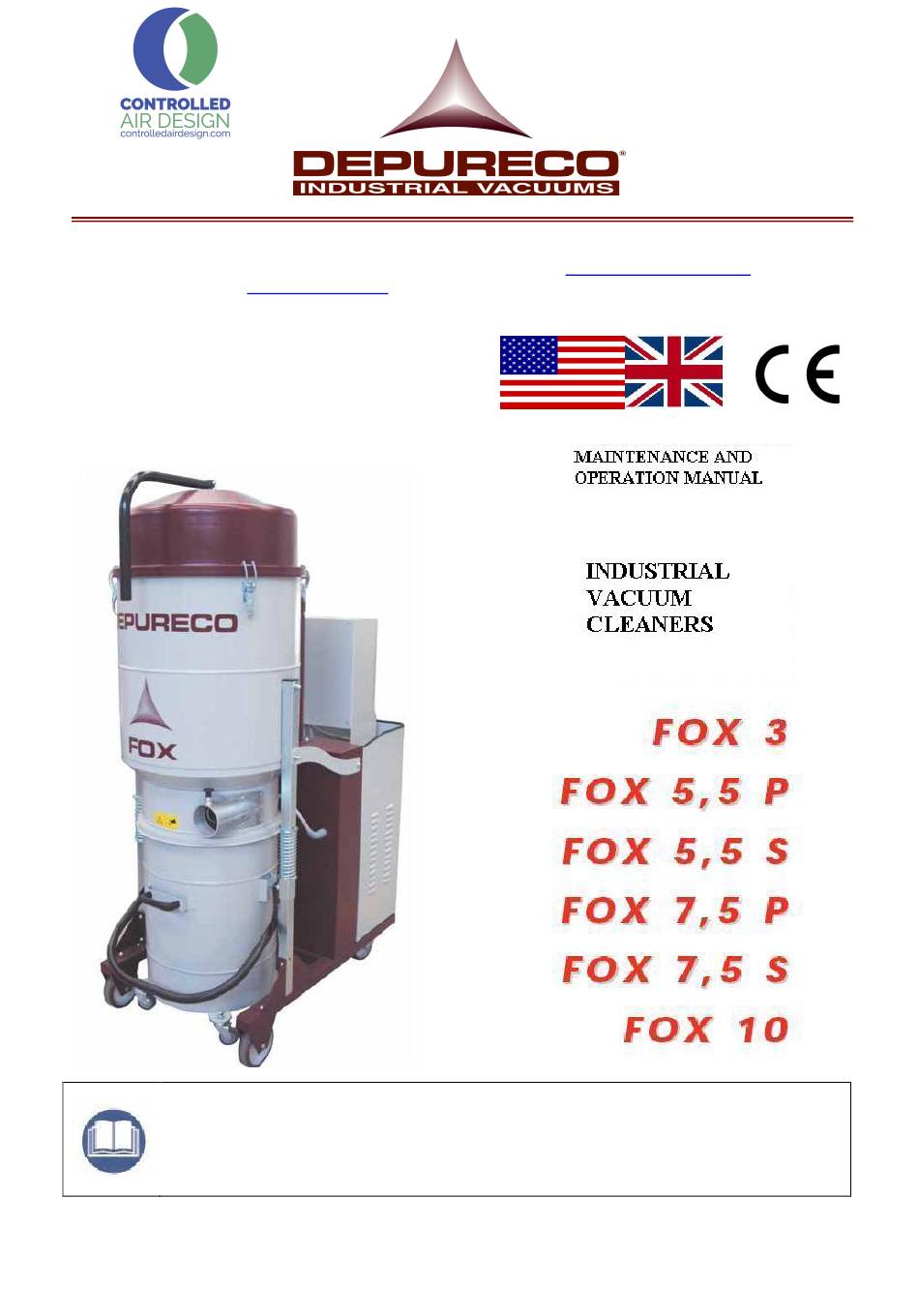

- Page 1 Controlled Air Design sales@controlledairdesign.com www.controlledairdesign.com (919)607-6765 DEPURECO INDUSTRIAL VACUUMS S.r.l. - Via Perosi, 3 - 10040 Volvera (TO) - ITALY tel. +39 011 98 59 117 - fax +39 011 98 59 326 - e-mail depureco@depureco.com www.depureco.com - Tax Code and VAT No. 02258610357 This manual is an integral part of the vacuum.
- Page 2 CE DECLARATION OF CONFORMITY (for machines not included in Annex IV) The Manufacturer DEPURECO INDUSTRIAL VACUUMS S.r.l. - Via Perosi, 3 - 10040 Volvera (TO) - ITALY tel. +39 011 98 59 117 - fax +39 011 98 59 326 - e-mail depureco@depureco.com www.depureco.com...
-
Page 3: Table Of Contents
Wear materials ……...…………………………………………………………………... Scrapping …..………………………………………………………………………….. IMPORTANT - The DEPURECO name and logo used in this document refer to and are property of DEPURECO INDUSTRIAL VACUUMS S.r.l. This document is exclusive property of DEPURECO S.r.l. Full or partial reproduction by any means (graphic, electronic, etc.) is prohibited without prior authorisation by the Company Management. -
Page 4: Informative Section
Preface Dear Customer Congratulations on purchasing a FOX series DEPURECO vacuum. Thank you for choosing us. We have prepared this manual to allow you to fully appreciate the qualities of this machine. We recommend reading it carefully before using it for the first time. - Page 5 This manual is integral part of the vacuum and must accompany it at all times, until its demolition. In the event it is lost or damaged, you can request another copy from DEPURECO INDUSTRIAL VACUUMS S.r.l. (hereafter simply called DEPURECO).
-
Page 6: Identification Of The Main Parts
Filter shaker knob Filter chamber Extracted refuse container Refuse container locking/release lever Suction hose inlet Fixed casters carry handles Swivel casters with brake Accessory container Electrical / control panel (FOX 10) FOX series Manual rev. A page 6 of 46... -
Page 7: Options
INDUSTRIAL VACUUMS FOX Series USE AND MAINTENANCE MANUAL Options DEPURECO provides a wide range of optional accessories, according to the application of the vacuum. Manufacturer's identification data DEPURECO INDUSTRIAL VACUUMS S.r.l. Via Perosi, 3 - 10040 Volvera (TO) - ITALY tel. -
Page 8: Identification Plate
This model has been designed, manufactured and protected solely for professional industrial extraction of non-flammable and non-toxic dry dust. For hazardous Zone 22 dusts, request the B1 version from DEPURECO. If equipped with a special filter and float, the vacuum can also be used to extract non-flammable and non- corrosive liquids. -
Page 9: Technical Data
Noise level dB-A Container capacity l/Gal 100/27 100/27 100/27 100/27 Vacuum inlet diameter mm/Inc 80/3,15 80/3,15 80/3,15 80/3,15 * 500 V upon request (*) without packaging - packaging weight = 18 Kg FOX series Manual rev. A page 9 of 46... -
Page 10: Warranty
DEPURECO shall not be held liable for any injuries to persons or damage to objects caused by misuse or improper use of the vacuum. -
Page 11: Safety Section
Adequate training is crucial to this end. DEPURECO shall not be held liable for accidents or damage due to the improper use of the vacuum by untrained personnel or to failure to comply, even partially, with the occupational safety standards and intervention procedures contained in this manual. -
Page 12: Safety Requirements
• Ensure that all the guards and protection devices are in place and that all the safety devices are properly installed and efficient. • Do not use the vacuum on sloping or uneven floors. FOX series Manual rev. A page 12 of 46... -
Page 13: Safety Plates And Symbols
• In the event that the Customer installs a tool not supplied by DEPURECO on the vacuum, is is essential to verify that the safety requirements of Machinery Directive 2006/42/EC are met, notwithstanding that DEPURECO shall not be held liable for problems caused by the use of that part. - Page 14 Ensure that all safety messages are perfectly legible. Clean using them a cloth with water and soap. Do not use solvents, naphtha or petrol. Replace damaged plates requesting them from DEPURECO. In the event that a plate is located on a piece that is replaced, ensure that a new plate is affixed to the new piece.
- Page 15 USE AND MAINTENANCE MANUAL Attention! Carefully read this use and maintenance manual before using the vacuum or carrying out maintenance interventions. Attention! Carefully read instructions packaging before handling and unpacking the vacuum. FOX series Manual rev. A page 15 of 46...
-
Page 16: Residual Risks
USE AND MAINTENANCE MANUAL Residual risks The accurate risk analysis carried out by DEPURECO (archived in the technical file) has allowed eliminating the main risks related to the conditions of use of the vacuum. DEPURECO recommends complying with the instructions, procedures and recommendations in this manual and with the safety standards in force. -
Page 17: Handling, Unpacking And Installation Section
Dimensions of the packed vacuum. The vacuum must be lifted and handled only using a forklift whose load bearing capacity is suited to the weight. FOX series Manual rev. A page 17 of 46... -
Page 18: Unpacking
Before starting any movement, ensure that the area is cleared and that there are no moving objects on the packaging. For lifting and handling operations, comply with the occupational safety standards in force and with the normal forklift driving instructions. Unpacking FOX series Manual rev. A page 18 of 46... -
Page 19: Installation
In the event of subsequent transport, the vacuum must be secured to the pallet using the same fastening system. Installation Warning! Before installing the vacuum, it is important to carry out a thorough preventive visual inspection to identify any damage occurred during transport. FOX series Manual rev. A page 19 of 46... - Page 20 - Lift the knob (A) and insert the hose equipped with end fitting in the suction inlet, releasing the knob. Contact your dealer (or DEPURECO) for information regarding the various types of OPTIONAL that can be used on this specific model.
- Page 21 The required pneumatic supply is max. 5 bar. To ensure proper operation, the air introduced into the vacuum must be dehumidified. If necessary, contact the DEPURECO customer service for further information. FOX series Manual rev. A page 21 of 46...
-
Page 22: Operation Section
1 = ON-OFF switch 2 = Vacuum meter: indicates suction filter clogging 3 = Manual knob (filter shaker) 4 = manual/automatic Compressed Air Filter Cleaning selector FOX series Manual rev. A page 22 of 46... -
Page 23: Operating Cycle
Ensure that the power plug is inserted correctly into the socket. Ensure that the hose is inserted properly and locked into the suction inlet. Ensure that the refuse collection container is properly locked to the vacuum. FOX series Manual rev. A page 23 of 46... - Page 24 “0”, unplug it and reverse the pins on the plug using the dedicated inverter (not valid for FOX 10). The rotation direction must be that indicated by the arrow in the figure. Warning! Before turning the vacuum on again, ensure that the pump has fully stopped. FOX series Manual rev. A page 24 of 46...
- Page 25 In this case, stop the machine and shake the filter. Model Clogged filter value FOX 3 - 0.23 bar - 23 kPa FOX 5,5 P - 0.36 bar - 36 kPa FOX series Manual rev. A page 25 of 46...
- Page 26 - lower the lever that locks the knob located on the upper cover. lift and lower the lever energetically to shake the internal filter. - lock the knob again, lifting the lever and continue vacuuming. FOX series Manual rev. A page 26 of 46...
- Page 27 Shake the filter by moving the lever energetically to the right and to left, as shown in the figure Attention! If the vacuum is not working properly after having cleaned the filter, it can mean that the filter is clogged and needs to be replaced. FOX series Manual rev. A page 27 of 46...
-
Page 28: Emptying The Refuse Container
Ø as previously mentioned, the vacuum is locked by the lever located on the swivel caster Ø unlock the container by lifting the lever Ø remove the container from the vacuum, using the handle FOX series Manual rev. A page 28 of 46... - Page 29 – for Italy with Legislative Decree 152/2006 and subsequent amendments and additions. In the event of use with class M and H dusts, these must be conveyed to a special plastic bag. FOX series Manual rev. A page 29 of 46...
-
Page 30: Inserting And Locking The Refuse Container
Remove the filter and clean it; empty the refuse collection container and store the vacuum in a place protected against weather agents with the temperature ranging between 0 and 40 °C and cover it with a nylon tarp to protect it against dust. FOX series Manual rev. A page 30 of 46... -
Page 31: Maintenance Section
Should maintenance operations or repairs be carried out, all contaminated objects must be adequately cleaned, placed in waterproof bags and disposed of in compliance with the standards in force. FOX series Manual rev. A page 31 of 46... -
Page 32: General Safety Regulations
Italian Legislative Decree 81/08, the maintenance technician must keep a safety distance, have the emergency stop buttons at hand and must never place his hands between the refuse container and the vacuum. FOX series Manual rev. A page 32 of 46... -
Page 33: Replacing The Filter
- Ensure that the power cord and plug are not damaged: replace the power cord immediately at the slightest sign of wear with one of the same type (refer to DEPURECO for information). This operation must be carried out only by a qualified electrician. - Page 34 4. release the two latches (C) of the cover from both sides 5. detach the suction hose (D), using a hex key to unscrew the clamp 6. remove the cover (E) 7. remove the filter (F) and place everything on a worktop FOX series Manual rev. A page 34 of 46...
- Page 35 To assemble the new filter, proceed as follows: 1. insert the filter into its support ring, locking it by means of the fastening clamp (H) FOX series Manual rev. A page 35 of 46...
-
Page 36: Replacing The Filter Cartridge (Optional Cca)
1. switch the machine off by turning the main switch to “ 0” 2. unplug the vacuum 3. disconnect the compressed air from the valve. Attention! Wear appropriate PPE (dust mask, latex gloves, goggles, etc.). FOX series Manual rev. A page 36 of 46... - Page 37 USE AND MAINTENANCE MANUAL 4. unlock the two latches (A) on both sides 5. disconnect the suction fitting (B) 6. disconnect the plug (C) 7. connect the pneumatic supply pipe (D) FOX series Manual rev. A page 37 of 46...
- Page 38 8. remove the upper cover (E) equipped with filtering cartridges. Attention! This operation must be carried out by two persons. 9. place the cover upside-down on a worktop 10. unscrew and remove the nuts to release the single cartridges FOX series Manual rev. A page 38 of 46...
- Page 39 Place the old filtering cartridges inside a plastic bag, close it and dispose of it in compliance with the laws in force, according to the extracted material. Reassemble everything following the previous instructions. USE ONLY GENUINE DEPURECO FILTERS FOX series Manual rev. A page 39 of 46...
-
Page 40: Positioning The Thermal Relay And Fuses (Fox 10)
To restore it, turn the main switch (1) (see para 4.1) dedicated key. Wait for the motor to cool down and press the blue button to rearm the thermal relay; then, lock the electrical panel door. FOX series Manual rev. A page 40 of 46... - Page 41 In the event of any anomaly, read the notes in paragraph 5.1 and 5.2 of this manual before intervening. If necessary, contact the DEPURECO customer service for further information. Failure to comply with these precautions can cause series injuries to the personnel.
-
Page 42: Troubleshooting
(6) lights up (FOX 10) The motor stops - A sudden power surge - Replace the fuses as described in (FOX 10) may have para 5.5 blown the fuses FOX series Manual rev. A page 42 of 46... -
Page 43: Wear Materials
(Directive 2002/96/EC on WEEE - Waste Electrical And Electronic Equipment) The parts of the vacuum made of plastic material, aluminium and steel can be recycled in appropriate centres. FOX series Manual rev. A page 43 of 46... - Page 44 +39 011. 9859326 or send it by e-mail to: DEPURECO@DEPURECO.com VACUUM/ COMPONENTS Model Serial Number Delivery date: ………………………………… Expiry date:…………..……… Company:……………………………………………………………………………… Address: ………………………….………………………………..…………..………… Postal Code: …………… City:………………..……...………………………………….. Activity sector:………………..………………………………………………….….. Tel.:……………………………………………………………………………………. Manager:..……………………………………………………………………….…. Notes …....…………………………………………………………………… ………………………………………………………………………………………….. Dealer's stamp FOX series Manual rev. A page 44 of 46...
- Page 45 INDUSTRIAL VACUUMS FOX Series USE AND MAINTENANCE MANUAL MAINTENANCE LOG Date INTERVENTION 1 Technical Assistance Type of intervention Signature Date INTERVENTION 2 Technical Assistance Type of intervention Signature FOX series Manual rev. A page 45 of 46...
- Page 46 INDUSTRIAL VACUUMS FOX Series USE AND MAINTENANCE MANUAL MAINTENANCE LOG Date INTERVENTION 3 Technical Assistance Type of intervention Signature Date INTERVENTION 4 Technical Assistance Type of intervention Signature FOX series Manual rev. A page 46 of 46...
