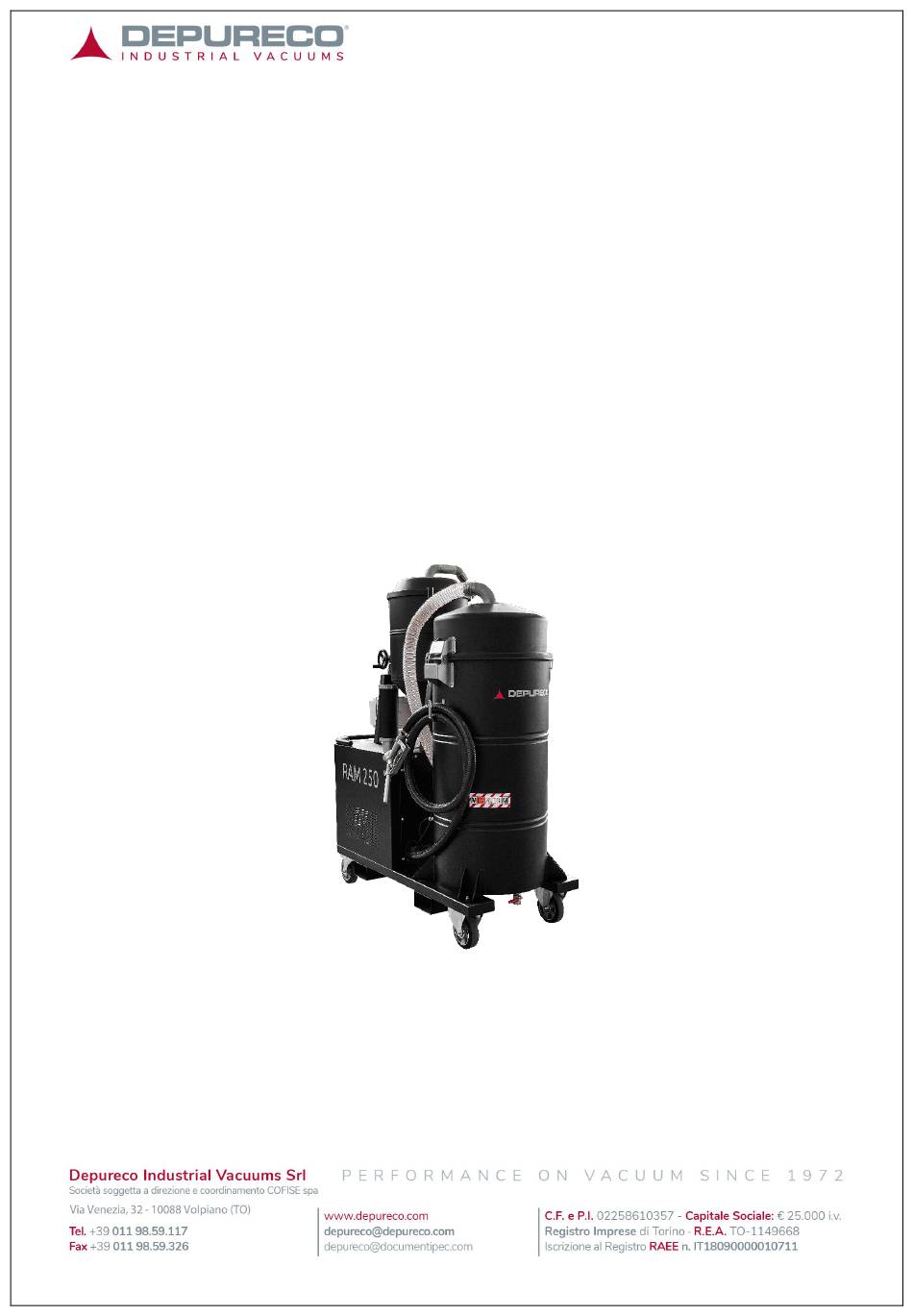

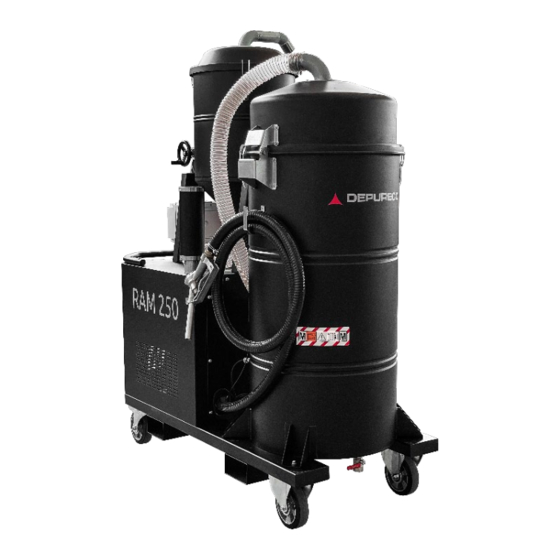

  • Page 1 INSTRUCTION AND MAINTENANCE MANUAL RAM OIL 250 ORIGINAL INSTRUCTIONS...

  • Page 2: Table Of Contents

    INDEX: INFORMATION SECTION ......................... 4 Introduction ............................4 Identification of the main parts ......................7 Optional parts ............................ 8 Manufacturer’s identification data ....................8 Identification plate ..........................9 Intended uses ............................ 9 Permitted environmental conditions ....................9 Noise level ............................10 Technical data ..........................
  • Page 3 Description of the controls ......................25 Work cycle ............................27 Emptying the solid waste container ....................31 Storage - decommissioning ......................33 MAINTENANCE SECTION ........................34 Information notes ..........................34 General safety standards ......................... 36 Cleaning the oil-repellent filter ....................... 39 Replacing the oil-repellent filter ......................

  • Page 4: Information Section

    1.1 I NTRODUCTION Dear Customer Thank you for choosing DEPURECO and purchasing a DEPURECO DV AIR vacuum cleaner from the RAM OIL 250 Series We have prepared this manual so that you can appreciate the quality of this machine. Please read it through before using the vacuum cleaner for the first time.
  • Page 5 This manual is an integral part of the vacuum cleaner and must accompany it throughout its service life, until it is scrapped. If it is lost or damaged, ask DEPURECO INDUSTRIAL VACUUMS S.r.l. (hereinafter simply known as DEPURECO) for a replacement copy.
  • Page 6 The topics covered in this manual are those expressly required by Machinery Directive 2006/42/EC and the technical data given are from the technical file archived at DEPURECO. In relation to Regulation 1907/2006/EC (REACH), DEPURECO declares that its products do not contain any of the Substances of Very High Concern (SVHC) included in the Candidate List.

  • Page 7: Identification Of The Main Parts

    1.2 I DENTIFICATION OF THE MAIN PARTS Suction nozzle solid waste container cover solid waste container liquid tank...

  • Page 8: Optional Parts

    Based on the application of the vacuum cleaner, a wide range of other optional accessories is available from DEPURECO. 1.4 M ’ ANUFACTURER S IDENTIFICATION DATA DEPURECO INDUSTRIAL VACUUMS S.r.l. Via Venezia, 32 - 10088 Volpiano (TO) - ITALIA tel. +39 011 98 59 117 fax +39 011 98 59 326 e-mail: depureco@depureco.com website: www.depureco.com...

  • Page 9: Identification Plate

    1.5 I DENTIFICATION PLATE For any communication with the manufacturer or the dealer, always specify the data given on the vacuum cleaner’s identification plate. 1.6 I NTENDED USES This vacuum cleaner model has exclusively been designed, constructed and protected for professional industrial use for the vacuuming of dry and/or wet, non-flammable and non-harmful dust and chips.

  • Page 10: Noise Level

    1.8 N OISE LEVEL The phonometric tests carried out on this specific model of vacuum cleaner show a sound pressure level of RAM OIL 250 72 dB(A) Caution! For sound pressure levels higher than 85 dB(A), exposed workers must be protected by appropriate personal protective equipment (PPE), such as approved ear defenders.

  • Page 11: Technical Data

    1.9 T ECHNICAL DATA Unit of Characteristic RAM OIL 250 Measurement Weight* Overall 850X1550 dimensions** L x W Overall dimensions** 1780 Power supply 400 – 50/60 V - Hz voltage 3.0 – 4.0 Power kW - HP Maximum mbar depression...

  • Page 12: Warranty

    DEPURECO is not liable for any damages to people or property caused by poor or imperfect use of the vacuum cleaner.

  • Page 13: Safety Section

    Adequate training is a fundamental requirement. DEPURECO will not be held liable for any accidents or damages resulting from the vacuum cleaner being used by untrained staff or being used improperly, or from failure to observe, even partially, the accident prevention regulations and intervention procedures in this manual.

  • Page 14: Safety Requirements

    If tools, procedures, work methods or working techniques not explicitly envisaged by DEPURECO are used, you must ensure beforehand that there are no dangers for yourself or for others, even so, DEPURECO will not be held liable.
  • Page 15 CAUTION! • The use of this vacuum cleaner can only be used by adults who are adequately trained. • This vacuum cleaner is suitable for industrial use, e.g., factories, warehouses, and workshops. • Make an electrical connection to an efficiently earthed network. •...
  • Page 16 • In case the Customer installs a tool which has not been supplied by DEPURECO on the vacuum cleaner, it is necessary to check that the safety conditions, as required by the Machine Directive 2006/42/CE, are maintained;...

  • Page 17: Plates And Safety Symbols

    Clean them with a cloth, soap and water. Do not use solvents, naphtha or petrol. Replace damaged plates asking DEPURECO for new ones. If a plate is on a part being replaced, make sure that a new plate is affixed to the new part.
  • Page 18 Caution! Carefully read the instruction and maintenance manual before using the vacuum cleaner or carrying out maintenance Caution! Carefully read the instructions on the packaging before handling and unpacking the vacuum cleaner...

  • Page 19: Residual Risks

    Observe the limits given in this manual in chapter 1.5 “Permitted environmental conditions”. Risk of misunderstanding the safety pictograms With reference to the risk analysis and identification, DEPURECO has affixed danger labels to the vacuum cleaner taken from the legislation relating to graphic symbols.

  • Page 20: Directives Applied

    2014/30/UE Electromagnetic compatibility directive 2011/65/UE – ROHS Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment The regulatory references, including mandatory requirements, are managed in the Quality Management System and archived at DEPURECO...

  • Page 21: Handling, Unpacking And Installation Section

    3 HANDLING, UNPACKING AND INSTALLATION SECTION 3.1 H ANDLING Caution! The instructions on how to transport and unpack the vacuum cleaner correctly are indicated on the packaging as well. The following instructions also indicate the operations to be carried out if the vacuum cleaner needs to be repacked or unpacked for subsequent transport.

  • Page 22: Unpacking

    3.2 U NPACKING Cut and remove the two bands fastening the packaging remove, with the help of a screwdriver, the points that secure the cardboard packaging to the pallet (where applicable) completely remove the cardboard (where applicable)

  • Page 23: Installation

    If any of the components are damaged, it is essential not to continue with installation but to report the anomaly found to DEPURECO and reach an agreement on the actions to be carried out. insert the appropriate accessory for the type of vacuuming from the opposite side of the flexible hose.
  • Page 24 Note: the hose with its terminals and suction accessories are not included in the STANDARD equipment. Contact your dealer (or DEPURECO) for information on the different types of OPTIONAL accessories that can be used for this specific vacuum cleaner model.

  • Page 25: Operation Section

    4 OPERATION SECTION 4.1 D ESCRIPTION OF THE CONTROLS Caution! Only authorised staff who have read these use and maintenance instructions are allowed to use the vacuum cleaner. The appliance user and the maintenance technician who carry out the permitted operations on the vacuum cleaner must receive appropriate information and training, as required by current laws on safety in the workplace, and wear the personal protective equipment (PPE) provided for the different operations, such as safety...
  • Page 26 1. White light: VOLTAGE PRESENCE 2. Red mushroom button: EMERGENCY STOP 3. I/O switch: LIQUID SUCTION START/STOP 4. I/O switch: LIQUID EXPULSION START/STOP...

  • Page 27: Work Cycle

    4.2 W ORK CYCLE Ensure that the power cable is undamaged and in perfect condition. Caution! Before plugging in, make sure that the voltage of the power supply line corresponds to the voltage indicated on the nameplate of the vacuum cleaner. Make sure that the power plug is inserted correctly into the power socket and make sure that the white indicator light (1) VOLTAGE PRESENCE is on.
  • Page 28 To proceed with the suction of liquids, proceed as follows: ensure that the drain valve at the end of the drain hose (detail no. 7, par. 1.1) is in the closed position (see image below) Grip the end of the hose with the suction attachment of your choice. Turn the switch (3) LIQUID SUCTION START/STOP to 'I', To stop suction, turn the switch (1) to "O".
  • Page 29 Before turning on the vacuum cleaner again, make sure that the pump has stopped completely. Use the special hose, fitted with original Depureco accessories, to start suction. At the end of this operation, wait 3 to 5 seconds before stopping the vacuum cleaner. In this way, the hopper will be completely free of residual liquid.
  • Page 30 During the liquid expulsion phase, when the minimum liquid level inside the tank is reached, the machine will automatically stop the expulsion. To proceed with liquid suction, turn the switch (4) to "O " and proceed as indicated above. It is possible to use the vacuum cleaner continuously, so it will be possible to expel liquid from the tank during the suction phase.

  • Page 31: Emptying The Solid Waste Container

    Caution! Do not use the vacuum cleaner in liquid expulsion mode with the exhaust valve closed. In this condition, failure to expel liquids could damage the drain pump. 4.3 E MPTYING THE SOLID WASTE CONTAINER To empty the solid waste container, make sure the machine is not running and proceed as indicated below: release the two hooks (6), gently lift the container cover (detail no.
  • Page 32 On completion of the removal, the container must be returned to its initial position by turning the handwheel (8) clockwise. When reaching the starting position, ensure that the container pin (9) is locked under the safety hook (7)

  • Page 33: Storage - Decommissioning

    4.4 S TORAGE DECOMMISSIONING Remove the oil-repellent filter, empty and clean the tank of any liquid residue inside it and store the vacuum cleaner in a place sheltered from the weather with temperatures between 0° and 40°C, covering it with a nylon cloth to prevent dust accumulation.

  • Page 34: Maintenance Section

    5 MAINTENANCE SECTION Caution! Extraordinary maintenance of the vacuum cleaner must only be carried out by specialised technicians approved by the DEPURECO dealer. 5.1 I NFORMATION NOTES This section contains a description of the routine inspection and maintenance operations essential to ensure smooth operation of the vacuum cleaner.
  • Page 35 If maintenance is to be carried out by the user, it is necessary to disassemble, clean and carry out maintenance on the vacuum cleaner, provided that this is possible, without causing dangers for maintenance staff and third parties. Appropriate precautionary measures include decontamination before disassembly, measures for forced filtered ventilation in the room where the appliance is to be disassembled, cleaning of the maintenance area and suitable personal protective equipment.

  • Page 36: General Safety Standards

    5.2 G ENERAL SAFETY STANDARDS Caution! All of the operations described must be carried out with the mains plug unplugged. Before starting any maintenance or cleaning operation, wear suitable PPE (protective clothing, safety goggles and/or gloves, etc.) for the work to be carried out. Put a sign on the vacuum cleaning stating: “MACHINE UNDER MAINTENANCE DO NOT START”...
  • Page 37 Make sure that the necessary tools are within reach of the maintenance  technician and are in good condition.  Make sure that the maintenance technician has the personal protective equipment necessary for the specific operation (gloves, goggles, shoes, mask, etc.) Make sure that the maintenance technician has carefully read the instructions ...
  • Page 38 Before each work shift Check that the power cable and plug are undamaged: replace it immediately if it shows signs of wear and tear, using a cable of the same type (information c/o DEPURECO); this is the exclusive responsibility of an electrician.

  • Page 39: Cleaning The Oil-Repellent Filter

    Caution! Wear appropriate PPE (dust mask, latex gloves, goggles, etc.). 5.3 C LEANING THE OIL REPELLENT FILTER To replace the oil-repellent filter, proceed as follows: switch off the machine disconnect the vacuum cleaner from the power supply disconnect the power plug of the pump from the power socket on the electric panel Loosen the vertical locking hooks (A) to release the cover from the liquid collection chamber, then rotate it through the hinge on the rear side.

  • Page 40: Replacing The Oil-Repellent Filter

    5.4 R EPLACING THE OIL REPELLENT FILTER To replace the oil-repellent filter, proceed as indicated in chap. 5.3 replacing the worn-out filter with a new one. remove the filter, place it inside a plastic bag, close it and dispose of it according to the laws in force for the type of material vacuumed.

  • Page 41: Tank Emptying And Cleaning

    5.5 T ANK EMPTYING AND CLEANING To completely empty the tank of liquid residue, proceed as follows: switch off the machine disconnect the vacuum cleaner from the power supply open the ball valve (E) at the bottom of the tank, allowing residual liquid to drain from the bottom of the chamber If you wish to clean the inside of the tank, lift the cover (see 5.3 CLEANING THE OIL FILTER), then clean the inside walls and bottom of the tank with a stream of water.
  • Page 42 Caution! Ensure that the ball valve [E] is properly tightened. Partial closure may cause liquid leakage during normal use ONLY USE ORIGINAL DEPURECO FILTERS...

  • Page 43: If Something Doesn't Work

    - Magnetothermic switch The vacuum cleaner does tripped not start - Reset magnetothermic switch - Contact the DEPURECO technical assistance service - Carry out a filter cleaning. If this is not - Oil-repellent filter enough, replace it. Irregular suction - Clogged suction hose - Check the suction hose and clean it.

  • Page 44: Scrapping

    5.7 S CRAPPING This product falls within the scope of Directive 2012/19/EU on waste from electrical and electronic equipment (WEEE). The appliance must not be eliminated with household waste as it is made up of different materials that can be recycled at the appropriate facilities.

  • Page 45: Intervention 1: Date

    MAINTENANCE REGISTER: INTERVENTION 1: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...

  • Page 46: Intervention 2: Date

    MAINTENANCE REGISTER: INTERVENTION 2: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...

  • Page 47: Intervention 3: Date

    MAINTENANCE REGISTER: INTERVENTION 3: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...
