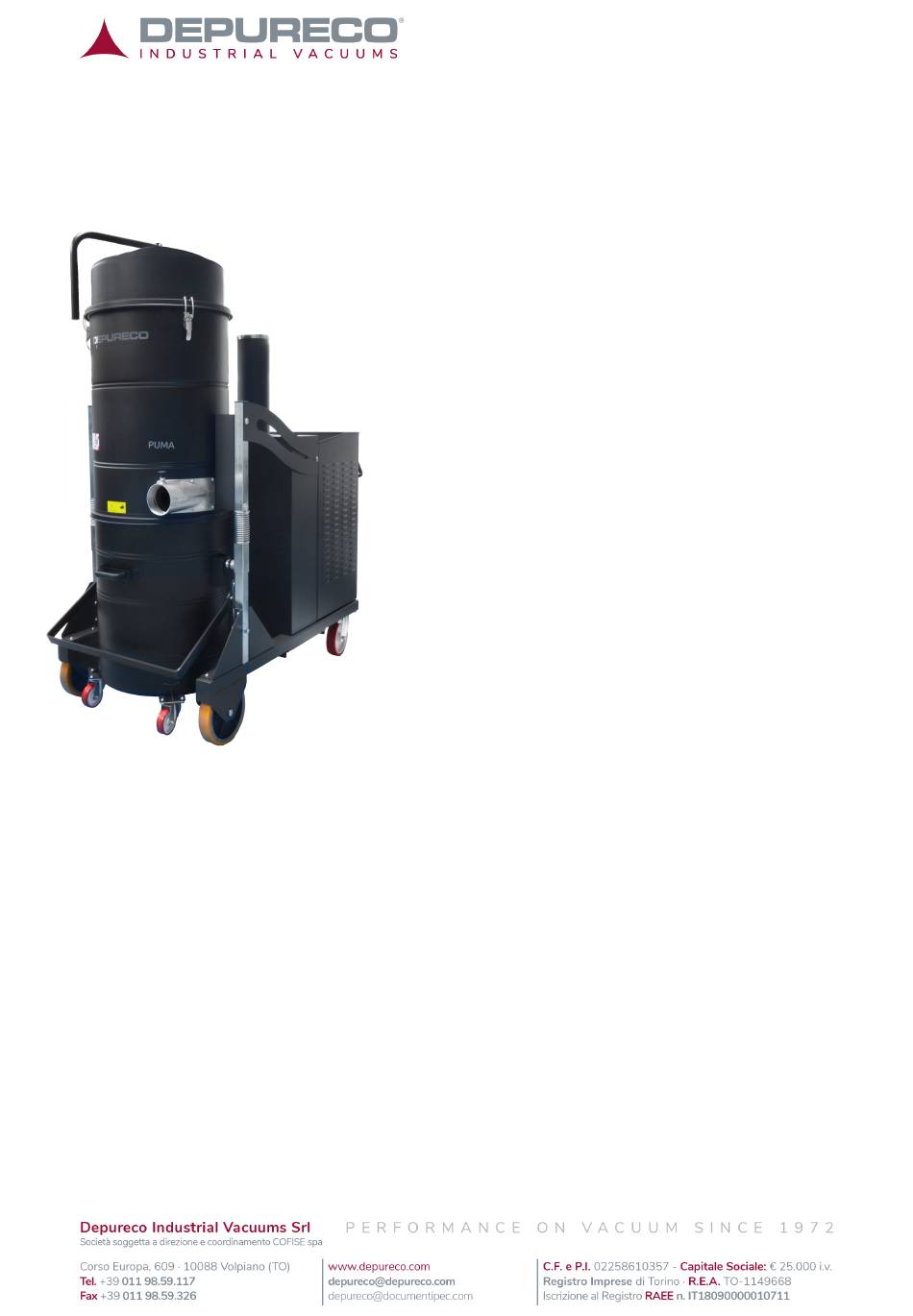

  • Page 1 USER AND MAINTENANCE MANUAL SERIES PUMA...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS: 1. INFORMATIVE SECTION Foreword ....................... 5 Main parts ......................8 Optional parts ....................... 9 Manufacturer's identification data ..............9 Identification plate ....................9 Permitted Uses ..................... 9 Authorised environmental conditions ..............9 Noise level ......................10 Technical data ....................11 Warranty ......................
  • Page 3 5. MAINTENANCE SECTION Informative notes ....................33 General safety regulations ................34 Replacing the filter ..................... 36 Replacing the filter cartridges on the C.C.A. cleaning system (if provided) . 38 Replacing the H filter (if provided)..............40 Troubleshooting ....................42 Scrapping ......................

  • Page 4: Informative Section

    IMPORTANT - The DEPURECO term and logo in this document refer to and are the property of DEPURECO INDUSTRIAL VACUUMS S.r.l. This document remains the exclusive property of DEPURECO S.r.l. Full or partial reproduction by any means (graphical, electronic, etc.) is prohibited without prior authorisation from the Company...
  • Page 5 This manual forms an integral part of the vacuum cleaner and must accompany the machine for its entire life cycle. In the event it is lost or damaged, you can request another copy from DEPURECO INDUSTRIAL VACUUMS S.r.l. (henceforth shortened to DEPURECO).
  • Page 6 This manual forms an integral part of the vacuum cleaner. Read this manual and the other attachments supplied carefully. Knowledge of the instructions here contained is indispensable for the safe use and maintenance of the vacuum cleaner Page 7 of 45...

  • Page 7: Main Parts

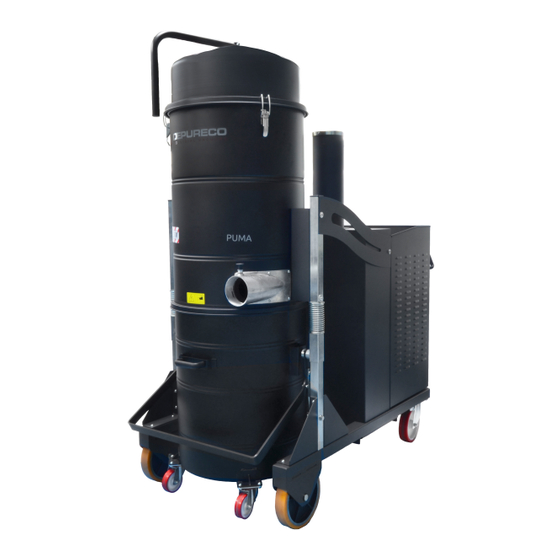

    Main parts Vacuum cleaner head Handles to move the product Filter chamber Suction nozzle Container release handle Dirt collection container Puma frame with wheels Frame with "FIX" base (where applicable) Page 8 of 45...

  • Page 8: Optional Parts

    1.3 Optional parts DEPURECO provides a wide range of optional accessories, depending on the application of the vacuum cleaner. Manufacturer's identification data DEPURECO INDUSTRIAL VACUUMS S.r.l. Corso Europa 609 - 10088 Volpiano (TO) - ITALY phone +39 011 98 59 117 - fax +39 011 98 59 326 | VAT NO. 02258610357 e-mail: depureco@depureco.com - website: www.depureco.com...

  • Page 9: Noise Level

    Noise level The phonometric tests performed on this specific vacuum cleaner model demonstrate a sound pressure level of PUMA 10 PUMA 12 PUMA 15 P PUMA 15 S PUMA 18 74 dB(A) PUMA 20 PUMA 30 P PUMA 30 S PUMA 35 P 78 dB(A) PUMA 35 S...

  • Page 10: Technical Data

    1.9 Technical data U.M. PUMA 10 PUMA 12 PUMA 15P PUMA 15S PUMA 18 Weight* [Kg] Weight with FIX [Kg] base* Overall [mm] 850 x 1550 x 1980 dimensions** Voltage / [V] - 400 - 50/60 Frequency [Hz] Power [kW - 7.5 - 10 8.5 - 12 11 - 15...
  • Page 11 PUMA 35 U.M. PUMA 20 PUMA 30 P PUMA 30 S PUMA 35 P Weight* [Kg] Weight with FIX [Kg] base* Overall 850 x 1590 x [mm] 1050 x 1950 x 2300 dimensions** 1930 Voltage / [V] - 400 -50/60 Frequency [Hz] Power...

  • Page 12: Warranty

    DEPURECO shall not be held liable for any injuries to persons or damage to objects caused by misuse or improper use of the vacuum.

  • Page 13: Safety Section

    Adequate training is crucial to this end. DEPURECO shall not be held liable for accidents or damage due to the improper use of the vacuum by untrained personnel or to failure to comply, even partially, with the occupational safety standards and intervention procedures contained in this manual.

  • Page 14: Safety Recommendations

    Use exclusively Depureco original spare parts. Depureco disclaims any liability in case spare parts other than original have been used. 2.2 Safety recommendations WARNING! The following information is essential in view of preventing all hazards that may occur while the vacuum cleaner is running. However, they cannot replace the expertise and common sense of operators as an overall framework for the prevention of accidents.
  • Page 15 Should the Customer install a tool not supplied by DEPURECO on the vacuum, the safety •...

  • Page 16: Safety Plates And Symbols

    Clean them using a cloth with water and soap. Do not use solvents, naphtha or petrol. Request replacements for damaged plates from DEPURECO. If a plate is located on a component that is being replaced, make sure to fit the old plate to the new component.

  • Page 17: Residual Risks

    The user must immediately replace any safety plate rendered illegible due to wear or damage. Warning! The removal of safety plates from the vacuum and/or its components and packaging is strictly prohibited. DEPURECO shall not be held liable for the vacuum's safety in the event of failure to comply with this prohibition. Page 18 of 45...

  • Page 18: Applied Directives

    2014/30/EU Electromagnetic compatibility directive 2011/65/EU - ROHS - Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment The reference standards, including their binding requirements, are managed within the DEPURECO Quality Management System Page 19 of 45...

  • Page 19: Handling, Unpacking And Installation Section

    3 HANDLING, UNPACKING AND INSTALLATION SECTION Handling Warning! The instructions for transporting and unpacking the vacuum correctly are shown on the packaging as well. The following instructions also indicate the operations to be undertaken should the vacuum need to be re-packed or unpacked after subsequent transportation.

  • Page 20: Unpacking

    3.2 Unpacking Cut and unwind the two packaging fixing belts remove the staples that fix the card packaging to the pallet with the aid of a screwdriver remove the cardboard completely Cut tapes between the platform and base of vacuum cleaner Page 21 of 45...
  • Page 21 The cardboard packaging can be recycled. To protect the environment, make sure to dispose it off in specialised collection centres. Warning! Keep the pallet. In the event of subsequent transport, the vacuum must be secured to the pallet using the same fastening system. Page 22 of 45...

  • Page 22: Installation

    Note: the flexible tube and the relevant end-pieces and suction accessories are not included with the STANDARD model. Contact your dealer (or DEPURECO) for information regarding the various types of OPTIONALS that can be used on this specific model.
  • Page 23 The vacuum cleaner’s electrical current supply socket must be protected by a CE-marked circuit breaker. Insert the plug (standard supply) into the socket. Warning! Do not insert the plug in the power supply socket with wet hands. Do not use extension leads. Page 24 of 45...

  • Page 24: Description Of The Controls

    4 SEZIONE FUNZIONAMENTO Description of the controls Attention! The vacuum cleaner can be used solely by authorised personnel after having read these use and maintenance instructions. The user of the equipment and the maintenance technician, who carry out interventions on the vacuum cleaner, must be adequately educated, informed and trained, in compliance with the occupational safety standards in force and, during the various operations, must wear personal protective equipment (PPE), such as safety footwear, gloves, protective goggles, mask, etc.
  • Page 25 Electrical control panel of Puma 20 with inverter (where applicable) 1. I/O switch 2. Red mushroom button: EMERGENCY STOP 3. White indicator light: VOLTAGE PRESENCE 4. Yellow indicator light: THERMAL CUT-OUT Page 26 of 45...

  • Page 26: Operating Cycle

    5. Green indicator light: CLEANING FILTER IN PROGRESS (only on models with compressed air cleaning, pneumatic or electric filter shaker) 6. Green button: START SUCTION 7. Green indicator light: SUCTION IN PROGRESS 8. Red button: STOP SUCTION 9. Blue button: START MANUAL FILTER CLEANING (only on models with compressed air cleaning) 10.
  • Page 27 Hold the end of the hose with the chosen accessory. To turn the vacuum cleaner on, turn the I/O (1) switch to “I”, make sure that the white PRESENCE VOLTAGE indicator light (3) is on, and to start suction press the green START SUCTION button (6); while vacuuming, make sure that the green SUCTION IN PROGRESS light (7) is on, indicating that the pump is running.

  • Page 28: Cleaning The Filter

    Warning! Do not use the vacuum cleaner with the filter clogged Cleaning the filter To clean the filter in vacuum cleaners equipped with manual filter shaker, proceed as follows: Stop vacuuming by pressing the red STOP SUCTION button (8) act vigorously on the lever shown in the figure below The vacuum cleaner with compressed air cartridge cleaning ("SP"...

  • Page 29: Emptying The Refuse Container

    In vacuum cleaners with electric filter shaker ("SE" models) or with pneumatic filter shaker ("PSC" models) (where applicable), the filter will be automatically cleaned at the end of the vacuuming process. Attention! If the vacuum cleaner is not working properly after the filter has been cleaned, the filter may be clogged and need replacing Emptying the refuse container Attention!

  • Page 30: Inserting And Locking The Dirt Container

    Remove the container from the vacuum cleaner, using the handle on the container Attention! If the container weighs over 15 Kg, have somebody help you. Attention! Waste disposal must take place in compliance with the laws in force in the country in which the vacuum cleaner is used - for Italy Legislative Decree 152/2006 and subsequent amendments.

  • Page 31: Storage - Decommissioning

    push the container locking handle fully down with both hands Attention! Upper limb crushing hazard! Do not, under any circumstance, place your hands between the container and the vacuum cleaner while locking it Storage - decommissioning Remove the filter and clean it; empty the refuse collection container and store the vacuum in a place protected against weather agents with the temperature ranging between 0 and 40°C and cover it with a nylon sheet to protect it against dust Page 32 of 45...

  • Page 32: Maintenance Section

    5. MAINTENANCE SECTION Warning! Special vacuum maintenance must be carried out solely by specialised technicians authorised by the DEPURECO dealer. 5.1 Informative notes This section describes the checks and routine maintenance operations required to ensure proper vacuum operation. Maximum reliability and minimum maintenance costs are the result of a planned maintenance and inspection schedule carefully followed throughout the entire lifespan of the vacuum.

  • Page 33: General Safety Regulations

    5.2 General safety regulations Warning! All the operations described above must be carried out with the plug disconnected from the socket. Before starting any maintenance or cleaning operation, wear suitable PPE (protective clothing, goggles and/or gloves, etc.) according to the work to be done. Place a sign on the vacuum with the message: “MACHINE UNDER MAINTENANCE DO NOT START”...
  • Page 34 Check that the power cord and the plug are not damaged: replace them immediately if there are any signs of wear, using a cord of the same type (information c/o DEPURECO). This operation is the sole responsibility of an electrician.

  • Page 35: Replacing The Filter

    5.3 Replacing the filter Warning! Wear appropriate PPE (dust mask, latex gloves, goggles, etc.). Proceed as follows to replace the filter: Switch the vacuum off by positioning the main switch to "O" Disconnect the vacuum cleaner from the power socket Disconnect the C.C.A.
  • Page 36 Disconnect the suction pipe from the suction cap by loosening the strap Remove the cap Remove the H filter and/or the C.C.A cleaning system (if provided) Slip out the filter and place all components on a work bench Loosen the fastening clip (H), remove the filter from its support and, using scissors, cut the lower belts that clamp it to the shaking cage Remove the filter, put it in a plastic bag, seal it and dispose it of according to the current legislation on the type of material extracted...

  • Page 37: Replacing The Filter Cartridges On The C.c.a. Cleaning System (If Provided)

    Replacing the filter cartridges on the C.C.A. cleaning system (if provided) Follow the indications below to replace the filter cartridges of the C.C.A. cleaning system: Switch the vacuum off by positioning the main switch to "O" Disconnect the vacuum cleaner from the power socket Disconnect the C.C.A.
  • Page 38 Perform the same operations in reversed order to fit back the filter cartridges: Insert the new cartridges and tighten the fastening nuts, make sure they have been properly mounted Helped by a second person, place the C.C.A. on the filter chamber and lock it with the locking hooks position the H filter (if provided) and lock it by means of the locking hooks position the vacuum cleaner cup, insert the suction tube to the cap and tighten the fastening...

  • Page 39: Replacing The H Filter (If Provided)

    5.5 Replacing the H filter (if provided) To replace the HEPA cartridge proceed as follows: Switch the machine off by turning the main switch to “OFF” Unplug the vacuum Unlock the HEPA unit’s three locking hooks (A) – The unit is positioned on the protecting cage of the vacuum cleaner’s blower.
  • Page 40 Lock the unit’s three locking hooks (A) and secure the HEPA unit Connect the vacuum cleaner to the mains Switch the vacuum cleaner on by positioning the main switch to "ON", then check to make sure it works properly. USE EXCLUSIVELY FILTERS MANUFACTURED BY DEPURECO Page 41 of 45...

  • Page 41: Troubleshooting

    Check the condition of the plug and the power cable The vacuum cleaner will not start Reset the magneto-thermal switch circuit breaker Contact DEPURECO technical tripped assistance Clean any clogged filters. If this Clogged filters solution is not effective, replace Irregular suction Clogged suction Check suction tube and clean it.

  • Page 42: Scrapping

    5.7 Scrapping In case of scrapping, to avoid damage to the environment, all components of the vacuum cleaner, must be disposed of responsibly, in appropriate landfills, in compliance with current legislation - for Italy Legislative Decree no. 152/2006 and subsequent amendments. (subsequent modifications and additions).
  • Page 43 MAINTENANCE LOG: INTERVENTION 1: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 2: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: Page 44 of 45...
  • Page 44 INTERVENTION 3: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 4: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: Page 45 of 45...
