Related Manuals for DEPURECO AC 65

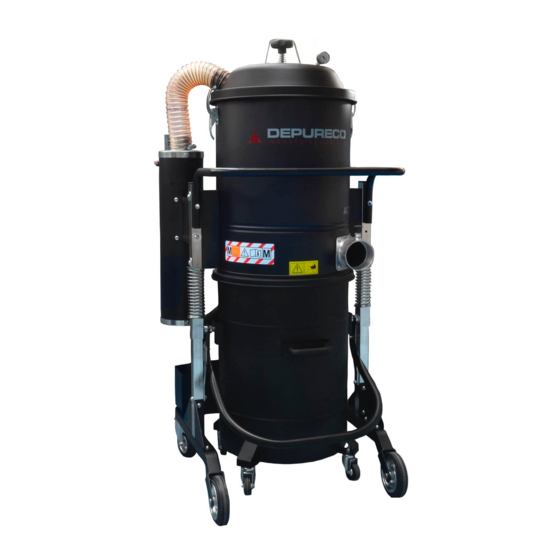

Summary of Contents for DEPURECO AC 65
-
Page 1: Table Of Contents
Index Information section ........1 Identification of the main parts . -
Page 2: Information Section
Information section In case of doubt do not interpret! Immediately telephone your retailer. -
Page 3: Identification Of The Main Parts
06) Vacuumed waste container 07) Locking/releasing lever for waste container 08) Mouthpiece for suction tube insertion 09) Wheels 10) Accessory compartment 11) Venturi unit container 12) Pneumatic supply valve DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... -
Page 4: Manufacturer's Identification Data
V i a P e r os i 3 – 10040 VOLVERA Tel. 011 9859117 - Fax 011 9859326 DEPURECO S.r.l. MADE IN ITALY Mod. Serial No. Year DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... -
Page 5: Areas Of Use
The work area must be clean, with sufficient lighting and have a non-explosive atmosphere. Noise level The sound power tests performed on this particular vacuum cleaner model show an acoustic pressure of: db(A) 70 AC 65/100 DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... -
Page 6: Technical Data
Before proceeding with disposal the plastic and rubber parts must be separated. The parts made entirely from plastic, aluminum and steel may be recycled if accepted by the appropriate centers. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... -
Page 7: 1.10 Guarantee
Depureco will be responsible for repairing or substituting free of charge any parts found, during the guarantee period, to be manufacturing defects. Repairs must be performed only at the Depureco site or in a Depureco- approved center for technical assistance and must arrive in free port (with transportation at the user's expense unless agreed otherwise). -
Page 8: Safety Section
Safety section In case of doubt do not interpret! Immediately telephone your retailer. -
Page 9: Safety Information
The worker must be alert to potential hazards and have the necessary training, competence and tools in order to perform these tasks correctly. Depureco may in no way be held responsible for accidents or damage as a result of vacuum cleaner use by insufficiently trained personnel, incorrect use or failure to observe, even partially, the safety norms and adjustment procedures outlined in this manual. -
Page 10: Safety Measures
Depureco prior to beginning. • In the event that the client installs an accessory not furnished by Depureco to the vacuum cleaner, it is necessary to check that the 98/37 EEC machine safety directive is observed. - Page 11 Perform the locking procedure using the special lever and BOTH HANDS. • During use, always stabilize the vacuum cleaner using the special brake located on the turning wheel. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties...
-
Page 12: Safety Plates And Symbols
Never put hands in the sides of the container near the guide pins during the locking phase. Lock the container using the special lever with BOTH HANDS! DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... - Page 13 Carefully read the operation and maintenance manual before using or repairing the vacuum cleaner. Warning! Carefully read the instructions found on the packaging material before removing and unpacking the vacuum cleaner. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties...
-
Page 14: Residual Risks
The following directives apply to the vacuum cleaner described in this manual: - f or t h e a p p li ed directives, please refer to the CE compliance declaration. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... -
Page 16: Removal, Unpacking And Installation Section
Removal, unpacking and installing section The instructions for correctly removing and unpacking the vacuum cleaner are also found on the packing materials themselves. These same instructions are repeated in the manual in case the vacuum cleaner must be repacked or disassembled for later transportation. In case of doubt do not interpret! Immediately telephone your retailer. -
Page 17: Removal
When raising the load, be aware of the ceiling height of the work area. Before moving make sure the pathway is free from obstructions and no mobile objects are on the package. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... -
Page 18: Unpacking
- Cut and remove the two packaging bands. - Remove, with the aid of a screw-driver, the staples holding the cardboard to the platform. - Completely remove the cardboard. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... -
Page 19: Installation
The vacuum cleaner requires a floatation valve (for blocking suction when the container is half full) to remove liquids. Contact product assistance for further information. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... - Page 20 Contact your retailer for information regarding the variety of optional accessories available for use with this particular model of vacuum cleaner. Check that the pneumatic supply line is that same as that required by the vacuum extractor. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties...
-
Page 22: Operation Section
Operation section Warning! Use of the vacuum cleaner by unauthorized personnel (or those who have not read the operation and maintenance manual) is forbidden. Workers and personnel authorized for performing maintenance procedures to the vacuum cleaner must receive adequate instruction on the use of individual safety devices (such as shoes, gloves and masks) to eliminate any risks involved in performing the various operations. -
Page 23: Description Of Controls
Description of controls PRESSURE GAUGE Indicates an obstructed suction filter PUSH ROD AND KNOB for filter shaking DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... -
Page 24: Work Cycle
Never, under any circumstances, disconnect the pneumatic supply hose from the FR group on the vacuum extractor without first having closed the pneumatic supply valve upstream of the vacuum extractor. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... - Page 25 Stop the machine and clean the filter. Model Obstructed filter AC 65 bar 150 AC 100 bar 150 Warning! Never use the machine with the filter obstructed. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties...
- Page 26 If the pressure gauge shows another irregular depression, the flexible tube or one of the vacuuming accessories could be obstructed. In that case, clean it to remove the cause of the obstruction. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties...
-
Page 27: Emptying Waste Container
- Stabilize the vacuum cleaner using the special brake located on the turning wheel. - Unlock the container by raising the special lever. - Remove the waste container from the vacuum cleaner using the special handle. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... - Page 28 To avoid using the protective dust mask, and for greater commodity, prior to vacuuming a plastic bag may be inserted into the container and fixed with special accessories available on request. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties...
-
Page 29: Inserting And Locking Waste Container
- The studs (A), located on both sides, must be aligned with the grooves (B). Warning! Never put hands between the waste container and the vacuum cleaner during the locking process. Crushing hazard to upper limbs. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... -
Page 30: Maintenance Section
Maintenance section Warning! Heavy maintenance to the vacuum cleaner must be performed exclusively by the manufacturer's technicians. In case of doubt do not interpret! Immediately telephone your retailer. -
Page 31: Informative Notes
Before beginning a maintenance procedure, the employee must: - Disconnect the pneumatic supply and put the vacuum extractor in the safety condition. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... - Page 32 - Ensure proper function of the filter using the pressure gauge. - Ensure that the flexible suction tube and accessories are in good condition. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties...
-
Page 33: Filter Replacement
Put on the special protective dust mask and latex gloves. - Lower the lever (A), completely unscrew and remove the knob (B). - Unlock, from both sides, the two clasps (C). DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... - Page 34 - Put the filter inside a plastic bag, close it and dispose of it according to the laws in vigor regarding the type of material vacuumed. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties...
- Page 35 - Correctly place the top cover onto the vacuum cleaner and lock it with the side clasps. - Replace the push rod, screwing it tightly. - Raise the push rod locking lever. - Attach the suction tube connector. DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties...
-
Page 36: Troubleshooting
Dust leakage from vacuum - Perforated filter - Replace the filter cleaner - Filter unsuitable for type of - Use the filter appropriate for the vacuuming type of dust being vacuumed DEPURECO INDUSTRIAL VACUUMS DEPURECO srl forbids reproduction or distribution to third parties... - Page 37 GUARANTEE To claim under the terms of the warranty, a photocopy of this form should be made, filled in completely, preferably in printed lettering, and sent by fax to the manufacturer at the number + 3 9 - 0 1 1 - 9 8 5 9 3 2 6 INDUSTRIAL VACUUM CLEANER Model Serial number Voltage...
- Page 38 MAINTENANCE INTERVENTION CHART Date NTERVENTION TECHNICAL ASSISTANCE TECHNICAL ASSISTANCE signature Date NTERVENTION TECHNICAL ASSISTANCE TECHNICAL ASSISTANCE signature...
- Page 39 MAINTENANCE INTERVENTION CHART Date NTERVENTION TECHNICAL ASSISTANCE TECHNICAL ASSISTANCE signature Date NTERVENTION TECHNICAL ASSISTANCE TECHNICAL ASSISTANCE signature...
