- Page 1 INSTRUCTION AND MAINTENANCE MANUAL ECOBULL AM ATEX Z22 II3D A1086 GENERAL INSTRUCTIONS Via Venezia, 32...
-
Page 2: Table Of Contents
INDEX: INFORMATIVE SECTION ............................3 Foreword ......................3 Main components A1086 SUCTION UNIT ............. 6 Optional parts ....................7 Manufacturer's identification data ..............7 Identification plate ..................8 Atex marking ....................8 Permitted Uses ....................9 Authorised environmental conditions ............9 Noise level ..................... -
Page 3: Informative Section
IMPORTANT - The DEPURECO term and logo in this document refer to and are the property of DEPURECO INDUSTRIAL VACUUMS S.r.l. This document remains the exclusive property of DEPURECO S.r.l. Full or partial reproduction by any means (graphical, electronic, etc.) is prohibited without prior... - Page 4 This manual is an integral part of the vacuum cleaner and must accompany it at all times, until its demolition. In the event it is lost or damaged, you can request another copy from DEPURECO INDUSTRIAL VACUUMS S.r.l. (henceforth shortened to DEPURECO).
- Page 5 2006/42/EC and the technical data are taken from the technical file archived at DEPURECO. With reference to Regulation 1907/2006/EC (REACH), DEPURECO hereby declares that no Substances of Very High Concern - (SVHC) included in the Candidate List, are contained in its products.
-
Page 6: Main Components A1086 Suction Unit

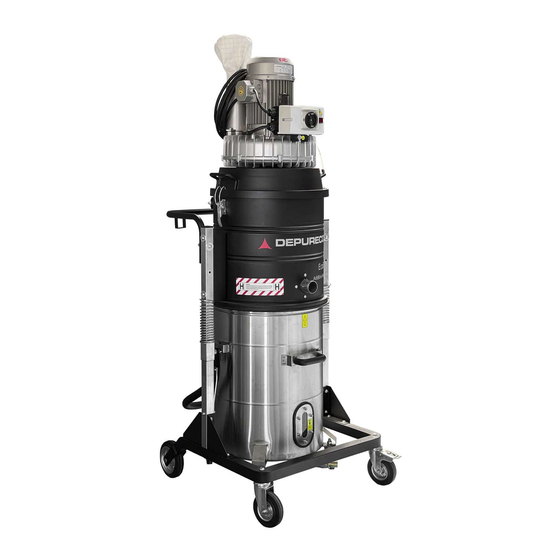

1.2 Main components A1086 SUCTION UNIT 1) Motor base 2) Vacuum gauge 3) Silencer 4) Pump 5) On / off selector 6) Filter chamber 7) Suction mouth 8) Dust / debris collection container 9) Porthole of maximum level 10) Drain cock 11) Fixed frame 12) Safety valve 13) Handle for handling... -
Page 7: Optional Parts
NOTE Use only inerting liquid compatible with the use for which the vacuum cleaner was manufactured. DEPURECO declines all responsibility for the use of non-compliant and unsuitable inerting liquid for the purpose for which the vacuum cleaner was designed. It is possible to lift the container only when the filter unit is correctly positioned. -
Page 8: Identification Plate
1.5 Identification plate The data on the vacuum identification plate must be referred to in any correspondence with the manufacturer or the dealer. Via Venezia 32 1.6 Atex marking Marking for luminaire suitable for use in an outdoor area classified as ZONE 22: Manufacturer .. -
Page 9: Permitted Uses
1.7 Permitted Uses These vacuum cleaners are built and designed in accordance with Directive 2006/42 / EC (Machinery Directive) for an exclusive professional industrial use; however, for purposes other than normal domestic purposes. This vacuum cleaner is designed to collect combustible dust and / or dry particles in atmospheres classified as Zone 22 (valid for atex vacuum cleaners), with the following limitations: Minimum ignition energy (MIE) of the dust>... -
Page 10: Technical Data
1.10 Technical data U.M. A1086 Weight* [Kg] Dimensions** [mm] 665x738x1612 Voltage/ [V]- [Hz] 400 I 50 Frequency Power [kW -HP] Depression in [mBar] continuous run Max. Air flow [m³/h] H Filter surface [m²] Noise level [dB-A] Bin capacity weight without packaging - packaging weight = 20 Kg (**) machine dimensions without packaging... -
Page 11: Warranty
DEPURECO shall not be held liable for any injuries to persons or damage to objects caused by misuse or improper use of the vacuum. -
Page 12: Safety Section
Adequate training is crucial to this end. DEPURECO shall not be held liable for accidents or damage due to the improper use of the vacuum by untrained personnel or to failure to comply, even partially, with the occupational safety standards and intervention procedures contained in this manual. -
Page 13: Safety Recommendations
Structural damage, alterations or improper repairs can modify the protective capacity of the vacuum, thereby nullifying this certification and releasing DEPURECO from any liability. Each section lists further safety measures specific to the various functions. - Page 14 • To operate the vacuum cleaner in corrosive environments. • To use flexible hoses which are not wholly antistatic (superficial antistatic properties are not accepted). The use of original DEPURECO accessories is recommended. Verify electric continuity with an ohmmeter: 1. Between the inlet and the ending part of the vacuum’s accessories: The resistance measured must be inferior to 100MΩ...
- Page 15 This manual must always be available for consultation on the expected operating cycle and whenever there are doubts. If it is lost or damaged, a replacement copy must be requested from DEPURECO.
-
Page 16: Safety Plates And Symbols
Clean them using a cloth with water and soap. Do not use solvents, naphtha or petrol. Request replacements for damaged plates from DEPURECO. If a plate is located on a component that is being replaced, make sure to fit the old plate to the new component. -
Page 17: Residual Risks
Residual risks DEPURECO recommends complying with the instructions, procedures and recommendations in this manual and with the safety standards in force. DEPURECO also recommends using suitable personal protective equipment as well as the protection devices integrated in the vacuum. The residual risks analysed on the vacuum and/or its components could be: Electrical risks during maintenance due to the requirement to work on live parts Pursuant to Italian Legislative Decree 81/08 –... -
Page 18: Applied Directives
It is absolutely forbidden to remove the safety labels on the vacuum cleaner and / or on its components and on the packaging. DEPURECO declines any responsibility for the safety of the vacuum cleaner in the event of non-compliance with this prohibition. - Page 19 The equipment with II 1/3 D Ex htc IIIC T140 ° C Da / Dc marking can contain a ZONE 20 inside and can be used in ZONE 22 The equipment with II 1/2 D Ex h tb IIIC T140 ° C Da / Db marking can contain a ZONE 20 inside and can be used in ZONE 21 and ZONE 22 The zones are defined as follows.
- Page 20 Any electrical or mechanical components to be installed on the equipment must be certified in the category suitable for use: - category 3D (ZONE 22) - category 2D (ZONE 21) - category 1D (ZONE 20) For maintenance or cleaning operations, the user must ensure that the equipment used (aspirators, portable lamps, etc.) are of a suitable category for the environment: - 3D category (ZONE 22)
- Page 21 In the case of aspiration of dust that may give rise to self-ignition phenomena, the collection bin must be emptied immediately after each activity. This precaution must also be adopted in the case of suction of different types of powders whose mixture may give rise to exothermic reactions.
- Page 22 A specially trained operator must always be present during the operation of the equipment and must intervene immediately stopping the equipment using the emergency button in case of malfunctions, for example due to abnormal noise (breakage of components), clogging of the loading and venting, rupture of the filter bags, aspiration of bodies, presence of foreign bodies or sources of ignition.
- Page 23 - radio frequencies (RF) and electromagnetic waves (from 104Hz to 3 * 1011Hz); - electromagnetic waves (from 3x1011Hz to 3x1015Hz); - ionizing radiations; - ultrasound. The regulatory references, including mandatory requirements, are managed in the Quality Management System and filed at DEPURECO.
-
Page 24: Handling, Unpacking And Installation Section
3. HANDLING, UNPACKING AND INSTALLATION SECTION 3.1 Handling Warning! The instructions for transporting and unpacking the vacuum correctly are shown on the packaging as well. The following instructions also indicate the operations to be undertaken should the vacuum need to be re-packed or unpacked after subsequent transportation. Dimensions of the packed vacuum cleaner: All models 1000... -
Page 25: Unpacking
3.2 Unpacking Cut and unwind the two packaging fixing belts Remove the staples that fix the carton packaging to the pallet with the aid of a screwdriver Remove the carton completely The cardboard packaging can be recycled. To protect the environment, make sure to dispose it off in specialised collection centres. -
Page 26: Installation
In the event of one or more components being damaged, do not continue with installation, inform DEPURECO about the anomaly and agree upon action to be taken. The vacuum cleaner is already fitted with an appropriate filter intended exclusively to... -
Page 27: Operation Section
Warning! Do not insert the plug in the power supply socket with wet hands. Do not use extension leads. 4. OPERATION SECTION 4.1 Description of the controls Warning! The vacuum can be used solely by authorised personnel after having read these use and maintenance instructions. The user of the equipment and the maintenance technician, who carry out operations on the vacuum, must be adequately educated, informed and trained, in... -
Page 28: Operating Cycle
4.2 Operating cycle Ensure that the power cord is intact and in perfect state. Warning! Before inserting the plug, ensure that the voltage of the power supply line corresponds to the one indicated on the vacuum's identification plate. - Make sure the power plug is properly inserted into the power outlet. - Make sure that the flexible tube is regularly inserted and locked in the appropriate suction nozzle. - Page 29 the bin to avoid filling it excessively. Proceed as follows to empty the container: Switch the machine off by switching the main switch (1) to “0” block the vacuum cleaner by means of the brake located on the swivelling wheel unlock the container by lifting the special handle. remove the bin by using the handles - Empty the debris into the waste disposal container NOTE The container can also be emptied using the drain cock located on the bottom...
-
Page 30: Inserting And Locking The Bin
If the bin or the bag weigh more than 15 Kg, at least two people are needed to empty it. Disposal must be done in compliance with the existing laws for the country of use Of the vacuum cleaner. For Italy - Legislative decree 152/2006 and subsequent modifications. 4.4 Inserting and locking the bin To insert and lock the container, proceed as follows: - Insert the container under the aspirator... -
Page 31: Storage - Decommissioning
5 and 45 °C and cover it with a nylon tarp to protect it against dust. 5. MAINTENANCE SECTION Warning! Special vacuum maintenance must be carried out solely by specialised technicians authorised by the DEPURECO dealer. 5.1 Informative notes This section describes the checks and routine maintenance operations required to ensure proper vacuum operation. -
Page 32: General Safety Regulations
Should maintenance operations or repairs be carried out, all contaminated objects must be adequately cleaned, placed in waterproof bags and disposed of in compliance with the regulations in force. 5.2 General safety regulations Warning! All the operations described above must be carried out with the plug disconnected from the socket. - Page 33 Check that the power cord and the plug are not damaged: replace them immediately if there are any signs of wear, using a cord of the same type (information c/o DEPURECO). This operation is the sole responsibility of an electrician.
-
Page 34: Replacing The Filter
5.3 Replacing the filter Warning! Wear appropriate PPE (dust mask, latex gloves, goggles, etc.). To replace the filter, proceed as follows: - Switch off the vacuum cleaner - Disconnect the vacuum cleaner from the power supply - Remove the container - With the help of suitable equipment, remove the inerting filter kit to replace it - Remove the bag filter from the basket to clean / wash it (or replace it if necessary) - Unlock the two closing hooks of the head base on the filter chamber (C) from both sides... - Page 35 - Remove the head with its base.
- Page 36 - Position and fix the inerting filter kit in the conical support ring - Insert the conical ring into the container - Connect the power supply Turn on the vacuum cleaner and immediately evaluate its regular operation. USE ONLY ORIGINAL DEPURECO FILTERS...
-
Page 37: Troubleshooting
The vacuum cleaner will Verify the integrity of the plug and the No power supply not start power cable Contact DEPURECO’s technical assistance service Replace the filter Perforated filter Dust comes out of the vacuum cleaner Filter not suitable for the... - Page 38 MAINTENANCE REGISTER: INTERVENTION 1: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 2: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: Via Venezia, 32...
- Page 39 INTERVENTION 3: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 4: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...
