RS-Ruby Lite Users' Manual

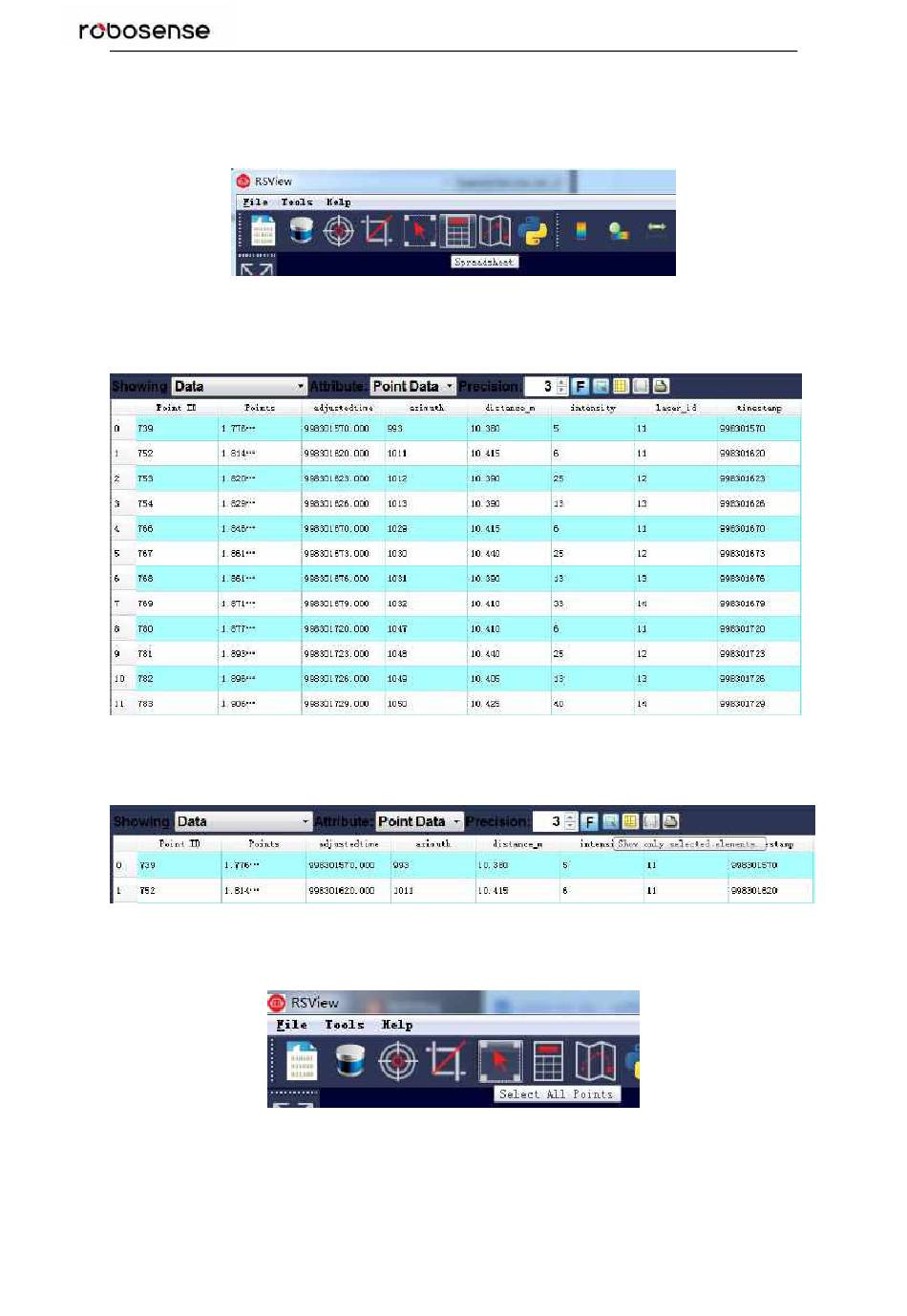

6. In order to inspecting partial relevant point cloud data from a closer aspect, please scrub to
an interested frame and click the Spreadsheet button (Figure C-9). A data table will be
displayed on the right side. It contains all displayed data points in the frame.
Figure C - 9: RSView Spreadsheet tool.
7. The dimension and the sort of data in this table are adjustable, which can make the display
more obvious. (Figure C -10)
Figure C - 10: RSView Data Point Table.
8. Click "Show only selected elements" in spreadsheet can acquire corresponding data,
certainly there is no data shown in table, if no one point is selected. (Figure C-11)
Figure C - 11: RSView Show Only Selected Elements.
9. By using "Select All Points" Tool, the arbitrary point can be selected. (as shown in Figure
C-12)
Figure C - 12: RSView Select All Points.
10. In the 3D rendered data pane using mouse to draw a rectangle around a small number of
points. The values of them can be immediately shown in the table (Figure C -13).
