RS-Ruby Lite Users' Manual

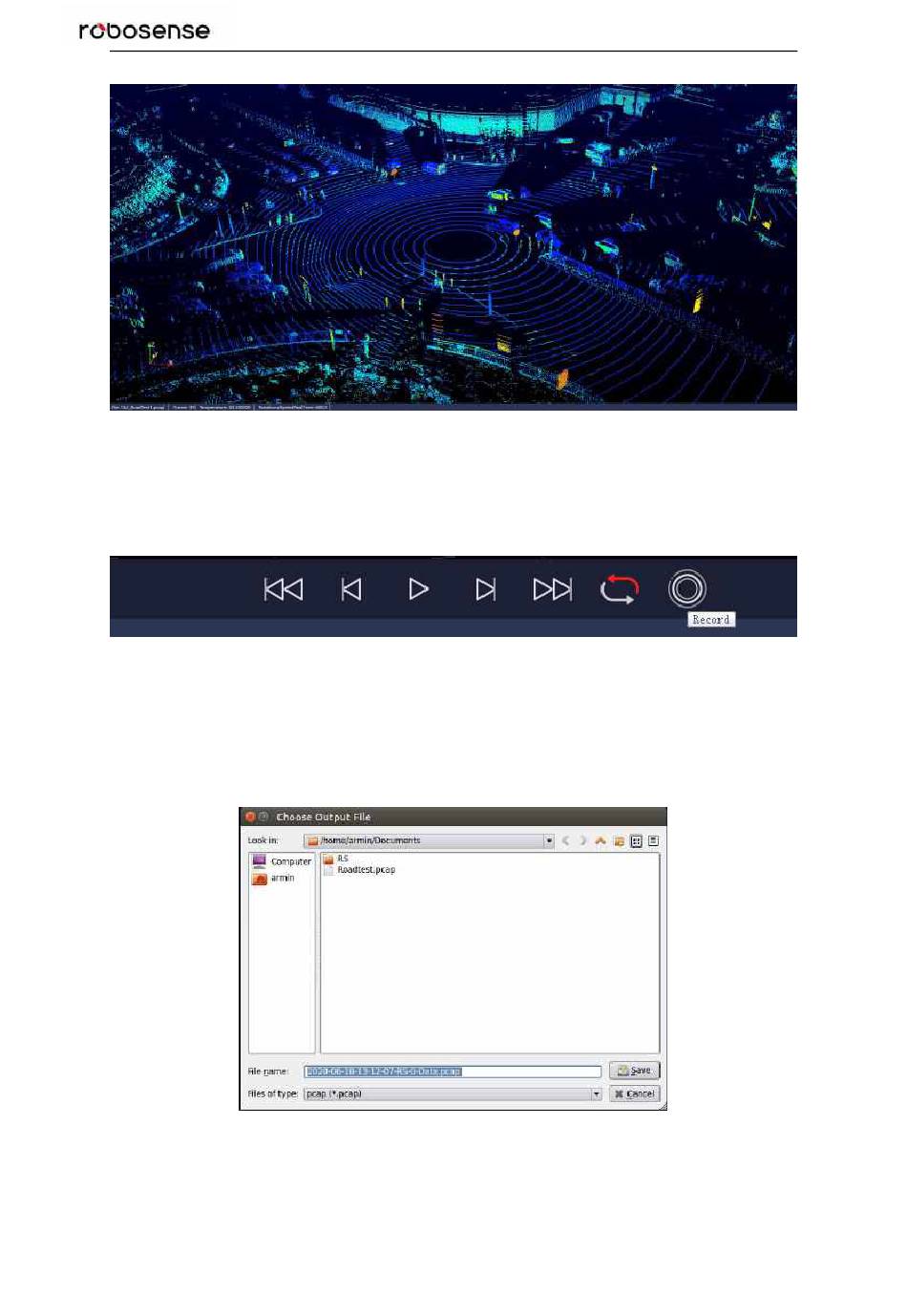

Figure C - 3: RSView Sensor Stream Display.
C.5 Save Streaming Sensor Data into PCAP File
1. Click the Record button during real-time display (Figure C-4).
Figure C - 4: RSView Record Button.
2. In the dialogue box "Choose Output File", the save path and file name of pcap file can be
set up. (Figure C-5). After clicking "save" button, RSView begins writing data into pcap file.
(Note: RS-Ruby Lite will generate enormous measuring data. So, it is best to use a fast, local
HDD or SSD, not to use a slow subsystem, such as USB storage device or network drive.)
Figure C - 5: RSView Record Saving Dialog.
3. Click "Record" Button will finish record and save all the recorded data into this pcap file.
37
