RS-Ruby Lite Users' Manual
lighted. The green LED lights always by default. While red LED is dark, Interface Box is in
protection status. While red or green LED (GPS Module connected) is dark, please check
whether the power supply is out of order or damaged. If it is not intact, that could prove that the
Interface Box is damaged. Please send the damaged Interface Box back to RoboSense
Service.
GPS interface definition: GPS REC stands for GPS input, GPS PULSE stands for GPS PPS
input.
Interface of power supply is standard DC 5.5-2.1 connector.

4.4 Interface Box Connection

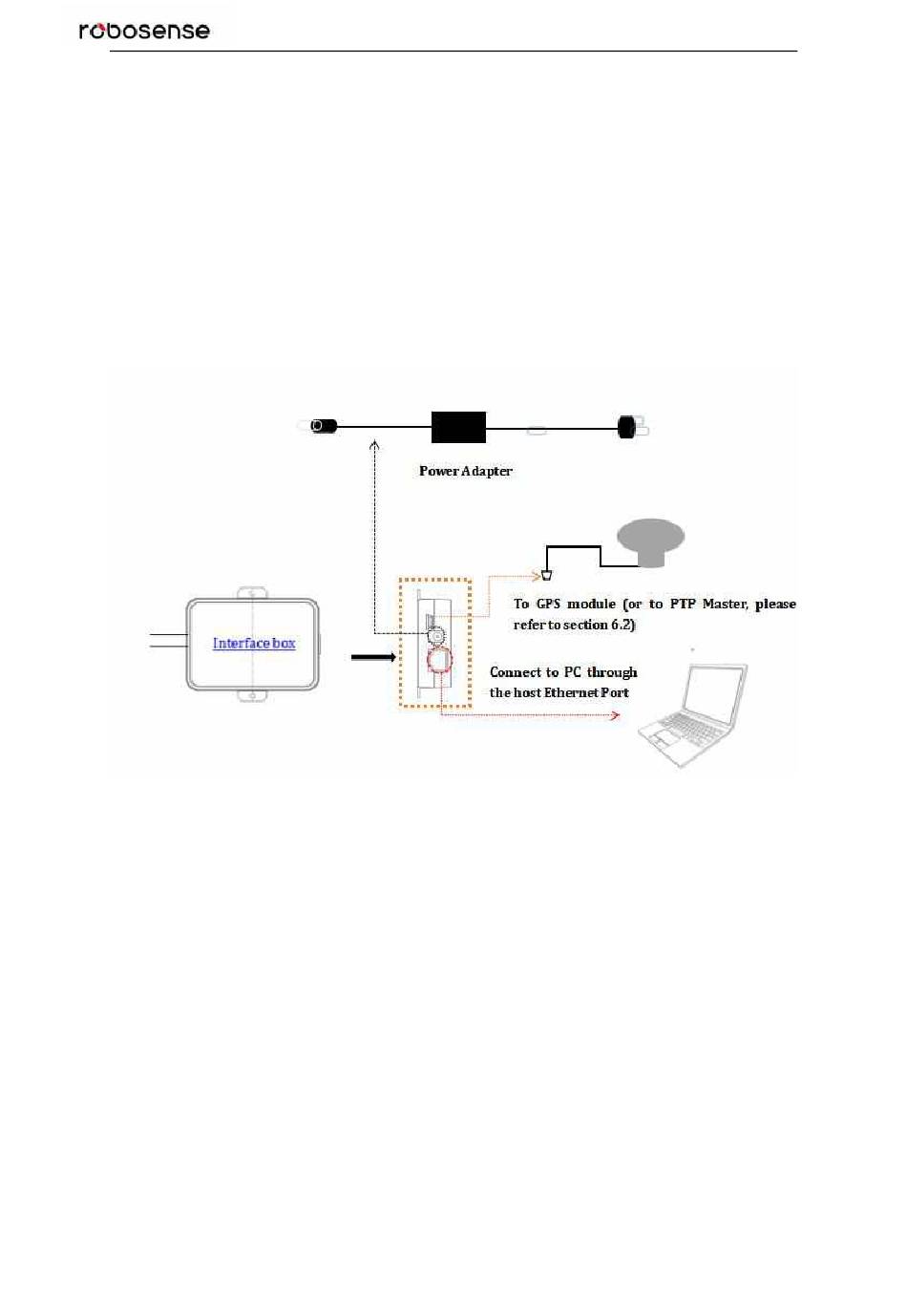

Figure 4: Diagram of Interface Box Connection.
6
