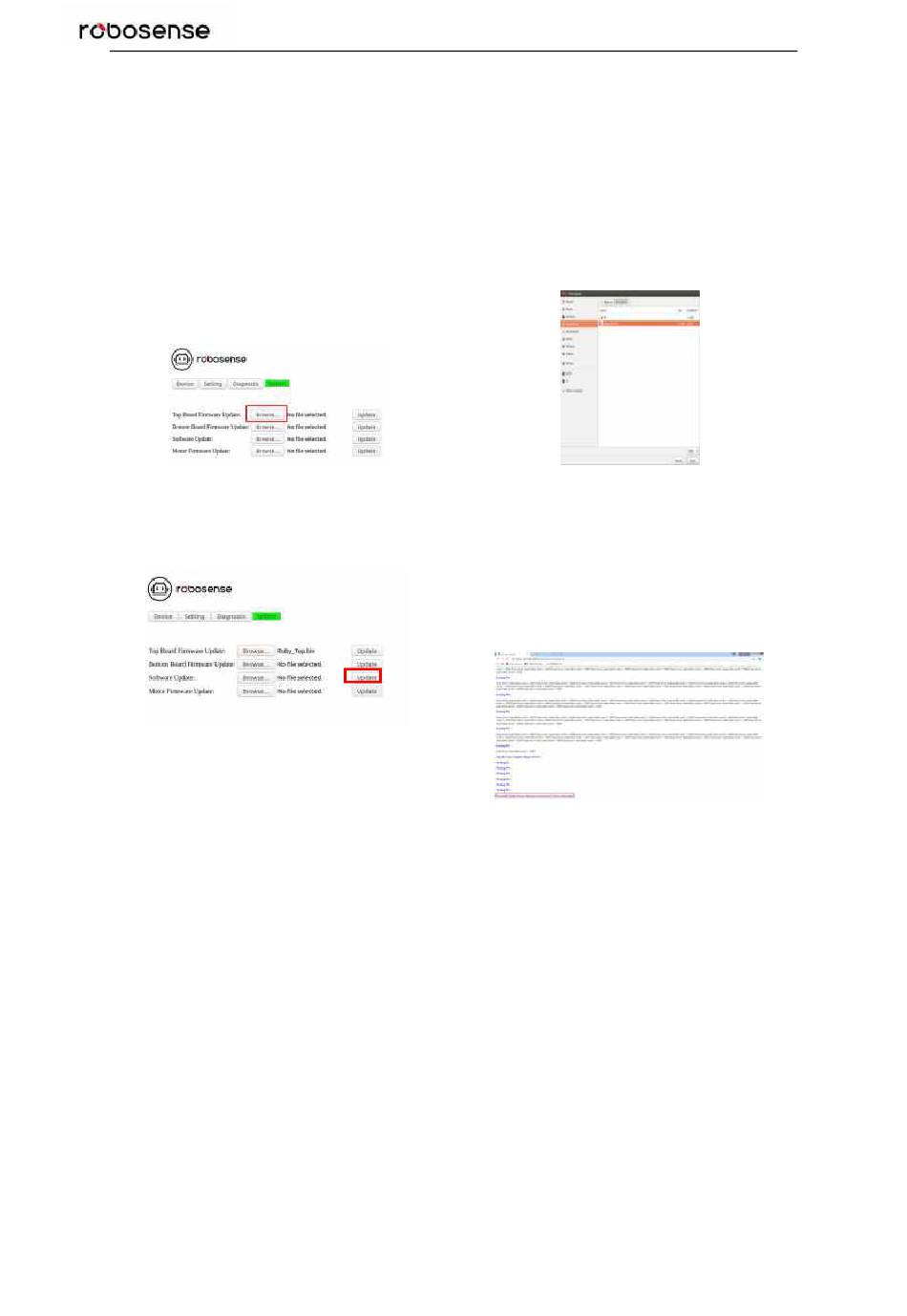

A.4 Firmware Update
In the option "System", the update of top board firmware, bottom board firmware, software and
motor firmware can be updated. Manipulation is shown as below:
1. Prepare the firmware needed to update
and click Button "Browse" to locate it under a
directory.
Figure A - 4: Click Browser to search
"Firmware".that needs to be updated.
3. Click Button "Update" to finish the update.
Figure A - 6: Click Button "Update".
2. Select firmware and click Button "Open".
Figure A - 5: Select and Import Firmware to
update.
4. When the indication "Successful!" shows
up, the update process is done. Device will
reboot, and please check again whether the
version of firmware is updated.
Figure A - 7: Indication while successful
update.
