RS-Ruby Lite Users' Manual

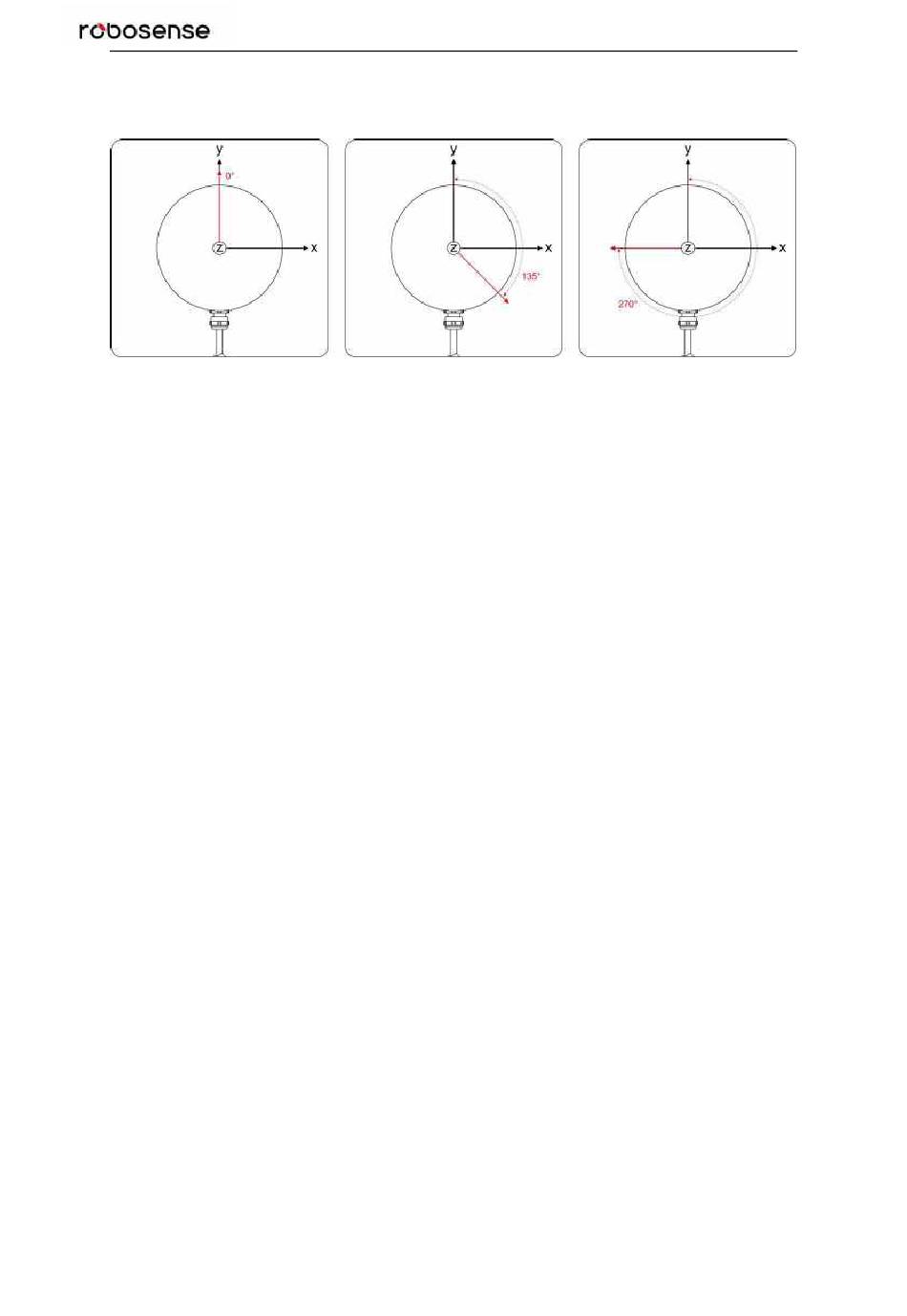

In Figure 10 different Phase Lock is shown as red arrow. When PPS is triggered, sensor can
rotate to the 0°, 135°or 270°.
Figure 10:Different phase lock angles 0°/135°/270°.
In Web sever -> Option "Setting" -> Phase Lock Setting, the angle of phase lock can be set in
the interval [0°~ 360°], refer to section A.2.
18
