Part-turn actuators
Hide thumbs
Table of Contents

Advertisement

Quick Links

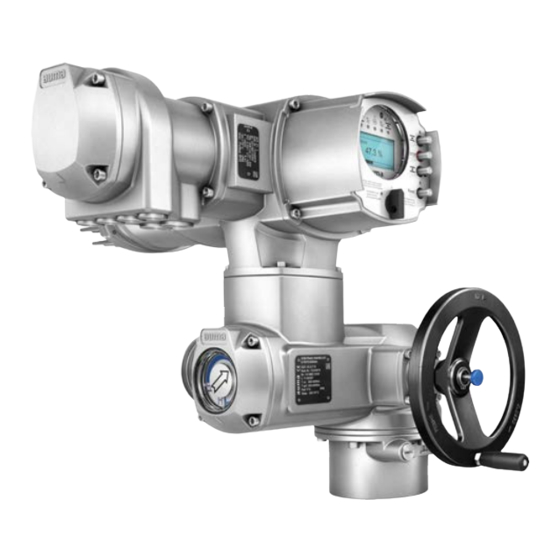

Part-turn actuators
SQV 05.2
SQV 14.2
SQRV 05.2
SQRV 14.2
Control unit: electronic (MWG)
with actuator controls
ACV 01.2 Non-Intrusive
Control
Parallel
Profibus DP
Profinet
Modbus RTU
Modbus TCP/IP
EtherNet/IP
Foundation Fieldbus
HART
Operation instructions
Assembly and commissioning

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SQV 05.2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AUMA SQV 05.2

Summary of Contents for AUMA SQV 05.2

  • Page 1 Part-turn actuators SQV 05.2 SQV 14.2 SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) with actuator controls ACV 01.2 Non-Intrusive Control Parallel Profibus DP Profinet Modbus RTU Modbus TCP/IP EtherNet/IP Foundation Fieldbus HART Operation instructions Assembly and commissioning...

  • Page 2: Table Of Contents

    Reference documents: Manual (Operation and setting ) of actuator controls ACV 01.2 Profibus DP Manual (Fieldbus device integration) of actuator controls ACV 01.2 Profibus DP Reference documents are available on the Internet at: http://www.auma.com. Table of contents Page Safety instructions.........................
  • Page 3 Indications during commissioning 8.2. Indications in the display 8.2.1. Feedback signals from actuator and valve 8.2.2. Status indications according to AUMA classification 8.2.3. Status indications according to NAMUR recommendation 8.3. Indication lights of local controls 8.4. Mechanical position indication (self-adjusting) 8.5.
  • Page 4 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Table of contents ACV 01.2 Non-Intrusive Profibus DP 11.3.1. Set mechanical position indicator 11.3.2. Gear stage of the reduction gearing: test/set Corrective action........................12.1. Faults during commissioning 12.2.

  • Page 5: Safety Instructions

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Safety instructions Safety instructions 1.1. Prerequisites for the safe handling of the product The end user or the contractor must ensure that all legal requirements, directives,...

  • Page 6: Range Of Application

    ACV 01.2 Non-Intrusive Profibus DP Any device modification requires prior written consent of the manufacturer. 1.2. Range of application AUMA part-turn actuators SQV 05.2 SQV 14.2/SQRV 05.2 SQRV 14.2 are designed for the operation of industrial valves, e.g. butterfly valves and ball valves.
  • Page 7 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Safety instructions Via the menu to parameter Describes the menu path to the parameter. When using the push buttons of local controls, the required parameter can be quickly found on the display. Display texts are shaded in grey: Display.

  • Page 8: Short Description

    Switching off in end positions may be either by limit or torque seating. Actuator controls are required to operate or process the actuator signals. For part-turn actuators SQV 05.2 SQV 14.2/SQRV 05.2 SQRV 14.2, the actuator operating time is modified by means of a frequency converter in the actuator controls.
  • Page 9 The AUMA Cloud is the driving element of the digital AUMA world, acting as interactive platform for efficient maintenance of AUMA actuators at moderate cost. The AUMA Cloud collects all device data of all actuators within one site and provides AUMA Cloud a clear overview at a glance.

  • Page 10: Name Plate

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Name plate ACV 01.2 Non-Intrusive Profibus DP Name plate Figure 4: Arrangement of name plates Actuator name plate Actuator controls name plate Motor name plate Additional plate, e.g. KKS plate (Power Plant Classification System)
  • Page 11 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Name plate Actuator controls name plate Figure 6: Actuator controls name plate (= manufacturer logo) Type designation Order number Serial number Actuator terminal plan...
  • Page 12 Control via Profibus DP interface and control voltage for OPEN-CLOSE control via digital inputs (OPEN, STOP, CLOSE) When registered as authorised user, you may use our AUMA Assistant App to scan Data Matrix code the Data Matrix code and directly access the order-related product documents without having to enter order number or serial number.

  • Page 13: Transport Und Lagerung

    During transport and installation, leave the supplied cooling fin transport protec- tion on the cooling fins. Gewichte Table 3: Weight for ACV 01.2 actuator controls with electrical connection type: Weight approx. [kg] AUMA plug/socket connector with screw-type connection...

  • Page 14: Storage

    SQRV 10.2 SQV 12.2/ SQRV 12.2 SQV 14.2/ SQRV 14.2 Indicated weight includes AUMA NORM part-turn actuator with 3-phase AC motor, electrical con- nection in standard version, unbored coupling and handwheel. For other output drive types, consider additional weights. 4.2. Storage Danger of corrosion due to inappropriate storage! Store in a well-ventilated, dry room.

  • Page 15: Assembly

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Assembly Assembly 5.1. Mounting position When using grease as lubricant, the product described herein can be operated in any mounting position. When using oil instead of grease within the actuator gear housing, perpendicular mounting position is specified whereby the flange is pointing downward.

  • Page 16: Overview On Coupling Variants

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Assembly ACV 01.2 Non-Intrusive Profibus DP 5.3.1. Overview on coupling variants Design Figure 12: Valve attachment via coupling Bore with keyway Square bore Bore with two-flats For valve attachments according to EN ISO 5211...
  • Page 17 Valve shaft Grub screw Clamping washer and screw with curved spring lock washer Figure 14: Mounting positions for coupling Table 5: Mounting position of the coupling within fitting dimensions according to AUMA definition Dimensions [mm] SQ 05.2 SQ 07.2 SQ 10.2 SQ 12.2...
  • Page 18 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Assembly ACV 01.2 Non-Intrusive Profibus DP Fit actuator. If required, slightly turn actuator until splines of coupling engage. Figure 15: Ensure that the spigot (if provided) fits uniformly in the recess and that the flanges Information are in complete contact.

  • Page 19: Mounting Positions Of Local Controls

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Assembly 5.4. Mounting positions of local controls Figure 16: Mounting positions The mounting position of the local controls is implemented according to the order.

  • Page 20: Electrical Connection

    It can plan also be requested from AUMA (state order number, refer to name plate) or downloaded directly from the Internet (http://www.auma.com). The actuators are suitable for use in TN and TT networks with directly grounded star Permissible networks point for nominal voltages up to maximum 480 V AC.
  • Page 21 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Electrical connection Consider the max. current (I ) (refer to motor name plate or electrical data sheet) when selecting the circuit breaker.

  • Page 22: Sd Electrical Connection (Auma Plug/Socket Connector)

    Short description Control contacts also available as crimp-type connection as an option. SD version. For power and control cable connection, remove the AUMA plug/socket connector and the socket carrier from terminal compartment. Removing the cover is sufficient for connecting the fieldbus cables.

  • Page 23: Terminal Compartment (For Mains Connection): Open

    SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Electrical connection Technical data Table 9: Electrical connection via AUMA plug/socket connector Power contacts Control contacts No. of contacts max. 6 (3 equipped) + protective 50 pins/sockets...

  • Page 24: Cable Connection

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Electrical connection ACV 01.2 Non-Intrusive Profibus DP Insert cable glands [8] suitable for connecting cables. The enclosure protection IP… stated on the name plate is only ensured if suit- able cable glands are used.
  • Page 25 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Electrical connection In case of a fault: Hazardous voltage while protective earth conductor is NOT connected! Risk of electric shock. Connect all protective earth conductors.

  • Page 26: Terminal Compartment (For Mains Connection): Close

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Electrical connection ACV 01.2 Non-Intrusive Profibus DP 6.2.3. Terminal compartment (for mains connection): close Figure 23: Close mains terminal compartment Connection housing Screws for connection housing O-ring...

  • Page 27: Fieldbus Terminal Compartment: Open

    O-ring Cable entries for fieldbus cables Blanking plug The AUMA plug/socket connector is equipped with a connection board for connecting the fieldbus cables. When removing the cover [1], the connection board is easily accessible. Electric shock due to presence of hazardous voltage! Failure to observe this warning results in death or serious injury.

  • Page 28: Fieldbus Cables: Connect

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Electrical connection ACV 01.2 Non-Intrusive Profibus DP 6.2.5. Fieldbus cables: connect RS-485 connection Table 11: boards Variant Overvoltage AUMA art. no. protection up to 4 kV on label 1 channel (standard) Z071.720/02...

  • Page 29: Fieldbus Terminal Compartment: Close

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Electrical connection 6.2.6. Fieldbus terminal compartment: close Figure 27: Close fieldbus terminal compartment Cover (fieldbus terminal compartment) Screws for cover O-ring Cable entries for fieldbus cables Blanking plug Clean sealing faces of cover [1] and housing.

  • Page 30: Accessories For Electrical Connection

    The permissible cable length between separate local controls and the actuator Information on installa- amounts to 16 m maximum. tion with wall bracket Longer cables require an external filter (available on request) We recommend using an AUMA “LSW” cable set.

  • Page 31: Parking Frame

    ACV 01.2 Non-Intrusive Profibus DP Electrical connection 6.3.2. Parking frame Figure 29: Parking frame, example with AUMA plug/socket connector and cover Parking frame for safe storage of a disconnected plug or cover. Application For protection against touching the bare contacts and against environmental influences.

  • Page 32: External Earth Connection

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Electrical connection ACV 01.2 Non-Intrusive Profibus DP 6.3.4. External earth connection Figure 31: Earth connection for part-turn actuator External earth connection (U-bracket) for connection to equipotential compensation.

  • Page 33: Operation

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Operation Operation 7.1. Manual operation For purposes of setting and commissioning, in case of motor or power failure, the actuator may be operated manually. Manual operation is engaged by an internal change-over mechanism.

  • Page 34: Actuator Operation From Remote

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Operation ACV 01.2 Non-Intrusive Profibus DP Figure 32: Local controls Push button for operation command in direction OPEN Push button STOP Push button for operation command in direction CLOSE...

  • Page 35: Menu Navigation Via Push Buttons (For Settings And Indications)

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Operation Set selector switch to position Remote control (REMOTE). Now, the actuator can be remote-controlled via fieldbus. For actuators equipped with a positioner, it is possible to change over between OPEN...

  • Page 36: Menu Layout And Navigation

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Operation ACV 01.2 Non-Intrusive Profibus DP Push buttons Navigation sup- Functions port on display [4] C Setup Enter Main menu Cancel process Return to previous display Backlight The display is illuminated in white during normal operation.

  • Page 37: User Level, Password

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Operation Figure 37: Direct display (example) Display indicates in the bottom row: Go to Press push button Go to. Display indicates: Go to menu M0000 Use push buttons Up ▲...

  • Page 38: Password Change

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Operation ACV 01.2 Non-Intrusive Profibus DP Use push buttons Up ▲ Down ▼ to select figures 0 to 9. Confirm first digit of password via push button Repeat steps 1 and 2 for all further digits.
  • Page 39 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Operation Set selector switch to position 0 (OFF). Select main menu Press push button C Setup and hold it down for approx. 3 seconds.

  • Page 40: Indications

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Indications ACV 01.2 Non-Intrusive Profibus DP Indications 8.1. Indications during commissioning When switching on the power supply, all LEDs on the local controls illuminate for LED test approx.

  • Page 41: Feedback Signals From Actuator And Valve

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Indications Figure 43: Information in the status bar (top) Operation mode Error symbol (only for faults and warnings) ID number: S = Status page...
  • Page 42 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Indications ACV 01.2 Non-Intrusive Profibus DP Figure 47: Torque The push button allows to select the unit displayed (percent %, Newton metre Nm Select unit or "foot-pound" ft-lb Figure 48: Units of torque 100 % indication equals the max.

  • Page 43: Status Indications According To Auma Classification

    Pause for operation in direction OPEN Pause for operation in directions OPEN and CLOSE 8.2.2. Status indications according to AUMA classification These indications are available if the parameter Diagnostic classific. M0539 is set to AUMA. Warnings (S0005) If a warning has occurred, the display shows S0005: the number of warnings occurred a blinking question mark after approx.

  • Page 44: Status Indications According To Namur Recommendation

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Indications ACV 01.2 Non-Intrusive Profibus DP Not ready REMOTE (S0006) The S0006 display shows indications of the Not ready REMOTE group. If such an indication has occurred, the display shows S0006: the number of indications occurred a blinking crossbar after approx.
  • Page 45 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Indications Figure 56: Function check For further information, please also refer to <Corrective action>. Maintenance required (S0010) The S0010 indication shows maintenance indications according to NAMUR recommendation NE 107.

  • Page 46: Indication Lights Of Local Controls

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Indications ACV 01.2 Non-Intrusive Profibus DP 8.3. Indication lights of local controls Figure 59: Arrangement and signification of indication lights Marking with symbols (standard) Marking with figures 1...

  • Page 47: Mechanical Position Indication Via Indicator Mark (Not Self-Adjusting)

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Indications Independent of power supply Characteristics Used as running indication: Indicator disc (with arrow ) rotates during actu- ator operation and continuously indicates the valve position (For “clockwise closing version”, the arrow rotates in clockwise direction for...

  • Page 48: Signals (Output Signals)

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Signals (output signals) ACV 01.2 Non-Intrusive Profibus DP Signals (output signals) 9.1. Signals via fieldbus Feedback signals via fieldbus can be configured. Configuration is possible for both data structure and data contents.
  • Page 49 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Signals (output signals) Signal: E2 = 0/4 20 mA (galvanically isolated) Valve position Designation in the wiring diagram: AOUT1 (position) Torque feedback...

  • Page 50: Commissioning (Basic Settings)

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Commissioning (basic settings) ACV 01.2 Non-Intrusive Profibus DP Commissioning (basic settings) Set selector switch to position 0 (OFF). Information: The selector switch is not a mains switch. When positioned to 0 (OFF), the actuator cannot be operated.

  • Page 51: Set End Stop Closed

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Commissioning (basic settings) Figure 63: End stop Screw plug for end stop OPEN Setting screw for end stop OPEN Screw plug for end stop CLOSED...

  • Page 52: Type Of Seating: Set

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Commissioning (basic settings) ACV 01.2 Non-Intrusive Profibus DP If the valve end position is not reached: Slightly turn setting screw [2] counterclockwise until valve end position OPEN can be safely set.

  • Page 53: Torque Switching: Set

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Commissioning (basic settings) Press Display indicates the current setting: Limit or Torque The bottom row of the display indicates either: Edit → continue with step 6 Save →...
  • Page 54 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Commissioning (basic settings) ACV 01.2 Non-Intrusive Profibus DP Select parameter either: Select parameter click via the menu to parameter, or via direct display: press and enter ID M0088.

  • Page 55: Limit Switching: Set

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Commissioning (basic settings) 10.4. Limit switching: set Valve damage at valve/gearbox due to incorrect setting! When setting with motor operation: Stop actuator prior to reaching end of travel (press STOP push button).

  • Page 56: Operating Time (Internal): Set

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Commissioning (basic settings) ACV 01.2 Non-Intrusive Profibus DP Set end position CLOSED again : Set end position CLOSED CMD0009 9.1 For large strokes: Set selector switch in position Local control (LOCAL)
  • Page 57 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Commissioning (basic settings) Table 17: Speed sources Parameters Value Adjustable internal operating time Sp. source LOC OP M1700 Internal 1 Sp. source LOCAL CL M2039 Internal 2 Sp.

  • Page 58: Fieldbus Address (Slave Address): Set

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Commissioning (basic settings) ACV 01.2 Non-Intrusive Profibus DP Up ▲ Down ▼ to select user: Log on user Information: Required user level: Specialist (4) or higher The symbols have the following meaning: black triangle: ▶...

  • Page 59: Test Run

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Commissioning (basic settings) Select access level via Up ▲ Down ▼, resulting in the following significations: black triangle: ▶ = current setting white triangle: ▷...

  • Page 60: Limit Switching: Check

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Commissioning (basic settings) ACV 01.2 Non-Intrusive Profibus DP Switch on actuator in direction CLOSE and observe the direction of rotation on the mechanical position indication: For self-adjusting mechanical position indication:...

  • Page 61: Commissioning (Settings In The Actuator)

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Commissioning (settings in the actuator) Commissioning (settings in the actuator) Figure 66: Mechanical position indicator (self-adjusting) The actuator is supplied with the swing angle set in the factory in compliance with the order.

  • Page 62: Switch Compartment: Open/Close

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Commissioning (settings in the actuator) ACV 01.2 Non-Intrusive Profibus DP 11.1. Switch compartment: open/close Figure 68: Open/close switch compartment Mechanical position indication (self-adjusting) Mechanical position indication via indicator mark Loosen screws [2] and remove cover [1] from the switch compartment.

  • Page 63: Gear Stage Of The Reduction Gearing: Test/Set

    Gear stage of the reduction gearing: test/set The test/setting is only required if the mechanical position indicator cannot be correctly set or if another swing angle range is ordered subsequently, for example, 120° ±15° instead of 90° ±15° (replacement by the AUMA Service only).

  • Page 64: Mechanical Position Indication Via Indicator Mark (Not Self-Adjusting)

    Refer to table and check if swing angle corresponds to the setting of the reduc- tion gearing (stages 1 9). Table 18: Actuator swing angle and suitable reduction gearing setting SQV 05.2 / SQV 07.2 SQV 10.2 SQV 12.2 SQV 14.2 30°...

  • Page 65: Set Mechanical Position Indicator

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Commissioning (settings in the actuator) 11.3.1. Set mechanical position indicator If options (e.g. potentiometer, position transmitter) are available: Only set mech- anical position indication once all optional equipment have been successfully set.
  • Page 66 If the setting is not correct: continue with step 4. If the setting is correct: continue with step 7. Table 19: Actuator swing angle and suitable reduction gearing setting SQV 05.2 / SQV 07.2 SQV 10.2 SQV 12.2 SQV 14.2 30°...

  • Page 67: Corrective Action

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Corrective action Corrective action 12.1. Faults during commissioning Table 20: Faults during operation/commissioning Fault Description/cause Remedy Mechanical position indicator cannot Reduction gearing is not suitable for actuator swing Set gear stage of the reduction gearing.
  • Page 68 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Corrective action ACV 01.2 Non-Intrusive Profibus DP Faults and warnings via status indications in the display Indication on display Description/cause Remedy S0009 Collective signal 08: For indicated value > 0: Press push button Indication according to NAMUR recommendation tails.
  • Page 69 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Corrective action Warnings and Out of specification Indication on display Description/cause Remedy PVST abort Partial Valve Stroke Test (PVST) was aborted or Perform RESET or restart PVST.
  • Page 70 Selector switch is not in position REMOTE. Set selector switch to position REMOTE. Service active Operation via service interface (Bluetooth) and Exit service software. AUMA CDT service software. Disabled Actuator is in operation mode Disabled. Check setting and status of function <Local controls enable>.

  • Page 71: Fuses

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Corrective action Not ready REMOTE and Function check (collective signal 04) Indication on display Description/cause Remedy Interlock An interlock is active. Check interlock signal.

  • Page 72: Servicing And Maintenance

    Therefore, we recommend contacting our service. Only perform servicing and maintenance tasks when the device is switched off. AUMA AUMA offers extensive service such as servicing and maintenance as well as Service & Support customer product training. For the contact addresses, refer to our website (www.auma.com).

  • Page 73: Technical Data

    Information on the customer-specific version, refer to the order-related data sheet. The technical data sheet can be downloaded from the Internet in both German and English at ht- tp://www.auma.com (please state the order number). 14.1. Technical data Part-turn actuator Features and functions...
  • Page 74 Colour Standard: AUMA silver-grey (similar to RAL 7037) Option: Available colours on request Lifetime AUMA part-turn actuators meet or exceed the lifetime requirements of EN 15714-2. Detailed information can be provided on request. Sound pressure level < 72 dB (A)
  • Page 75 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Technical data Further information EU Directives Machinery Directive 2006/42/EC Low Voltage Directive 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU RED Directive 2014/53/EU...

  • Page 76: Spare Parts

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Spare parts ACV 01.2 Non-Intrusive Profibus DP Spare parts 15.1. Part-turn actuators SQ(V) 05.2 SQ(V) 14.2/SQR(V) 05.2 SQR(V) 14.2...
  • Page 77 Spare parts Please state device type and our order number (see name plate) when ordering spare parts. Only original AUMA spare parts should be used. Failure to use original spare parts voids the warranty and exempts AUMA from any liability. Representation of spare parts may slightly vary from actual delivery.

  • Page 78: Acv 01.12 Actuator Controls Fieldbus

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Spare parts ACV 01.2 Non-Intrusive Profibus DP 15.2. ACV 01.12 Actuator controls fieldbus...
  • Page 79 Spare parts Please state device type and our order number (see name plate) when ordering spare parts. Only original AUMA spare parts should be used. Failure to use original spare parts voids the warranty and exempts AUMA from any liability. Representation of spare parts may slightly vary from actual delivery.

  • Page 80: Index

    SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Index ACV 01.2 Non-Intrusive Profibus DP Index Earth connection Electrical connection 20, 73 Accessories (electrical con- Enclosure protection 10, 11, 11, 74 nection) End stops Actual value - indication on...
  • Page 81 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) ACV 01.2 Non-Intrusive Profibus DP Index Main menu Range of application Mains frequency 11, 11, 73 Rated current Mains voltage 11, 11, 20, 73 Rated power Maintenance...
  • Page 82 SQV 05.2 SQV 14.2 / SQRV 05.2 SQRV 14.2 Control unit: electronic (MWG) Index ACV 01.2 Non-Intrusive Profibus DP Valve attachment Valve position - indication on display Voltage range Wall bracket Warnings - indication on dis- play Wire diameter (fieldbus cable)
  • Page 84 AUMA Riester GmbH & Co. KG P.O. Box 1362 DE 79373 Muellheim Tel +49 7631 809 - 0 Fax +49 7631 809 - 1250 info@auma.com www.auma.com Y009.306/003/en/1.20 For detailed information on AUMA products, refer to the Internet: www.auma.com...

This manual is also suitable for:

Sqv 07.2Sqv 10.2Sqv 12.2Sqv 14.2Sqrv 05.2Sqrv 07.2 ... Show all
