AUMA SQVEx 05.2 Manual
  1. Manuals
  2. Brands
  3. AUMA Manuals
  4. Controller
  5. SQVEx 05.2
  6. Manual

AUMA SQVEx 05.2 Manual

Part-turn actuators
Hide thumbs Also See for SQVEx 05.2:
Table of Contents

Advertisement

Quick Links

Download this manual
Part-turn actuators

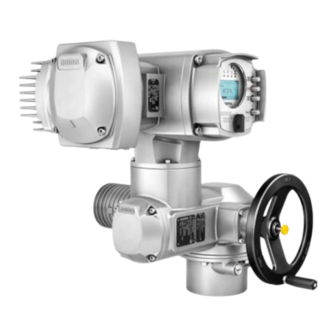

SQVEx 05.2
SQVEx 14.2
SQRVEx 05.2
SQRVEx 14.2
Control unit: electronic (MWG)
with actuator controls
ACVExC 01.2 Non-Intrusive
Multiport valve version
Control
Parallel
Profibus DP
Modbus RTU
Modbus TCP/IP
Foundation Fieldbus
HART
Operation instructions
Assembly, operation, commissioning

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SQVEx 05.2 and is the answer not in the manual?

Questions and answers

Related Manuals for AUMA SQVEx 05.2

Summary of Contents for AUMA SQVEx 05.2

  • Page 1 Part-turn actuators SQVEx 05.2 SQVEx 14.2 SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) with actuator controls ACVExC 01.2 Non-Intrusive Multiport valve version Control Parallel Profibus DP Modbus RTU Modbus TCP/IP Foundation Fieldbus HART Operation instructions Assembly, operation, commissioning...

  • Page 2: Table Of Contents

    This document contains information for assembly, commissioning and maintenance staff. Reference documents: Manual (Operation and setting) of actuator controls ACVExC 01.2 Modbus Manual (Fieldbus device integration) of actuator controls ACVExC 01.2 Modbus Reference documents are available on the Internet at: http://www.auma.com. Table of contents Page Safety instructions.........................
  • Page 3 6.4.3. Fieldbus cables: connect 6.4.4. Terminal compartment: close 6.5. External earth connection 6.6. Accessories for electrical connection 6.6.1. Actuator controls on wall bracket with AUMA LSW 6.6.2. Parking frame Operation..........................7.1. Manual operation 7.1.1. Manual valve operation 7.2. Motor operation 7.2.1.
  • Page 4 Technical data Part-turn actuator 13.2. Technical data Actuator controls 13.3. Tightening torques for screws Spare parts..........................14.1. Part-turn actuators SQVEx 05.2 SQVEx 14.2/SQRVEx 05.2 SQRVEx 14.2 KT/KM 14.2. ACVExC 01.2 KT/KM actuator controls 14.3. ACVExC 01.2 KES actuator controls Index............................

  • Page 5: Safety Instructions

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Safety instructions Safety instructions 1.1. Prerequisites for the safe handling of the product The end user or the contractor must ensure that all legal requirements, directives,...

  • Page 6: Range Of Application

    1, 2, 21, and 22. If temperatures >40 °C are to be expected at the valve flange or the valve stem (e.g. due to hot media), please consult AUMA. Temperatures > 40 °C are not considered with regard to the non-electrical explosion protection.

  • Page 7: Warnings And Notes

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Safety instructions 1.3. Warnings and notes The following warnings draw special attention to safety-relevant procedures in these operation instructions, each marked by the appropriate signal word (DANGER, WARNING, CAUTION, NOTICE).

  • Page 8: Short Description

    App and software Using the AUMA CDT software for Windows-based computers (notebooks or tablets) and the AUMA Assistant App, actuator data can be uploaded and read, settings can be modified and stored. The connection between computer and AUMA actuator is established wireless via Bluetooth interface. With the AUMA Cloud, we provide...
  • Page 9 AUMA actuators at moderate cost. AUMA Cloud The AUMA Cloud collects all device data of all actuators within one site and provides a clear overview at a glance. Detailed analysis provides valuable information on potential maintenance requirements.

  • Page 10: Name Plate

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Name plate ACVExC 01.2 Non-Intrusive Modbus RTU Name plate Figure 4: Arrangement of name plates Actuator name plate Actuator controls name plate Motor name plate Additional plate, e.g. KKS plate (Power Plant Classification System)
  • Page 11 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Name plate Actuator controls name plate Figure 6: Name plate for actuator controls (example) (= manufacturer logo) Type designation Order number Serial number...
  • Page 12 Please always state this number for any product inquiries. On the Internet at http://www.auma.com > Service & Support >myAUMA, we offer a service allowing authorised users to download order-related documents such as wiring diagrams and technical data (both in German and English), inspection certificate and the operation instructions when entering the order number.
  • Page 13 Control via Modbus RTU interface and control voltage for OPEN-CLOSE control via digital inputs (OPEN, STOP, CLOSE) When registered as authorised user, you may use our AUMA Assistant App to scan Data Matrix code the Data Matrix code and directly access the order-related product documents without having to enter order number or serial number.

  • Page 14: Transport, Storage And Packaging

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Transport, storage and packaging ACVExC 01.2 Non-Intrusive Modbus RTU Transport, storage and packaging 4.1. Transport For transport to place of installation, use sturdy packaging. Suspended load! Death or serious injury.

  • Page 15: Storage

    SQRVEx 10.2 SQVEx 12.2/ SQRVEx 12.2 SQVEx 14.2/ SQRVEx 14.2 Indicated weight includes AUMA NORM part-turn actuator with 3-phase AC motor, electrical con- nection in standard version, unbored coupling and handwheel. For other output drive types, consider additional weights. 4.2. Storage Risk of corrosion due to inappropriate storage! Store in a well-ventilated, dry room.

  • Page 16: Assembly

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Assembly ACVExC 01.2 Non-Intrusive Modbus RTU Assembly 5.1. Mounting position When using grease as lubricant, the product described herein can be operated in any mounting position. When using oil instead of grease within the actuator gear housing, perpendicular mounting position is specified whereby the flange is pointing downward.

  • Page 17: Overview On Coupling Variants

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Assembly 5.3.1. Overview on coupling variants Design Figure 11: Valve attachment via coupling Bore with keyway Square bore Bore with two-flats For valve attachments according to EN ISO 5211...
  • Page 18 Valve shaft Grub screw Clamping washer and screw with curved spring lock washer Figure 13: Mounting positions for coupling Table 7: Mounting position of the coupling within fitting dimensions according to AUMA definition Dimensions [mm] SQ(V)Ex 05.2 SQ(V)Ex 07.2 SQ(V)Ex 10.2 SQ(V)Ex 12.2...
  • Page 19 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Assembly Fit actuator. If required, slightly turn actuator until splines of coupling engage. Figure 14: Ensure that the spigot (if provided) fits uniformly in the recess and that the flanges Information are in complete contact.

  • Page 20: Mounting Positions Of Local Controls

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Assembly ACVExC 01.2 Non-Intrusive Modbus RTU 5.4. Mounting positions of local controls Figure 15: Mounting positions The mounting position of the local controls is implemented according to the order.

  • Page 21: Electrical Connection

    It can plan also be requested from AUMA (state order number, refer to name plate) or downloaded directly from the Internet (http://www.auma.com). The actuators are suitable for use in TN and TT networks with directly grounded star Permissible networks point for nominal voltages up to maximum 480 V AC.
  • Page 22 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Electrical connection ACVExC 01.2 Non-Intrusive Modbus RTU Table 9: Protection on site Part-turn actu- 3-phase AC motor 380 V 480 V/50 Hz 60 Hz Fuse ator Consumed nominal...

  • Page 23: Overview Of Auma Electrical Connections

    Baud rate (kbit/s) Maximum cable length: between two network participants for copper cables 10/100 Mbits/s 100 m 6.2. Overview of AUMA electrical connections The section below provides an overview of the different electrical connections described in the chapters to follow.

  • Page 24: Kt/Km Electrical Connection

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Electrical connection ACVExC 01.2 Non-Intrusive Modbus RTU Table 13: Versions of the AUMA plug/socket connector Electrical con- Figure Properties For description nection and assembly refer to chapter Plug-in integral terminal connection ➭...

  • Page 25: Open Terminal Compartment

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Electrical connection Technical data Table 14: KT/KM/KL electrical connection Power contacts Control contacts No. of contacts max. 6 + PE conductors Designations 1 to 36, 37 to 50 U1, V1, W1, U2, V2, W2, Support terminals max.

  • Page 26: Cable Connection

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Electrical connection ACVExC 01.2 Non-Intrusive Modbus RTU Insert cable glands suitable for connecting cables. Information: When selecting cable glands observe type of protection (with Ex e or Ex d approval) and enclosure protection IP (refer to name plate).
  • Page 27 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Electrical connection Connect cables according to order-related wiring diagram. Figure 21: Connect cables to terminal carrier Fitting control cables into spring clamp terminals...
  • Page 28 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Electrical connection ACVExC 01.2 Non-Intrusive Modbus RTU In case of a fault, electric shock due to presence of hazardous voltage if the PE conductor is NOT connected! Risk of death or serious injury! Connect all protective earth conductors.

  • Page 29: Fieldbus Cables: Connect

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Electrical connection 6.3.3. Fieldbus cables: connect 6.3.3.1. Fieldbus connection for line topology Figure 23: Line topology □ Channel 1: Further fieldbus devices follow ▣...
  • Page 30 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Electrical connection ACVExC 01.2 Non-Intrusive Modbus RTU Connection with support terminals for line topology When using solid cables (single or multiple strands), additional support terminals must be used.The support terminals (terminal blocks) are mounted above the terminal carrier.

  • Page 31: 6.3.3.2. Fieldbus Connection For Loop Topology

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Electrical connection 6.3.3.2. Fieldbus connection for loop topology Figure 28: Loop topology □ Channel 1 ▣ Channel 2 Last fieldbus device ■ Fieldbus cable from previous device (input)

  • Page 32: Close Terminal Compartment

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Electrical connection ACVExC 01.2 Non-Intrusive Modbus RTU Figure 30: Terminal assignment of support terminals (2-channel) [XK] Terminal assignment according to wiring diagram (customer connection) □ Channel 1 ▣...

  • Page 33: Kes Electrical Connection

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Electrical connection Fit cover [1] and fasten screws [2] evenly crosswise. For design in flameproof enclosure (Ex d): Risk of explosion in case of damage to flameproof enclosure! Risk of death or serious injury! Handle cover and housing parts with care.

  • Page 34: Terminal Compartment: Open

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Electrical connection ACVExC 01.2 Non-Intrusive Modbus RTU Technical data Table 16: KES electrical connection Power contacts Control contacts No. of contacts max. 3 + protective earth connection at...

  • Page 35: Cable Connection

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Electrical connection Insert cable glands suitable for connecting cables. Information: When selecting cable glands, observe type of protection (with Ex e or Ex d approval) and enclosure protection IP (Refer to name plate).
  • Page 36 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Electrical connection ACVExC 01.2 Non-Intrusive Modbus RTU In case of a fault, electric shock due to presence of hazardous voltage if the PE conductor is NOT connected! Risk of death or serious injury! Connect all protective earth conductors.

  • Page 37: Fieldbus Cables: Connect

    I or II) □ Channel 1: Further fieldbus devices will follow (standard) ▣ Channel 2: Further fieldbus devices will follow (AUMA redundancy I or II only) Last fieldbus device ■ Fieldbus cable from previous device (input) Fieldbus cable to next device (output)

  • Page 38: Terminal Compartment: Close

    2.1 Connect termination resistor for channel 1 through linking the terminals 31 - 33 and 32 - 34 (standard) 2.2 For AUMA redundancy I or II: Connect termination resistor for channel 2 through linking the terminals 35 - 37 and 36 - 38.

  • Page 39: External Earth Connection

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Electrical connection 6.5. External earth connection Figure 39: Earth connection for part-turn actuator Figure 40: Earth connection for wall bracket External earth connection (U-bracket) for connection to equipotential compensation.

  • Page 40: Accessories For Electrical Connection

    Electrical connection of actuator (XA) Electrical connection of actuator controls (XK) Application Using the wall bracket and the AUMA LSW (cable set for wall bracket), actuator controls can be mounted separately from the actuator. If the actuator cannot be accessed safely.
  • Page 41 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Electrical connection For protection against touching the bare contacts and against environmental influences. Risk of explosion! Risk of death or serious injury! Prior to opening the device (removing the plug) ensure that the device is free of gas and voltage! Do NOT switch on voltage in potentially explosive atmospheres.

  • Page 42: Operation

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Operation ACVExC 01.2 Non-Intrusive Modbus RTU Operation 7.1. Manual operation For purposes of setting and commissioning, in case of motor or power failure, the actuator may be operated manually. Manual operation is engaged by an internal change-over mechanism.

  • Page 43: Actuator Operation From Remote

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Operation Figure 43: Local controls Push button for operation command in direction OPEN Push button STOP Push button for operation command in direction CLOSE...

  • Page 44: Menu Navigation Via Push Buttons (For Settings And Indications)

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Operation ACVExC 01.2 Non-Intrusive Modbus RTU Set selector switch to position Remote control (REMOTE). Now, the actuator can be remote-controlled via fieldbus. For actuators equipped with a positioner, it is possible to change over between OPEN...

  • Page 45: Menu Layout And Navigation

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Operation Push buttons Navigation sup- Functions port on display [4] C Setup Enter Main menu Cancel process Return to previous display Backlight The display is illuminated in white during normal operation. It is illuminated in red in case of a fault.

  • Page 46: User Level, Password

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Operation ACVExC 01.2 Non-Intrusive Modbus RTU Figure 48: Direct display (example) Display indicates in the bottom row: Go to Press push button Go to. Display indicates: Go to menu M0000 Use push buttons Up ▲...

  • Page 47: Password Change

    A timeout for incorrect password entry is provided with actuator controls.This prevents unauthorised access by systematic trials. The timeout is active for incorrect entries via the local controls as well as incorrect entries via our software tools (AUMA CDT, AUMA Assistant App). After five subsequent incorrect trials, further entry is inhibited...

  • Page 48: Language In The Display

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Operation ACVExC 01.2 Non-Intrusive Modbus RTU timeout is displayed on the screen. An individual timeout is available for each user level. This means that you may still log on with user level 3 if user level 4 is inhibited.

  • Page 49: Indications

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Indications Indications 8.1. Indications during commissioning When switching on the power supply, all LEDs on the local controls illuminate for LED test approx. 1 second. This optical feedback indicates that the voltage supply is connected to the controls and all LEDs are operable.

  • Page 50: Feedback Indications From Actuator And Valve

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Indications ACVExC 01.2 Non-Intrusive Modbus RTU Figure 54: Information in the status bar (top) Operation mode Error symbol (only for faults and warnings) ID number: S = Status page...

  • Page 51: Status Indications According To Auma Classification

    (P1, P2, ...) selected position (1, 2, ...) ) no position selected Actual position value 8.2.2. Status indications according to AUMA classification These indications are available if parameter Diagnostic classific. M0539 is set to AUMA. Warnings (S0005) If a warning has occurred, the display shows S0005: the number of warnings occurred a blinking question mark after approx.

  • Page 52: Status Indications According To Namur Recommendation

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Indications ACVExC 01.2 Non-Intrusive Modbus RTU Figure 61: Warnings For further information, please also refer to <Corrective action>. Not ready REMOTE (S0006) The S0006 display shows indications of the Not ready REMOTE group.
  • Page 53 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Indications For further information, please also refer to <Corrective action>. Function check (S0009) The S0009 indication shows function check indications according to the NAMUR recommendation NE 107.

  • Page 54: Indication Lights Of Local Controls

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Indications ACVExC 01.2 Non-Intrusive Modbus RTU 8.3. Indication lights of local controls Figure 68: Arrangement and signification of indication lights Marking with symbols (standard) Marking with figures 1...

  • Page 55: Signals (Output Signals)

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Signals (output signals) Signals (output signals) 9.1. Signals via Modbus RTU The feedback signals via Modbus RTU can be read using the appropriate Modbus function codes.

  • Page 56: Commissioning (Basic Settings)

    The actuator type is set in the factory but can be modified at a later date. Required user level: Specialist (4) or higher. Customer settings M0041 Multiport valve M1140 Actuator type M1142 Default value: Actuator type set in the factory Setting ranges: Selection list of all AUMA actuators...

  • Page 57: Gear Reduction Ratio: Set/Check

    Required user level: Specialist (4) or higher. Customer settings M0041 Multiport valve M1140 Reduction ratio M1143 Default values: GS50.3 Setting values: Table 22: Selection of gearboxes supported by AUMA Sizes GS 50.3 GS 125.3 Sizes GS160.3 GS 250.3 GS50.3 GS160.3 GS63.3...

  • Page 58: Positions (Of Valve Ports): Define/Check

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Commissioning (basic settings) ACVExC 01.2 Non-Intrusive Modbus RTU Multiport valve M1140 MPV home port M1162 Set? Successful homeport setting is visualised by a black circle on the actuator controls display: .

  • Page 59: Operate To Position Via Push Buttons Of The Local Controls

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Commissioning (basic settings) Position 7 = 270.0 Position 8 = 315.0 The positions must be set in subsequent sequence (descending/ascending). 10.1.6. Operate to position via push buttons of the local controls To operate to a position via push buttons of the local controls, status indication S0017 must be shown (refer to <Indications in the display>).

  • Page 60: Operate To Position From Remote

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Commissioning (basic settings) ACVExC 01.2 Non-Intrusive Modbus RTU Symbol Set positions (of valve ports) (P1, P2, ...) selected position (1, 2, ...) / N/A No position has been selected.

  • Page 61: Dead Band

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Commissioning (basic settings) A digital input is used to select the desired operation to the next port including the direction of operation. Thus, up to 16 ports can be approached in both directions, even without fieldbus connection with only 2 inputs.

  • Page 62: 10.1.12. Hysteresis For Signalling Intermediate Positions: Set

    Figure 74: Switching behaviour for signalling behaviours B, C, D and hysteresis 3.0°. Switch-on point ( ● ) Switch-off point (○) Pulse duration = 2 times XT + hysteresis Required user level: AUMA (6). Customer settings M0041 Multiport valve M1140...

  • Page 63: Set Torque Switching

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Commissioning (basic settings) Hysteresis M1148 Default values: 0.5° for all 16 intermediate positions Setting range:0.0° to 5.0° (degree) 10.2. Set torque switching Once the set torque is reached, the torque switches will be tripped (overload protection of the valve).

  • Page 64: Operating Time (Internal): Set

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Commissioning (basic settings) ACVExC 01.2 Non-Intrusive Modbus RTU Enter password (→ enter password). Display shows the set value. The bottom row indicates: Edit Esc Press Edit. Change value 11.
  • Page 65 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Commissioning (basic settings) Press push button C Setup and hold it down for approx. 3 seconds. Display goes to main menu and indicates: ▶ Display...

  • Page 66: Fieldbus Address (Slave Address), Baud Rate, Parity And Monitoring Time: Set

    Parity/stop bit = Even, 1 stop bit Monitoring time = 15 seconds Information Parameter MD2 slave address is only available if AUMA redundancy I (option) is available. For further settings and information e.g. on redundancy, refer to Manual (Device integration).

  • Page 67: Corrective Action

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Corrective action Corrective action 11.1. Faults during commissioning Table 24: Faults during operation/commissioning Fault Description/cause Remedy Mechanical position indicator cannot Reduction gearing is not suitable for actuator swing Set gear stage of the reduction gearing.
  • Page 68 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Corrective action ACVExC 01.2 Non-Intrusive Modbus RTU Table 26: Warnings and Out of specification Indication on display Description/cause Remedy Config. warning Collective signal 06: Press push button Details to display a list of indi- Possible cause: vidual indications.
  • Page 69 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Corrective action Warnings and Out of specification Indication on display Description/cause Remedy Torque wrn CLOSE Limit value for torque warning in direction CLOSE Check parameter Wrn torque CLOSEM0769, re-set exceeded.
  • Page 70 Selector switch is not in position REMOTE. Set selector switch to position REMOTE. Service active Operation via service interface (Bluetooth) and Exit service software. AUMA CDT service software. Disabled Actuator is in operation mode Disabled. Check setting and status of function <Local controls enable>.

  • Page 71: Fuses

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Corrective action Table 29: Signal on temperature monitoring of PTC tripping device active Possible causes Remedy for ambient temperatures below 30 °C Heating system (wiring diagram designation:...

  • Page 72: Servicing And Maintenance

    Therefore, we recommend contacting our service. Only perform servicing and maintenance tasks when the device is switched off. AUMA AUMA offers extensive service such as servicing and maintenance as well as Service & Support customer product training. For the contact addresses, refer to our website (www.auma.com).

  • Page 73: Maintenance

    Removing the plug: Remove electrical connection. Cover [1] and plug-in type frame [4] or connection frame [5] remain together. Seal open plug/socket connection, e.g. using AUMA protection cover and parking frame. Fitting the plug/socket Clean sealing faces of plug/socket connector and housing.

  • Page 74: Disposal And Recycling

    Electrical connection cables must be placed properly and in perfect condition. Thoroughly touch up any possible damage to painting to prevent corrosion. Original paint in small quantities can be supplied by AUMA. Cables and wire entries, blanking plug, cable glands, plugs etc. have to be checked for correct tightness and sealing.

  • Page 75: Technical Data

    Information on the customer-specific version, refer to the order-related data sheet. The technical data sheet can be downloaded from the Internet in both German and English at ht- tp://www.auma.com (please state the order number). 13.1. Technical data Part-turn actuator Features and functions...
  • Page 76 Standard: AUMA Ex plug/socket connector (KT); screw-type motor terminals; push-in type control terminals Option: AUMA Ex plug/socket connector with screw-type terminals (KP), max. 38 control terminals AUMA Ex plug/socket connector with terminal blocks (KES) Threads for cable entries Standard: Metric threads...

  • Page 77: Technical Data Actuator Controls

    AUMA silver-grey (similar to RAL 7037) Option: Other colours on request Lifetime AUMA part-turn actuators meet or exceed the lifetime requirements of EN ISO 22153. Detailed inform- ation can be provided on request. Sound pressure level < 72 dB (A)
  • Page 78 Redundancy (option) Redundant line topology with universal redundancy behaviour according to AUMA redundancy I or II Redundant loop topology in combination with SIMA Master Station Max. number of actuators with actuator controls per redundant loop: 247 units Max.
  • Page 79 Motor protection evaluation PTC tripping device (TMS module) in combination with PTC thermistors within actuator motor Electrical connection Standard: AUMA Ex plug/socket connector (KT); screw-type motor terminals; push-in type control terminals Options: AUMA Ex plug/socket connector with terminal blocks (KES)
  • Page 80 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Technical data ACVExC 01.2 Non-Intrusive Modbus RTU General data of the Modbus RTU interface Communication protocol Modbus RTU according to IEC 61158 and IEC 61784 Network topology Line (fieldbus) structure. When using repeaters, tree structures can also be implemented.
  • Page 81 IP68 with IEC 60529 Terminal compartment additionally sealed against interior (double sealed) According to AUMA definition, enclosure protection IP68 meets the following requirements: Depth of water: maximum 8 m head of water Continuous immersion in water: maximal 96 hours Up to 10 operations during immersion Modulating duty is not possible during immersion.

  • Page 82: Tightening Torques For Screws

    SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Technical data ACVExC 01.2 Non-Intrusive Modbus RTU Further information Weight Approx. 12 kg (with AUMA Ex plug/socket connector) EU Directives ATEX Directive 2014/34/EU Machinery Directive 2006/42/EC Low Voltage Directive 2014/35/EU EMC Directive 2014/30/EU...

  • Page 83: Spare Parts

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Spare parts Spare parts 14.1. Part-turn actuators SQVEx 05.2 SQVEx 14.2/SQRVEx 05.2 SQRVEx 14.2 KT/KM...
  • Page 84 ACVExC 01.2 Non-Intrusive Modbus RTU Please state device type and our order number (see name plate) when ordering spare parts. Only original AUMA spare parts should be used. Failure to use original spare parts voids the warranty and exempts AUMA from any liability. Representation of spare parts may slightly vary from actual delivery.

  • Page 85: Acvexc 01.2 Kt/Km Actuator Controls

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Spare parts 14.2. ACVExC 01.2 KT/KM actuator controls...
  • Page 86 ACVExC 01.2 Non-Intrusive Modbus RTU Please state device type and our order number (see name plate) when ordering spare parts. Only original AUMA spare parts should be used. Failure to use original spare parts voids the warranty and exempts AUMA from any liability. Representation of spare parts may slightly vary from actual delivery.

  • Page 87: Acvexc 01.2 Kes Actuator Controls

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Spare parts 14.3. ACVExC 01.2 KES actuator controls...
  • Page 88 ACVExC 01.2 Non-Intrusive Modbus RTU Please state device type and our order number (see name plate) when ordering spare parts. Only original AUMA spare parts should be used. Failure to use original spare parts voids the warranty and exempts AUMA from any liability. Representation of spare parts may slightly vary from actual delivery.

  • Page 89: Index

    SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Index Index Earth connection Electrical connection 21, 76 Electrical connections Accessories (electrical con- nection) Enclosure protection 10, 11, 76, 81 Actuator operation from re-...
  • Page 90 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) Index ACVExC 01.2 Non-Intrusive Modbus RTU Main menu Parity Mains/voltage range/fre- Parking frame quency range Password Mains frequency Password change Mains voltage 21, 75 Password entry Maintenance 6, 72, 73...
  • Page 91 SQVEx 05.2 SQVEx 14.2/ SQRVEx 05.2 SQRVEx 14.2 Control unit: electronic (MWG) ACVExC 01.2 Non-Intrusive Modbus RTU Index Technical data Temperature monitoring Temperature protection Terminal plan 21, 76 Terminal plan for actuator Test certificate Timeout Torque - indication on display...
  • Page 92 AUMA Riester GmbH & Co. KG P.O. Box 1362 DE 79373 Muellheim Tel +49 7631 809 - 0 Fax +49 7631 809 - 1250 info@auma.com www.auma.com Y009.685/003/en/1.23 For detailed information on AUMA products, refer to the Internet: www.auma.com...

This manual is also suitable for:

Sqvex 14.2Sqrvex 05.2Sqrvex 14.2
