6.6 Information Screens

6.7 Differential Pressure

The Reglo ICC can be used for continuous duty at a maximum differential pressure of 1.0 bar
(smaller tube sizes and/or lever type cassettes allow higher pressures).

6.8 When the Pump is Idle

When the pump is idle, we recommend releasing the tubing cassette from the pump head.
Releasing the cassette on the right side is suffi cient. This helps to protect the tubing from
unnecessary strain and prolongs its service life. However, a siphoning effect can occur when
the tubing cassette is released from the pump head. Use caution to prevent the fl uid from
fl owing back to the reservoir.

7. Over Current Protection

The Reglo ICC features an external power supply that has overload protection as well as a
combined circuit breaker and On/Off switch on the pump. There are NO replaceable fuses or
service items inside the pump. This system is designed to disable power to the pump drive in
case of excessive current to prevent damage. When an overload condition occurs, the pump
will power down and it is recommend to immediately switch the pump OFF and unplug the
pump from the wall. Before the pump is re-started, it is most important to check the reason
for the overload (e.g. excess differential pressure etc.). Only when the cause of the overload
has been detected and the failure corrected may the pump be started again. If the condition
persists, contact an ISMATEC
REGLO ICC - ENGLISH , REV. D, 14-036-E

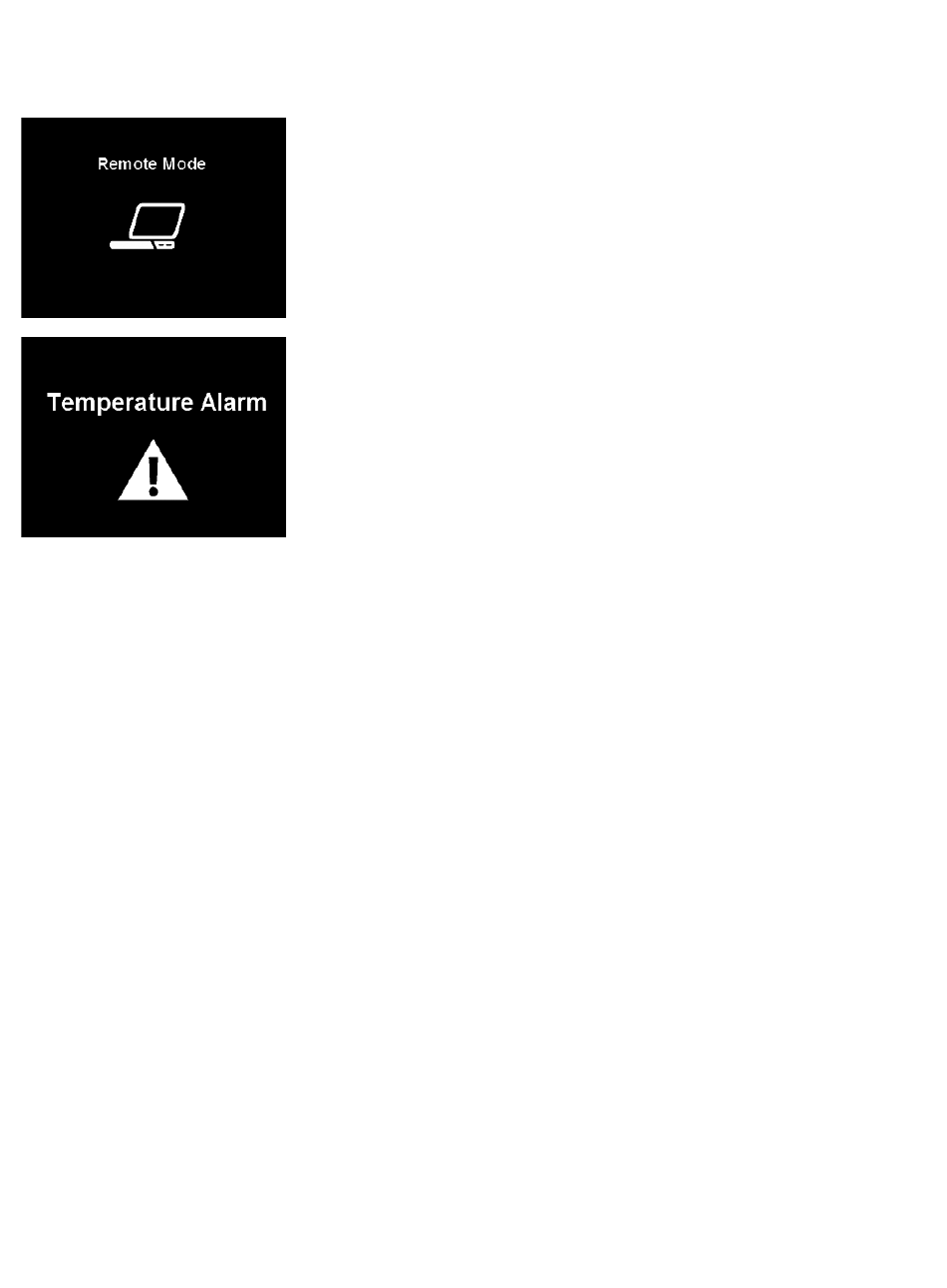

Indicates that the pump is being remotely
controlled by a PC via USB connection.
Indicates that the internal temperature has
exceeded a safe threshold and pumping will stop
automatically to protect the pump. Turn the pump
power switch OFF and check your parameters,
differential pressure, and pump head for blockage.
The pump will not operate in an overheated
condition. Allow the pump to cool before turning
the power switch back ON.
® technical support representative immediately.
13 of 36
