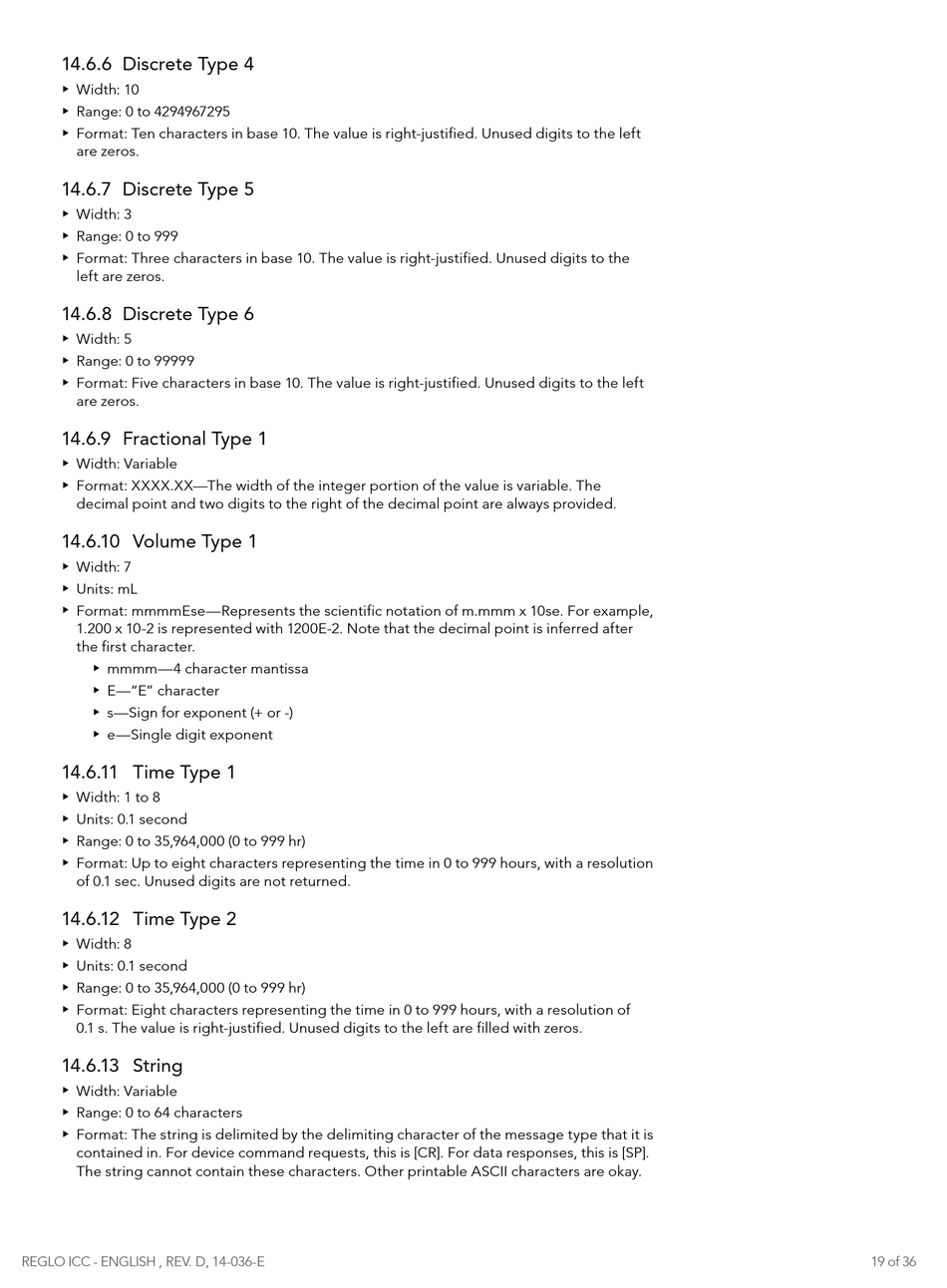

14.6.6 Discrete Type 4

Width: 10

 Range: 0 to 4294967295
 Format: Ten characters in base 10. The value is right-justified. Unused digits to the left
are zeros.

14.6.7 Discrete Type 5

 Width: 3
 Range: 0 to 999
 Format: Three characters in base 10. The value is right-justified. Unused digits to the
left are zeros.

14.6.8 Discrete Type 6

 Width: 5
 Range: 0 to 99999
 Format: Five characters in base 10. The value is right-justified. Unused digits to the left
are zeros.

14.6.9 Fractional Type 1

 Width: Variable
 Format: XXXX.XX—The width of the integer portion of the value is variable. The
decimal point and two digits to the right of the decimal point are always provided.

14.6.10 Volume Type 1

 Width: 7
 Units: mL
 Format: mmmmEse—Represents the scientific notation of m.mmm x 10se. For example,
1.200 x 10-2 is represented with 1200E-2. Note that the decimal point is inferred after
the first character.
 mmmm—4 character mantissa
 E—"E" character
 s—Sign for exponent (+ or -)
 e—Single digit exponent

14.6.11 Time Type 1

 Width: 1 to 8
 Units: 0.1 second
 Range: 0 to 35,964,000 (0 to 999 hr)
 Format: Up to eight characters representing the time in 0 to 999 hours, with a resolution
of 0.1 sec. Unused digits are not returned.

14.6.12 Time Type 2

 Width: 8
 Units: 0.1 second
 Range: 0 to 35,964,000 (0 to 999 hr)
 Format: Eight characters representing the time in 0 to 999 hours, with a resolution of
0.1 s. The value is right-justified. Unused digits to the left are filled with zeros.

14.6.13 String

 Width: Variable
 Range: 0 to 64 characters
 Format: The string is delimited by the delimiting character of the message type that it is
contained in. For device command requests, this is [CR]. For data responses, this is [SP].
The string cannot contain these characters. Other printable ASCII characters are okay.
REGLO ICC - ENGLISH , REV. D, 14-036-E 19 of 36
