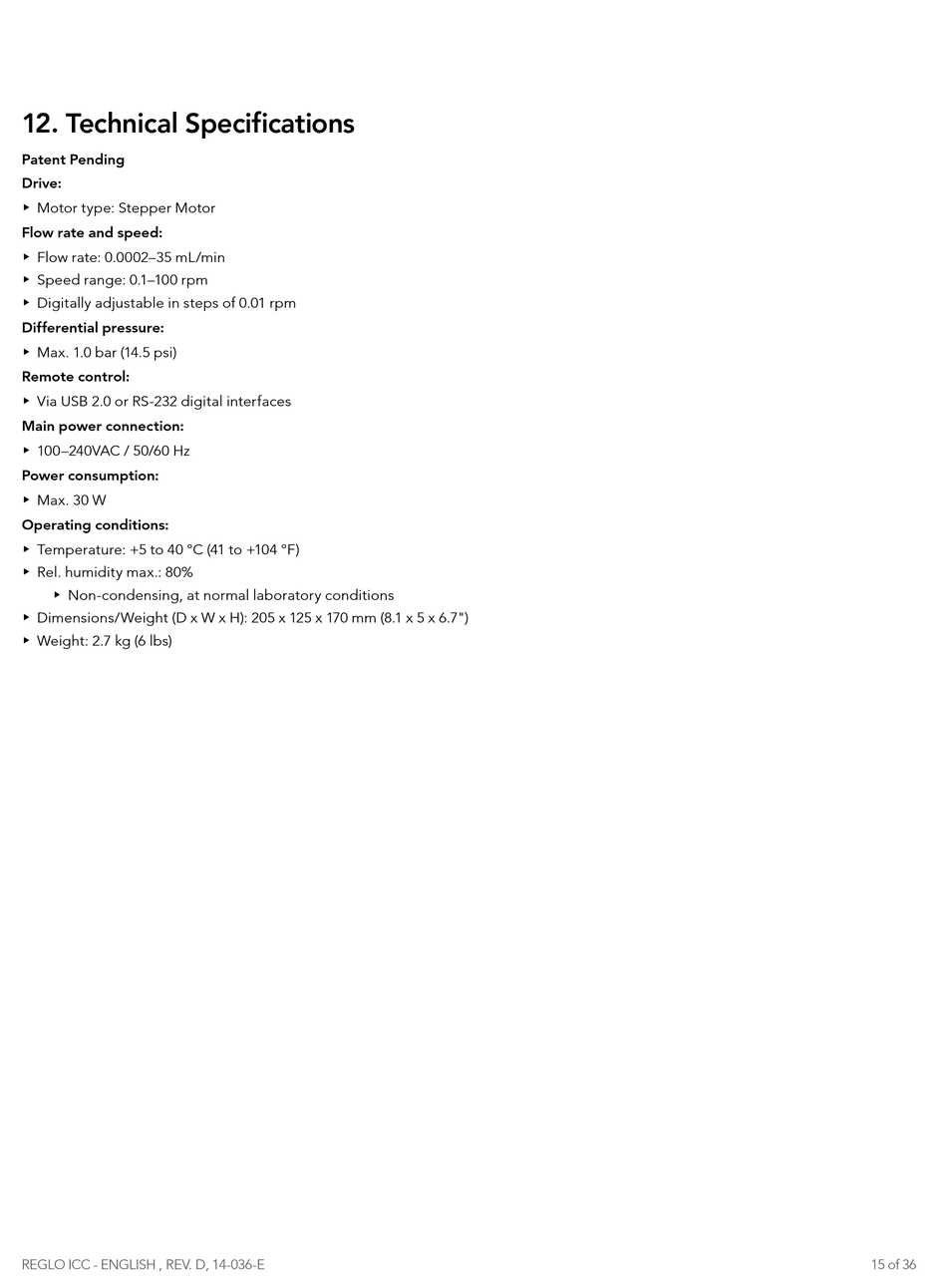

12. Technical Specifications

Patent Pending
Drive:
 Motor type: Stepper Motor
Flow rate and speed:
 Flow rate: 0.0002–35 mL/min
 Speed range: 0.1–100 rpm
 Digitally adjustable in steps of 0.01 rpm
Differential pressure:
 Max. 1.0 bar (14.5 psi)
Remote control:
 Via USB 2.0 or RS-232 digital interfaces
Main power connection:
 100–240VAC / 50/60 Hz
Power consumption:
 Max. 30 W
Operating conditions:
 Temperature: +5 to 40 °C (41 to +104 °F)
 Rel. humidity max.: 80%
Non-condensing, at normal laboratory conditions

 Dimensions/Weight (D x W x H): 205 x 125 x 170 mm (8.1 x 5 x 6.7")
 Weight: 2.7 kg (6 lbs)
REGLO ICC - ENGLISH , REV. D, 14-036-E 15 of 36
