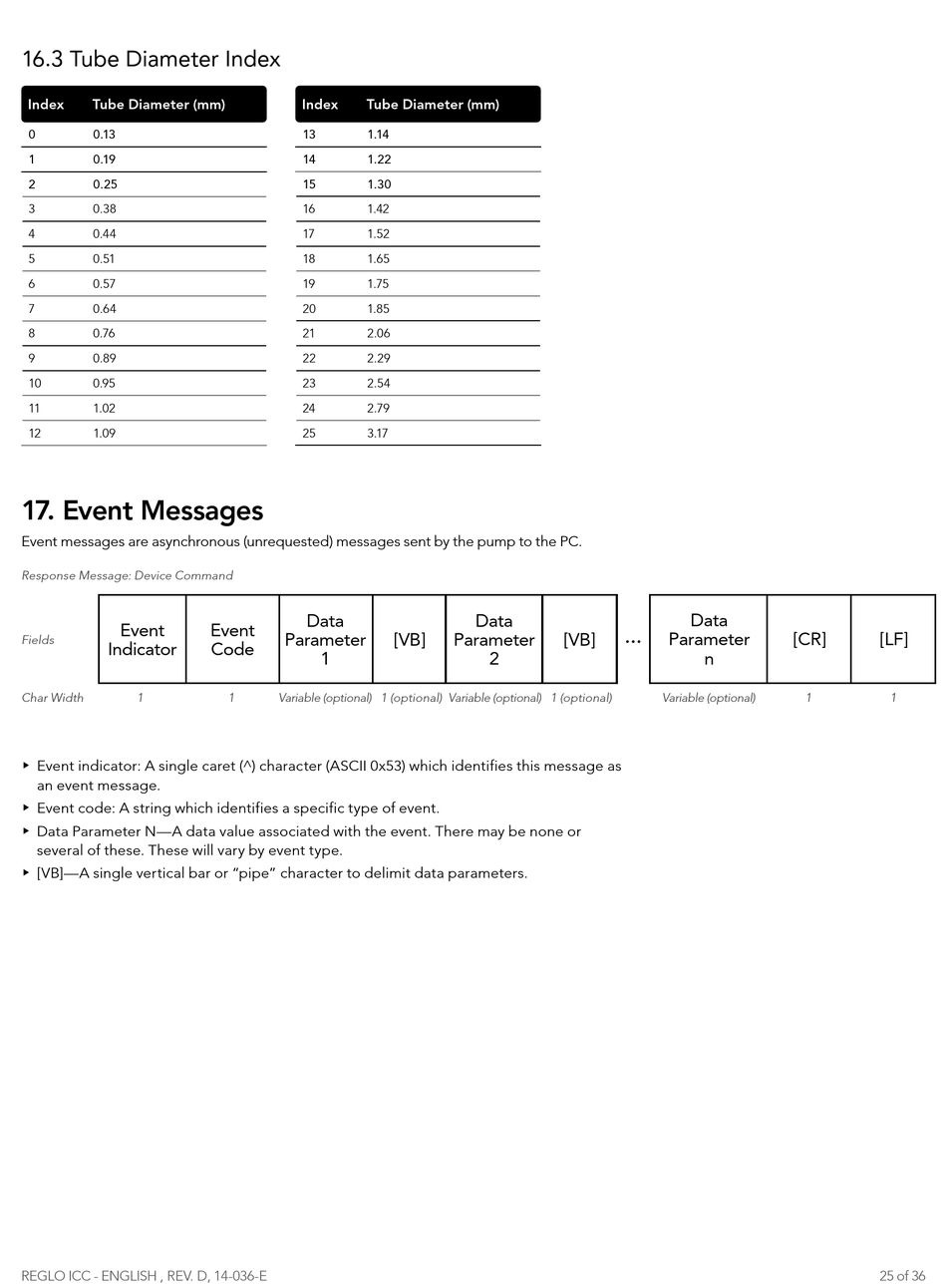

16.3 Tube Diameter Index

Index Tube Diameter (mm)
0 0.13
1 0.19
2 0.25
3 0.38
4 0.44
5 0.51
6 0.57
7 0.64
8 0.76
9 0.89
10 0.95
11 1.02
12 1.09
17. Event Messages
Event messages are asynchronous (unrequested) messages sent by the pump to the PC.
Response Message: Device Command
Event
Fields
Indicator
Char Width 1
 Event indicator: A single caret (^) character (ASCII 0x53) which identifies this message as
an event message.
 Event code: A string which identifies a specific type of event.
 Data Parameter N—A data value associated with the event. There may be none or
several of these. These will vary by event type.
 [VB]—A single vertical bar or "pipe" character to delimit data parameters.
REGLO ICC - ENGLISH , REV. D, 14-036-E
Index Tube Diameter (mm)
13 1.14
14 1.22
15 1.30
16 1.42
17 1.52
18 1.65
19 1.75
20 1.85
21 2.06
22 2.29
23 2.54
24 2.79
25 3.17
Data
Event
Parameter
Code
1
1 Variable (optional) 1 (optional) Variable (optional) 1 (optional)
Data
[VB] Parameter [VB]
2
Data
...
Parameter [CR]
n
Variable (optional)
[LF]
1 1
25 of 36
