4.7

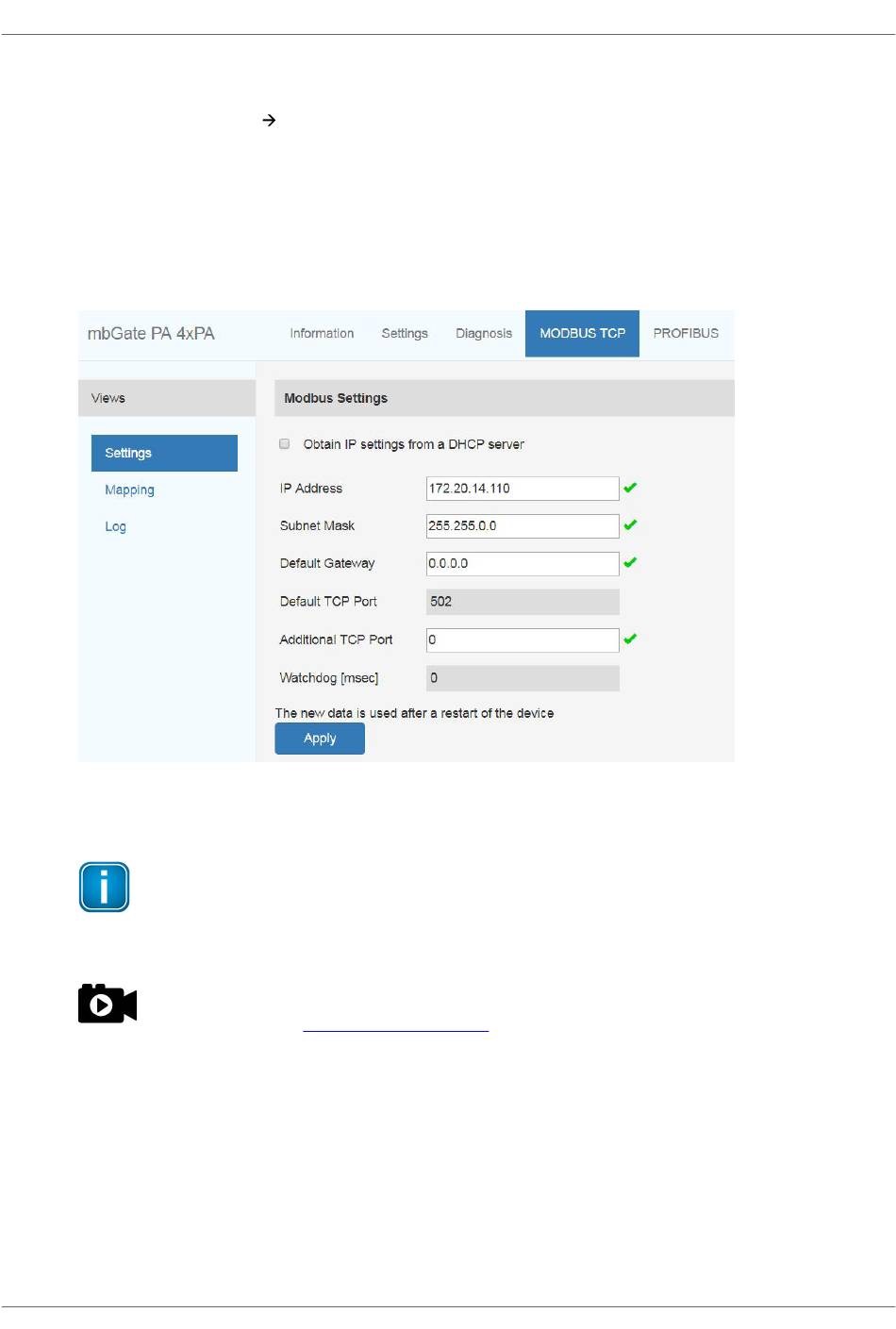

Configuring MODBUS

1. Select MODBUS TCP
2. Enter a dedicated IP address and subnet mask or tick the checkbox Obtain IP settings from DHCP
server.
3. Click [Apply].
4. Click [Restart Device] in top menu bar left to the Logout option.
4.8

Configuring PROFIBUS

Version EN-092019-1.21
Settings.
Note
As all three gateways have the same PROFIBUS master interface, the configuration
instructions for mbGate PA also apply to mbGate PB and mbGate DP.
Video
Watch the video PROFIBUS configuration
interface of your gateway.
to find out how to configure the PROFIBUS master
Chapter 4 - Configuration
27
