Installation
3
3.1
Hardware installation
Note
With an ambient temperature above 55 °C at the place of installation it is very likely that the
temperatures of connecting cables will increase if the cables are installed in an unfavourable
position. In such cases, measure the temperature to ensure that the service temperature of
the cables is not exceeded or use cables sustaining high temperatures of at least 90 °C.
3.1.1
Mounting and dismounting
Note
Make sure the Modbus Gateway is mounted in such a way that the power supply can be easily
disconnected.
Note
Depending on the installation position, the maximum ambient operating temperature may
differ. See Section
Installation and inspection
Installation and inspection must be carried out by qualified personnel only (personnel qualified
according to the German standard TRBS 1203 - Technical Regulations for Operational Safety).
The definition of terms can be found in IEC 60079-17.

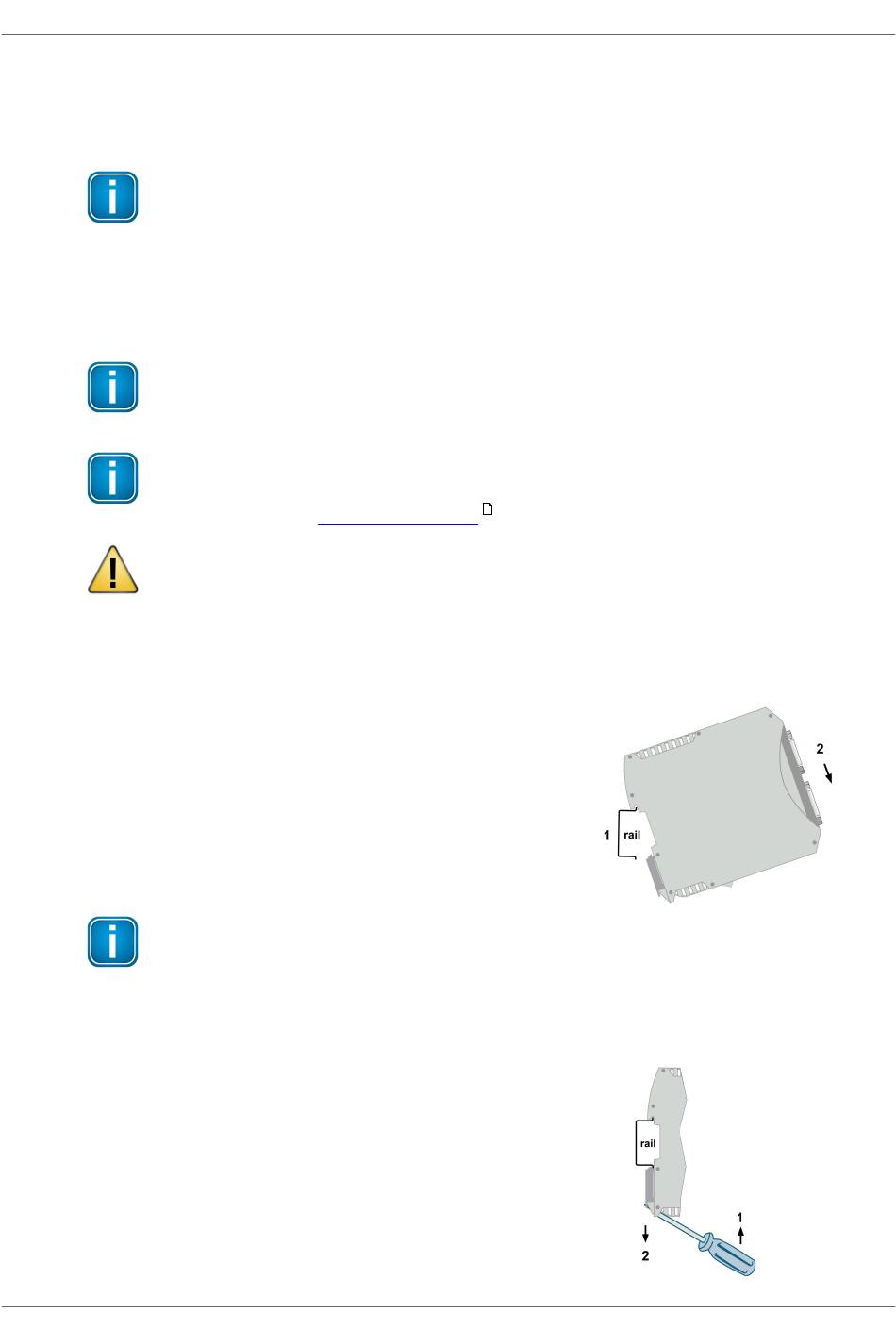

Mounting
1. Hook the upper notch of the cut-out on the back of the
Modbus Gateway into a 35 mm DIN rail.
2. Press the Modbus Gateway down towards the rail until it
slides into place over the lip of the locking bar.
Note
Do not put stress on the system by bending or torsion.
Dismounting
1. Slide a screwdriver diagonally under the housing into the
locking bar.
2. Lever the screwdriver upwards, pull the locking bar
downwards - without tilting the screwdriver - and move the
gateway upwards off the rail.
Version EN-092019-1.21
Installation positions
14
for details.
Chapter 3 - Installation
11
