Installing or Replacing a Barcode Reader

5016072 A
If you need to install, move, or replace the instrument barcode reader,
follow the instructions below.

Required Equipment

• 3 small pan-head hex screws (included with barcode reader)
• Barcode reader with cable (visible laser Class II)
• 2 mm allen wrench for barcode screws (included)
• 3 mm allen wrench for opening side panel if necessary
(included)
To install a barcode reader
1. Turn off the power to the StakMax microplate handler and the
reader.
2. To remove the front cover, pull the cover down. See

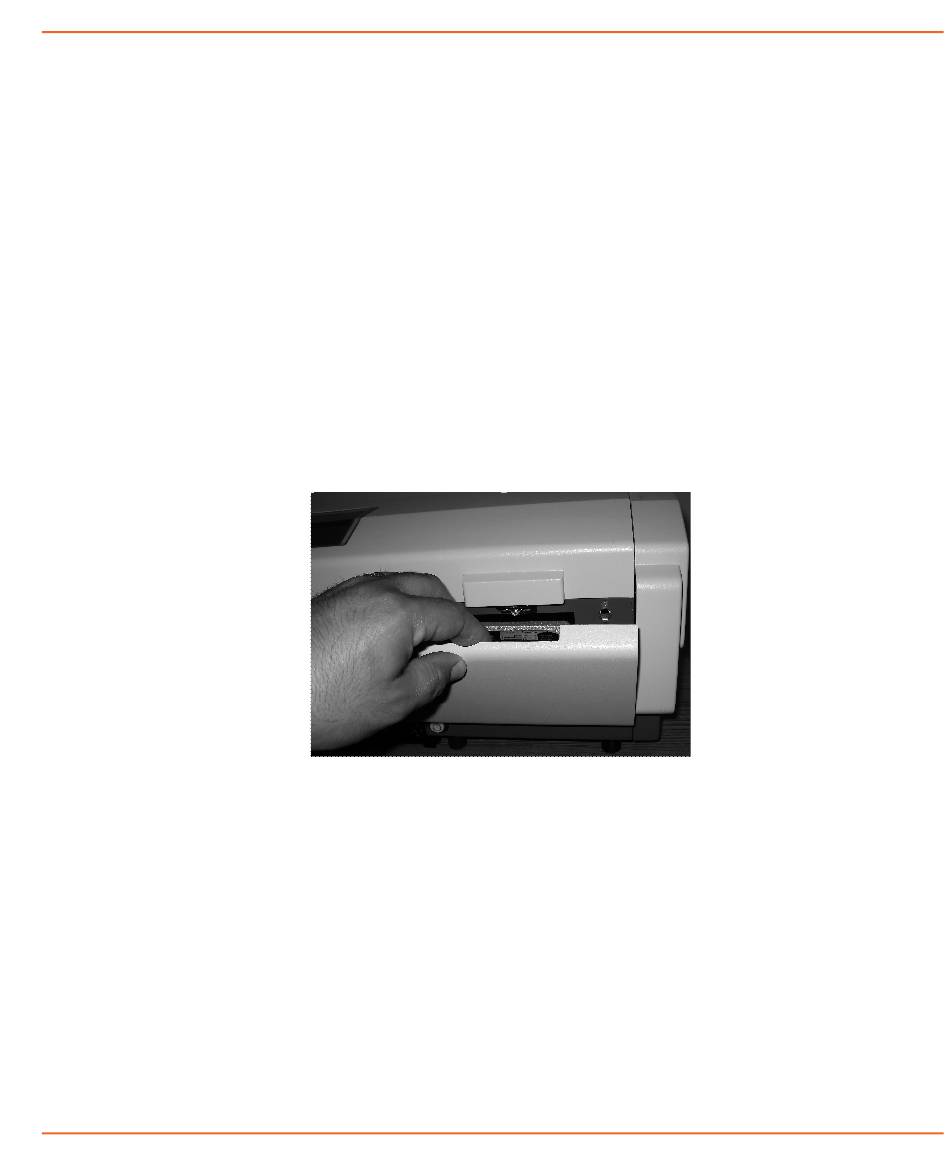

Figure 2-38 Removing the front cover
StakMax Microplate Handling System User Guide
Figure 2-38.
47
