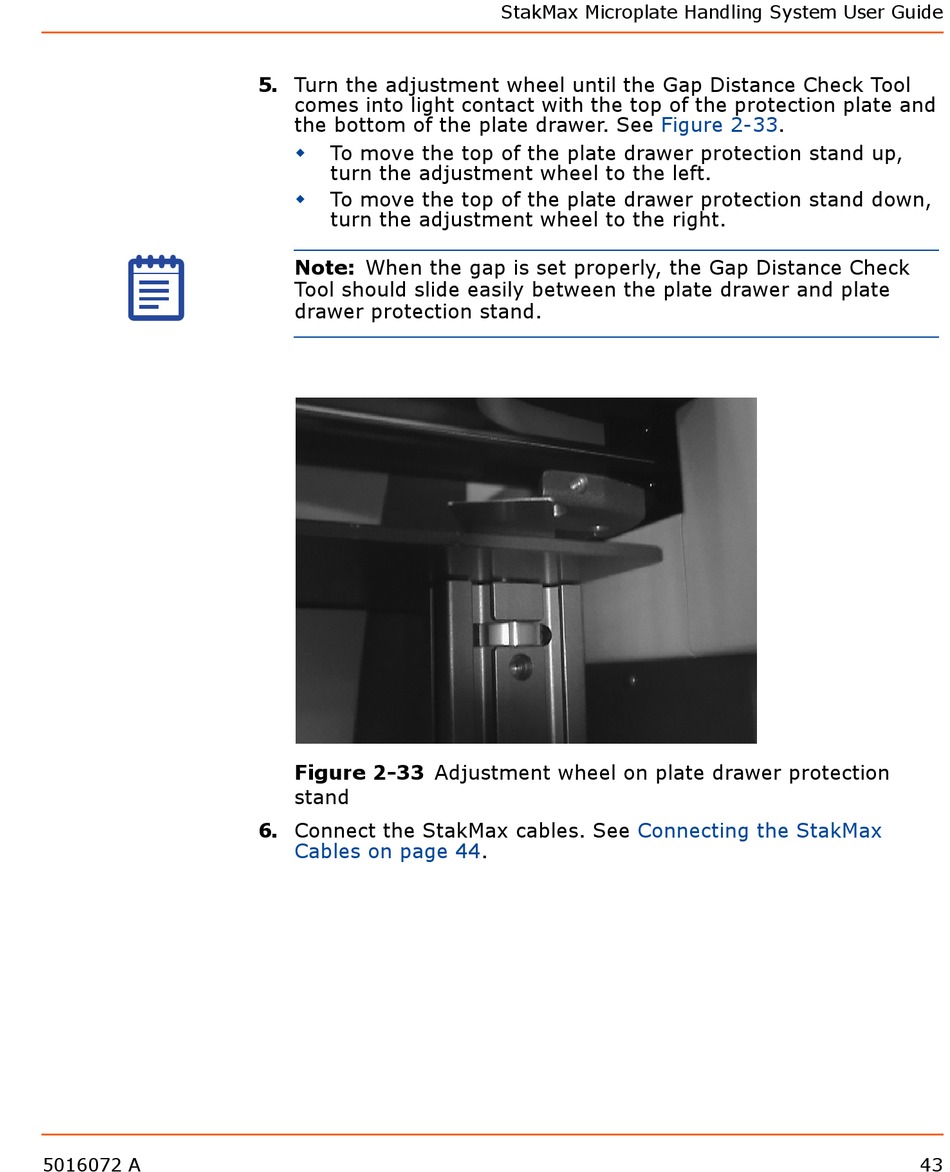

5. Turn the adjustment wheel until the Gap Distance Check Tool
comes into light contact with the top of the protection plate and
the bottom of the plate drawer. See
To move the top of the plate drawer protection stand up,

turn the adjustment wheel to the left.
To move the top of the plate drawer protection stand down,

turn the adjustment wheel to the right.
Note: When the gap is set properly, the Gap Distance Check
Tool should slide easily between the plate drawer and plate
drawer protection stand.
Figure 2-33 Adjustment wheel on plate drawer protection
stand
6. Connect the StakMax cables. See
Cables on page
StakMax Microplate Handling System User Guide
44.
Figure 2-33.
Connecting the StakMax
