6. Re-use the foot and the washer and insert a black spacer
bushing between the foot and the reader, and then use a new
screw from the accessory kit to reattach the foot to the base of
the reader. See

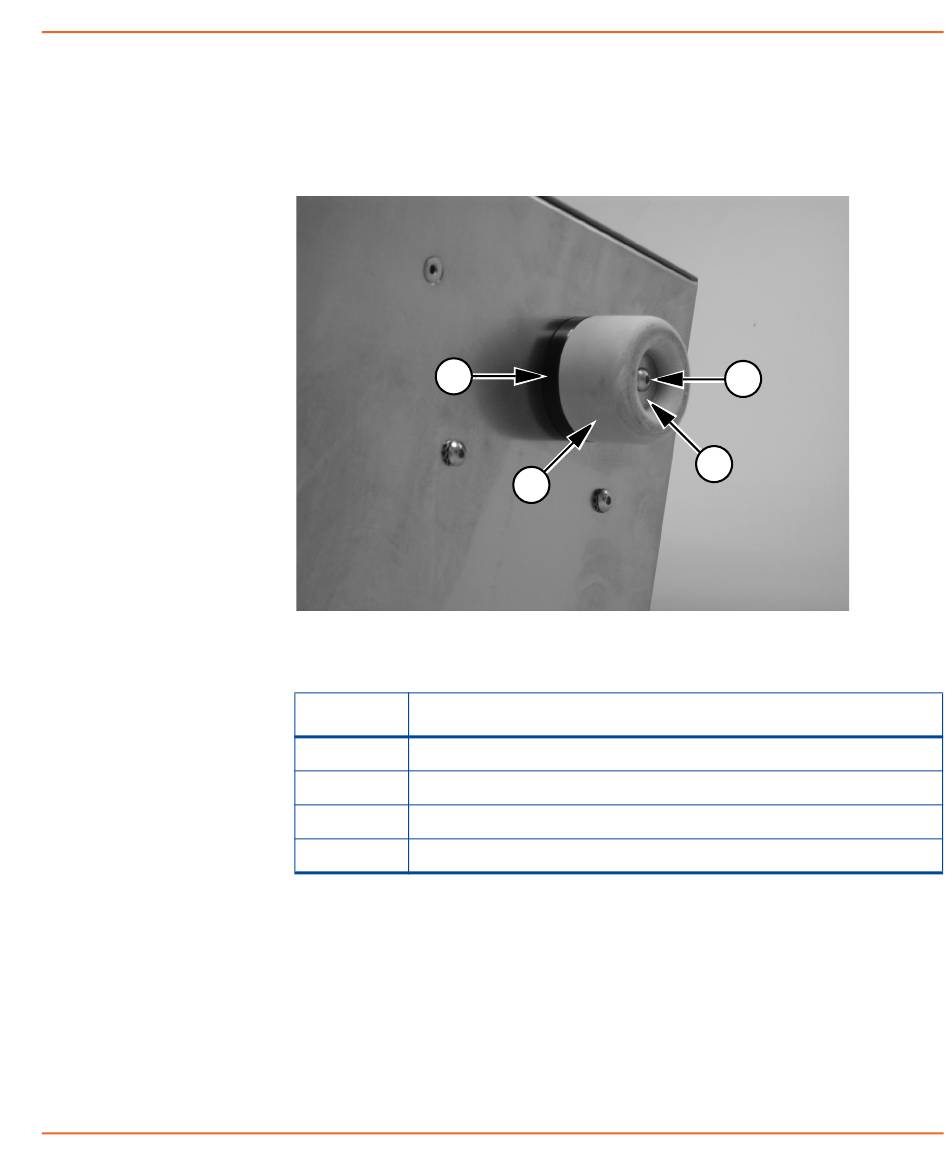

Figure 2-16 Rear foot and spacer bushing installed on the
reader
Item Description
1 Spacer Bushing
2 Foot
3 Washer
4 Screw
7. Repeat Step 5
8. Use the 2.5 mm hex key screwdriver to remove the front feet
from the reader.
9. Position the baseplate at the front of the plate reader (see
Figure 2-17 for correct position).
StakMax Microplate Handling System User Guide
Figure 2-16.
1
2
and Step 6 with the other rear foot.
