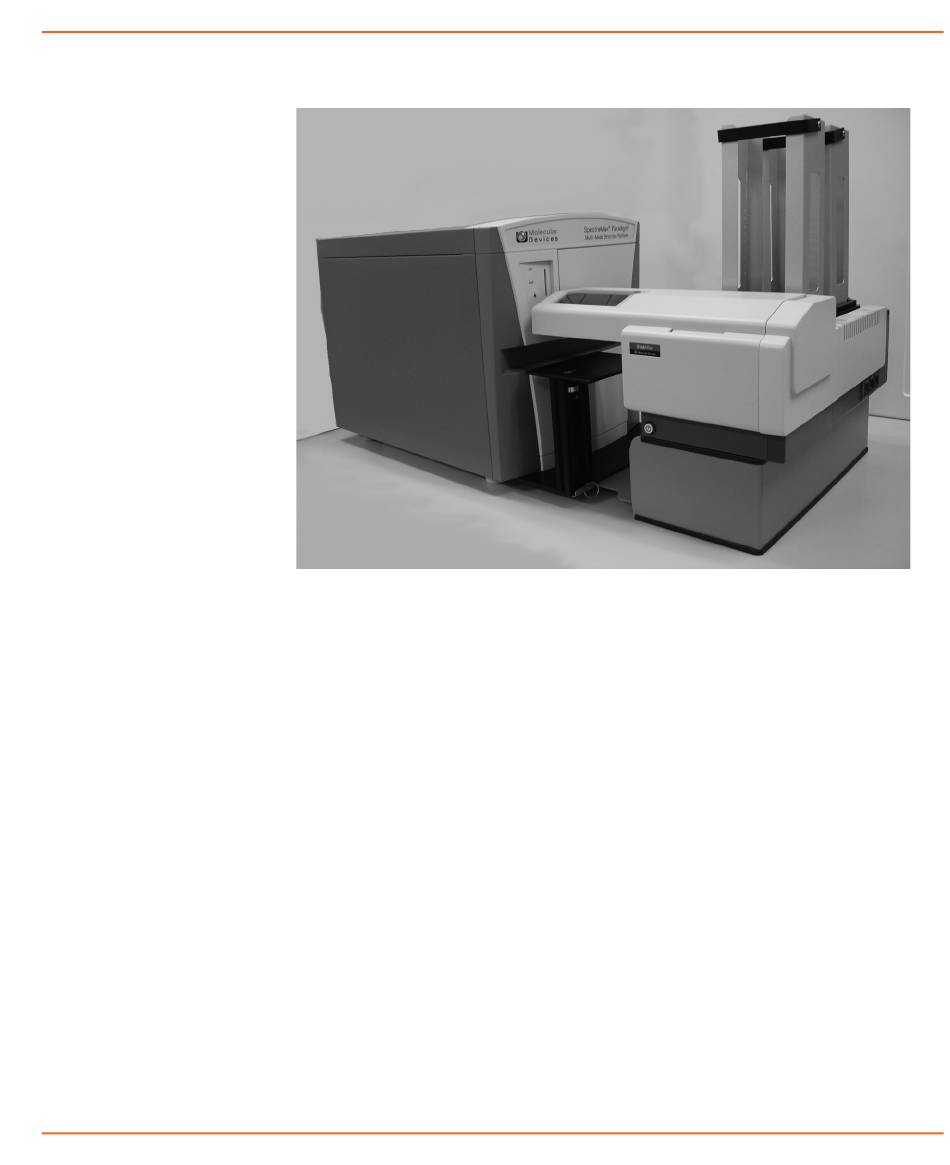

Figure 2-26 Completed front installation
Installing the Plate Drawer Protection Stand
Depending on whether you are performing a side-by-side installation or
a front installation, use the clamp on the appropriate side of the
baseplate to secure the plate drawer protection stand to the plate
reader.
• For a side-by-side installation, install the plate drawer protection
stand on the right side of the baseplate.
• For a front installation, install the plate drawer protection stand
on the left side of the baseplate.
