Connecting the AquaMax Baseplate

You must connect the StakMax microplate handler to the AquaMax
plate washer with the provided baseplate and mounting hardware.
Required equipment
• Baseplate
• Allen wrench
• 2 Phillips-head screws
To connect the AquaMax baseplate
1. Place the microplate handler on a hard, level surface. Make sure
that the power supply and round serial port are accessible.
2. Align the AquaMax baseplate with the L brackets on the StakMax
microplate handler. Make sure that This side up is visible on
the baseplate. See

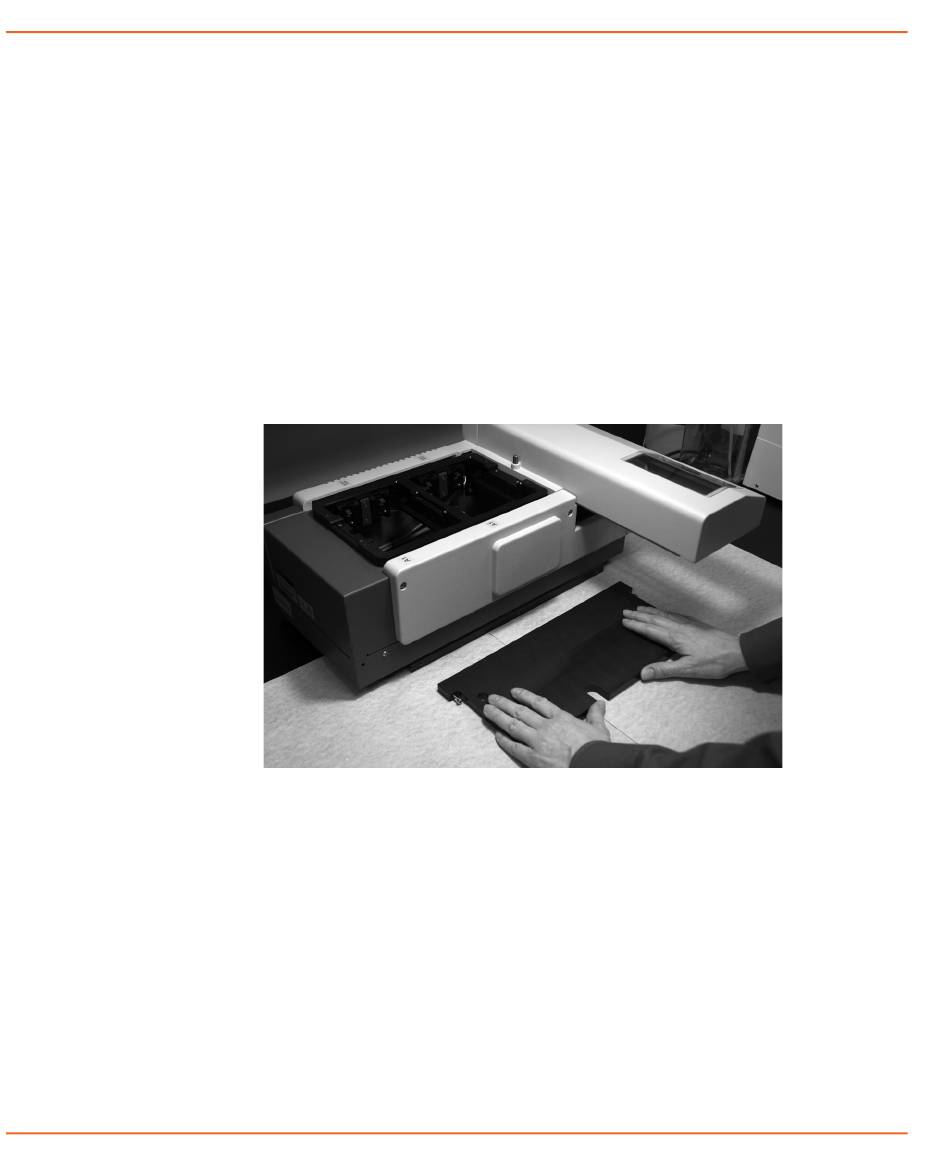

Figure 2-11 Aligning AquaMax baseplate to StakMax bracket.
3. Use the two captive screws that correspond to the two holes on
the L bracket to attach the AquaMax baseplate to the L brackets
Figure 2-11.
