NOTE: Depending on the type of thermal management unit, included components, and control settings of your
system, all of the options listed may not be available on your iCOM display.
2. Before you touch a specific analog input, the properties panel lists the inputs along with their configuration
status:
• Factory Std indicates that the input is configured for a factory installed component such as a pressure
transducer.
• Not Config indicates that the input is configurable.
3. Locate the DIP switches on the control board and program the input type according to Table 9.1 below.
Figure 9.1 below shows the switch and on/off setting.
Table 9.1 DIP Switch Settings for Analog Input Connection
Analog Input Number
Control Board Switch Number
Analog Input device value
NOTE: Up is on, down is off on the DIP switch. Switches 9 and 10 are not used.

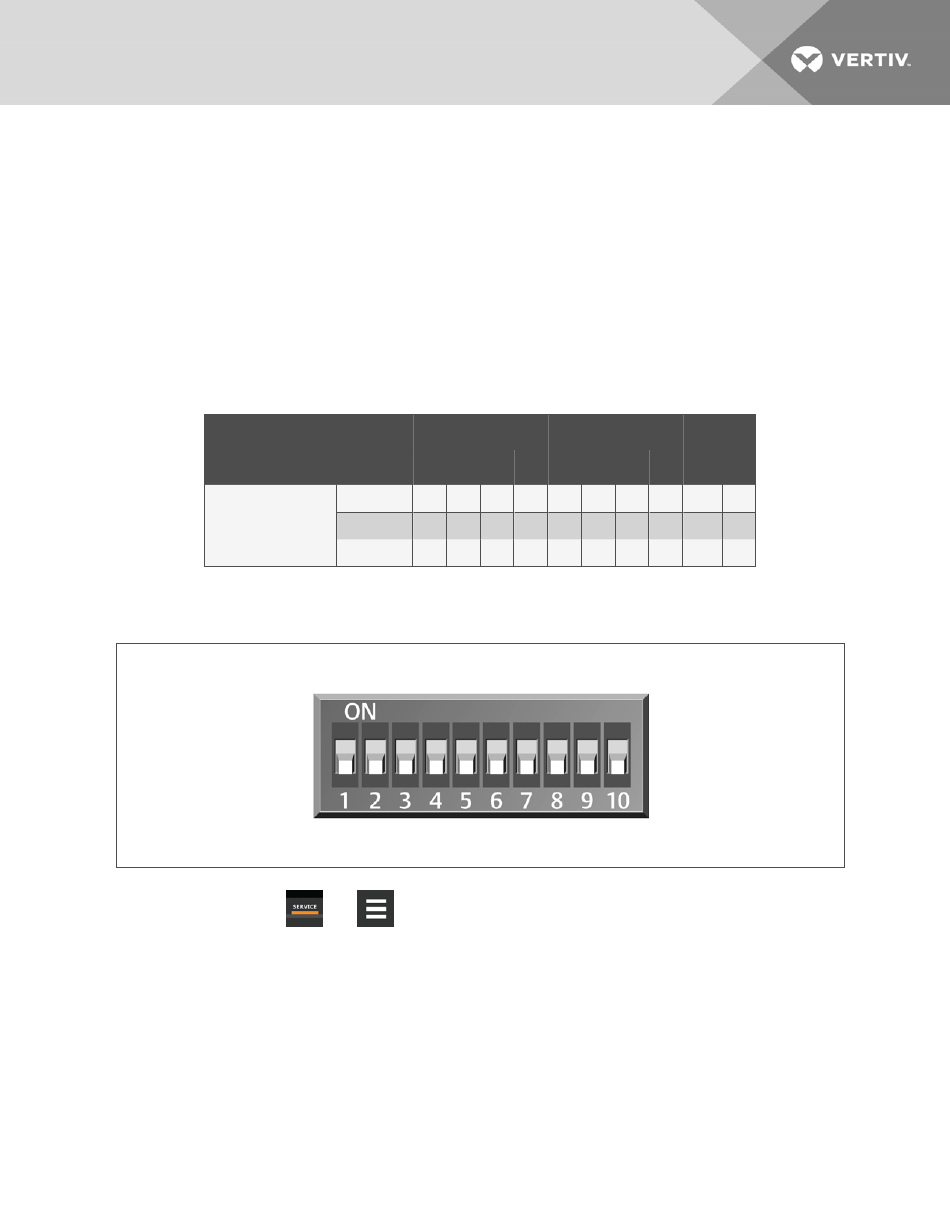

Figure 9.1 Analog Connection DIP Switches on the Control Board
4. On iCOM, touch
touch an Analog Input. The ANALOG INPUT PROPERTIES for that device displays.
5. Select the configuration and touch Save.The analog input is configured.
NOTE: The Airflow, Static Pressure and Fluid Flow analog-input settings configure factory options and require special
instruction. Contact Vertiv™ Technical Support at 1-800-543-2778.
9 Configuring Auxiliary Devices
Input #1 Input #2
1 2 3
0 – 10 VDC Off Off Off
0 – 5 VDC On Off On
4 – 20 mA On On On
, then > Auxiliary Device Setup > Analog Input > Customer Analog Inputs, the
Input #3 Input #4 Not Used
4 5 6 7 8 9
Off Off Off Off Off —
Off On Off On Off —
On On On On On —
10
—
—
—
