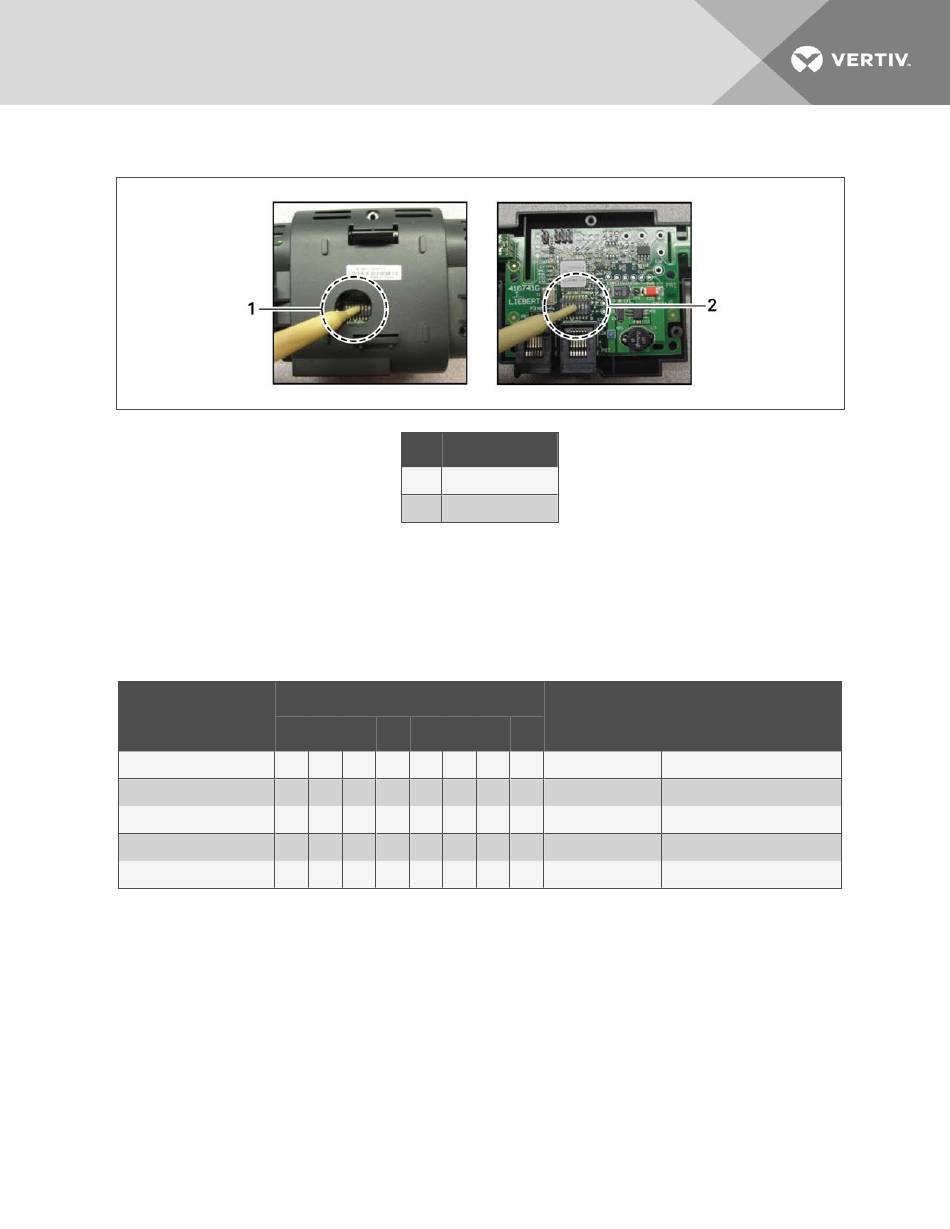

Figure 12.16 DIP Switch Opening/DIP Switches Inside of 2T Sensor
3. Referring to Table 12.4 below, and using the non-conductive tool, set the DIP switches for each sensor to its
number in the chain (from sticker applied in step 1).
Figure 12.17 on the next page, shows a representation of the DIP switches.
4. Confirm that the DIP switches are set correctly for each sensor, and replace the housing cover if necessary.
Table 12.4 DIP Switch Settings for Supply Air Aggregation Sensors
Sensor Number/Address
A
B
C
D
E
13 Hardware Installation
Item Description
1 Hole in sensor housing
2 Cover removed
DIP Switch Position
1 2 3 4 5 6
On Off Off Off On Off
Off On Off Off On Off
On On Off Off On Off
Off On On On On Off
On On On On On Off
CANbus Node ID
7 8
Off Off 17
Off Off 18
Off Off 19
Off Off 30
Off Off 31
Alternate Use
Temperature/Humidity
Temperature/Humidity
Temperature/Humidity
Fluid inlet/outlet temperature
Fluid inlet/outlet temperature
