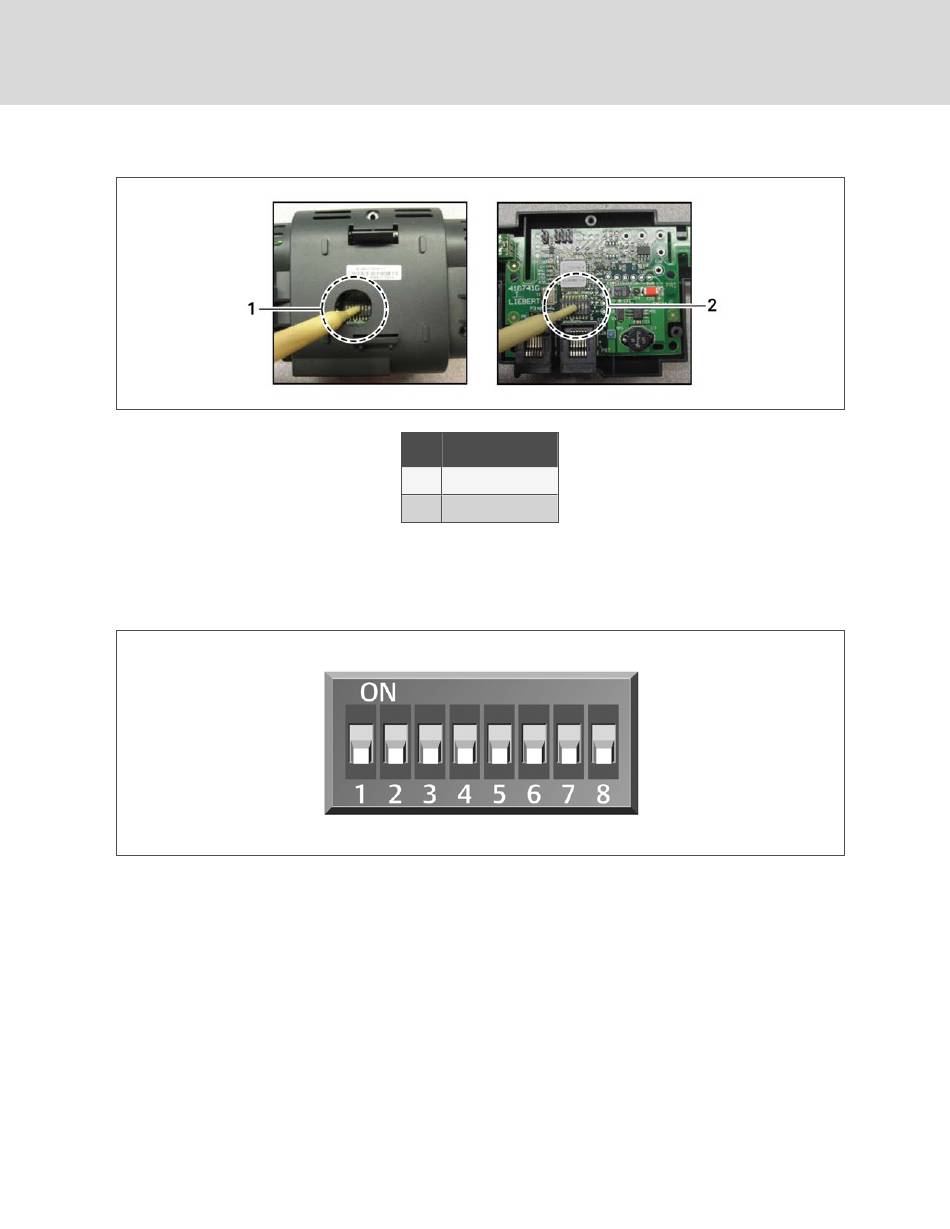

Figure 12.13 Locating DIP Switches in 2T Sensor
NOTE: Up is on, down is off on the DIP switch.
Figure 12.14 DIP Switches in 2T Sensor
2. Once DIP switches are set, refer to
with step 3.
3. On iCOM:
• In the Service menu, touch Auxiliary Device Setup > Sensors > Fluid Sensors > Fluid 2T SensorCW T.
The SENSOR PROPERTIES panel opens.
• In Fluid Sensor Type, select the type of 2T sensor.
4. At the fluid inlet and outlet, use a field-supplied temperature sensor to verify the temperature readings,
compare the iCOM readings to the actual measured temperatures, and calibrate as needed.
• If inlet and outlet temperature readings in iCOM are reversed based on the field measurements, use Fluid
Sensor 1/2 Placement to swap the readings.
5. Touch Save. The fluid temperature sensor settings are saved.
120
Item Description
1 Hole in sensor housing
2 Cover removed
Terminating the Last Sensor on the CANbus Link on page 112, then continue
