b. If ring, use spare cable provided and make new connections on it same as
old. Use wiring diagram provided. Retest.
c. Re-test if continuity is good now, re-connect all and perform VNC test. If test
passes you are done.
d. If still NO GO on continuity test across a ring after use of spare cable, you
have a bad ring. Contact MaxFlight and order a new one.
20. Install new ring and run a VNC test to verify the repair.
21. If still having issues with network see NOTE at beginning of procedure. It could be
one of the computer motherboards.
3-1D Checking Command Program operation (On motion computer)
This is the main operation command console window. This window opens when you
selected to run the command program from the motion computer desktop. There is a lot of
information that is shown here that can help you determine some faults and error messages
displayed. To get into the sub program you have to get the keyboard, have this window open and
press F2. This opens a subprogram hierarchy, tabs that can be opened to see settings that are
required for correct operation of command and dispatch alike.
1. Obtain a correct IP address plan for this machine having issues. This was given as
part of the software package at delivery. If not available call MaxFlight Corp. give
place of business and machine number EH-***. They will e-mail or tell you over the
phone the numbers you need.
2. The IP's for both the motion and on-board computer are required so you can compare
these values with the ones set in settings pages you are about to view.
3. Have a MaxFlight technician or software technician on-line to further assist you
when reviewing these settings on the information given in settings pages.
62

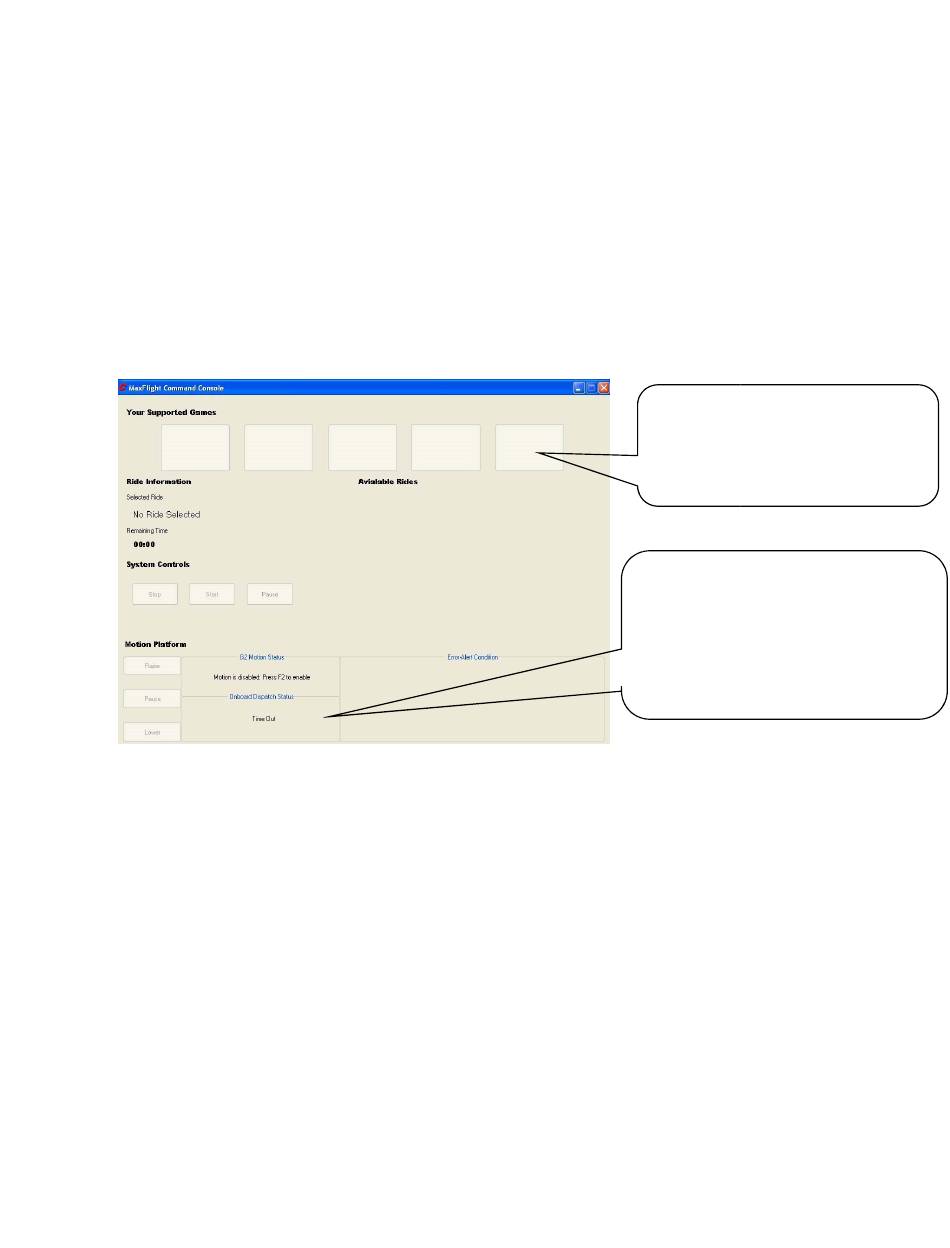

Supported games windows.
Information comes from on-
board computer via dispatch
program over LAN.
On-board dispatch status window.
Ready:
Time Out:
failed to get supported game info.
Loading:
on the on-board
Game loaded all is OK
Command inquiry
G ame selected is loading
