1-4C On-Board Audio/Video System
1-5 What Causes the Unit To: Raise , Lower, Stop, Pitch, Roll. etc.

1-5A Raise

When operator clicks on "RAISE" it sends a signal to the computer that in turn sends a
relay command to the power box activating the RAISE relays. Power is allowed to the hydraulic
motor that drives the pump which raises the lift cylinders on both sides of the machine. The
pump will run till both up sensors are closed. This will start a timer allowing overdriving up for
a second. This insures that both sides of the machine are all the way up.

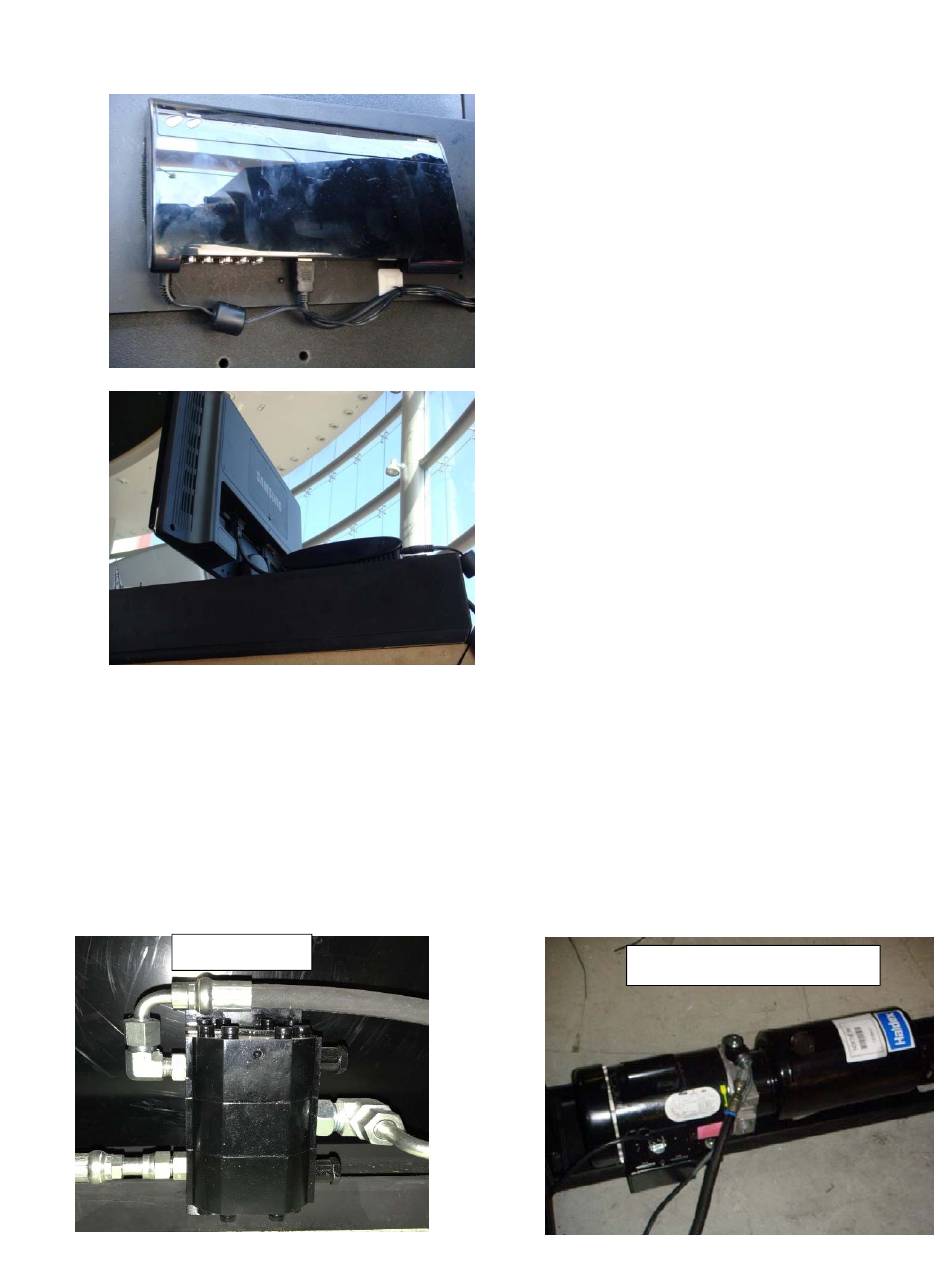

Flow Divider
HD Video transmitter mounted on left backside
of steel back. Models may vary.
A-frame behind the TV. Models may vary.
Another TV located top of other A-frame
cabinetry.
44
HD video receiver mounted on left top of
Hydraulic Pump Assembly
