CHAPTER 1 – THEORY OF OPERATION
1-1

Introduction

To understand why certain steps have to be performed while running this motion
simulator you should know how the unit does what it does. You also need to know how
each part plays its part so when something should go wrong, it can be corrected with
minimum down time.
NOTE: The Inverters must be matched at the factory to the power available in the
field installation. The motors can be rewired for various inputs but the inverters
cannot.
1-2 ELECTRICAL U.S.

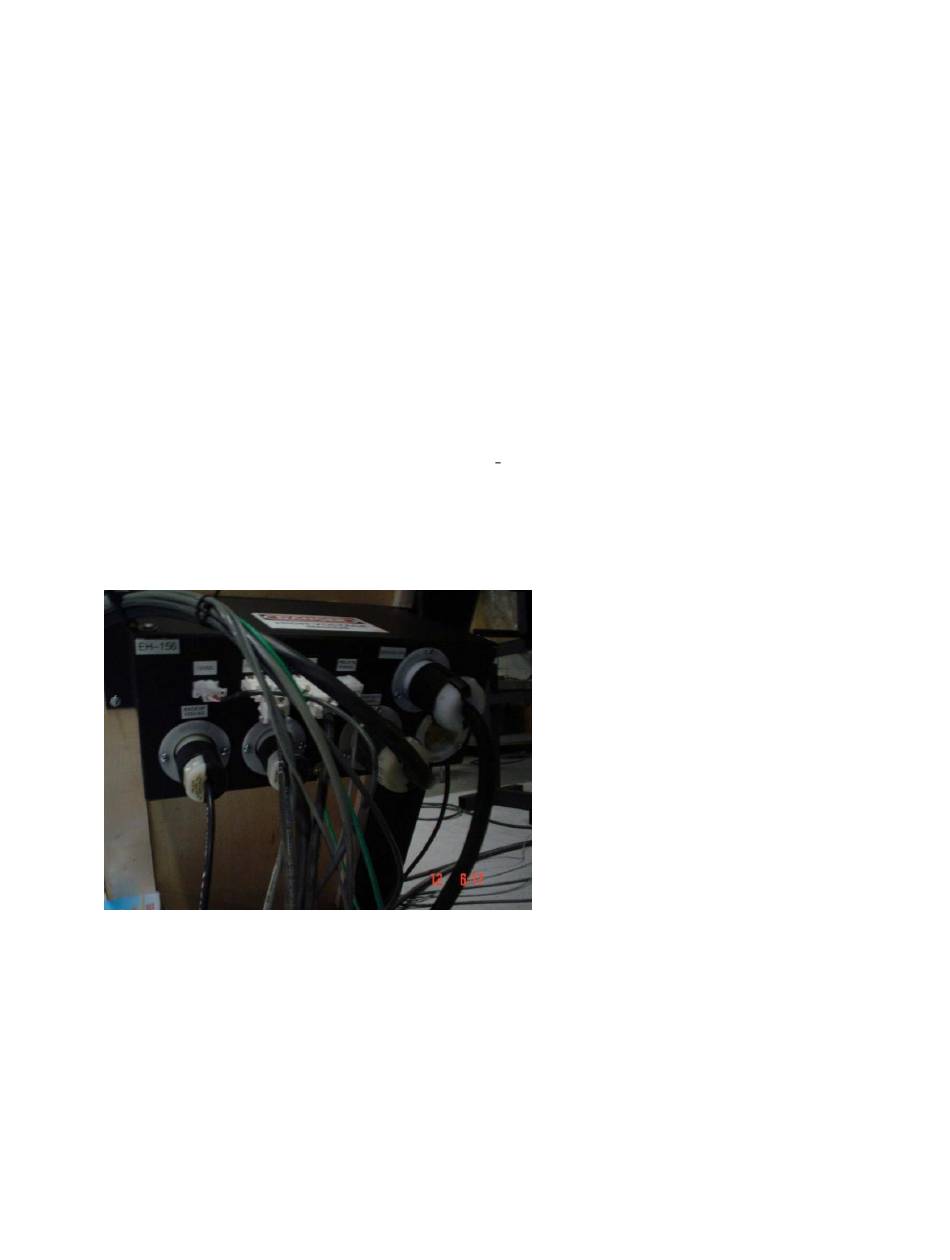

1-2A Input
.
1-2B Power
1. Power connection for frequency drive invertors.
Pitch
Roll
2. 12VDC power supply for relay control
3. Pump power, raise and lower control relays
4. Main power relay contactor and thermal overload protect
5. Receptacles for all connections
Power: Two circuits of
blowers, projector, audio amplifiers and hydraulic motor.
One circuit of 208 VAC three phase, 20 amp for drive motors.
Contains the following;
Box:
115 VAC single phase, 20 amp 60 Hz for computer,
