1-2O Roll Slip Ring - MaxFlight FS-VC Manual

Connected to the motion computer PCI motion card also manufactured by Pro Motion company.
All signals to and from motion computer to the machine passes through the pre-molded cable to
the interface circuit board.
A DO/IO isolation circuit board is used to interface between all the machines sensors and the
interface board. It's function is to electrostatically isolate the sensors from damaging the
interface DO/IO chips. It also has indicator lights that help in troubleshooting.

1-2O Roll Slip Ring

Located inside the weldment roll drive shaft and the cockpit. Mounted inside the roll shaft it
passes the signal to the cockpit. These units are sealed and no maintenance allowed.

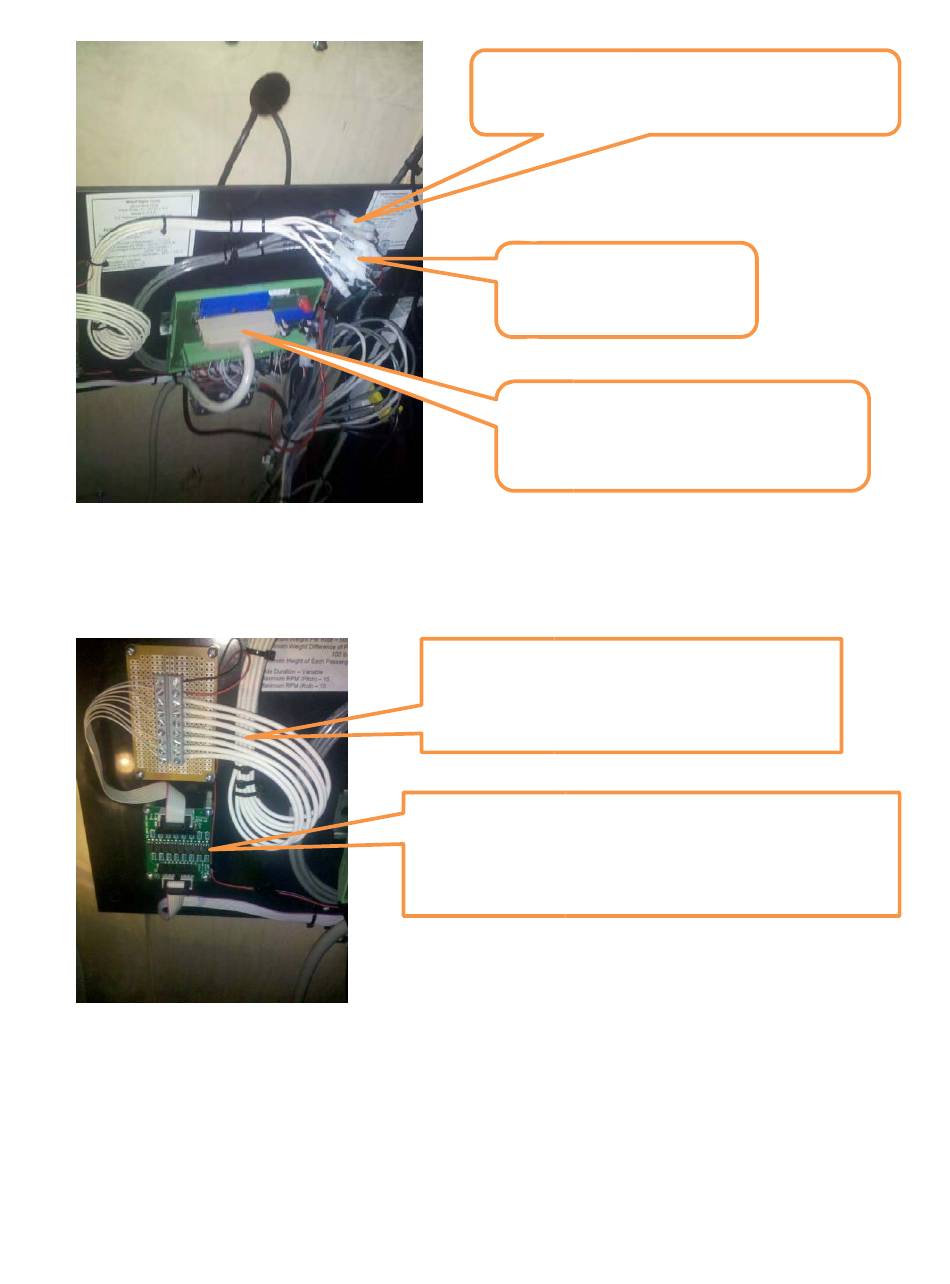

Wires to all machine sensor circuits. Plugs
are marked as to circuit function.
DO/IO isolation board with indicator lights that
show when sensors are triggered on the machine.
40
Inverter Signal, relay control, encoders
connectors.
Sensor wiring
connectors
Pre-molded interface cable between
Motion computer and interface
board.
They help in troubleshooting.
