COMPUTER SYSTEMS

1-4 A Command Console
1. CPU- LAN, audio and video located on mother board, PCI based Pro
Motion control board, Blastronics communication board, power supply,
hard disk drives, CD drive, and software to control it all.
2. Monitor
3. Cabling
4. Network switch (if kiosk is used)
5. Operating system is Win XP-Pro with SP-3
1-4B On-Board Computer
High end computer/processor combination. Contains all the games and their video files
43

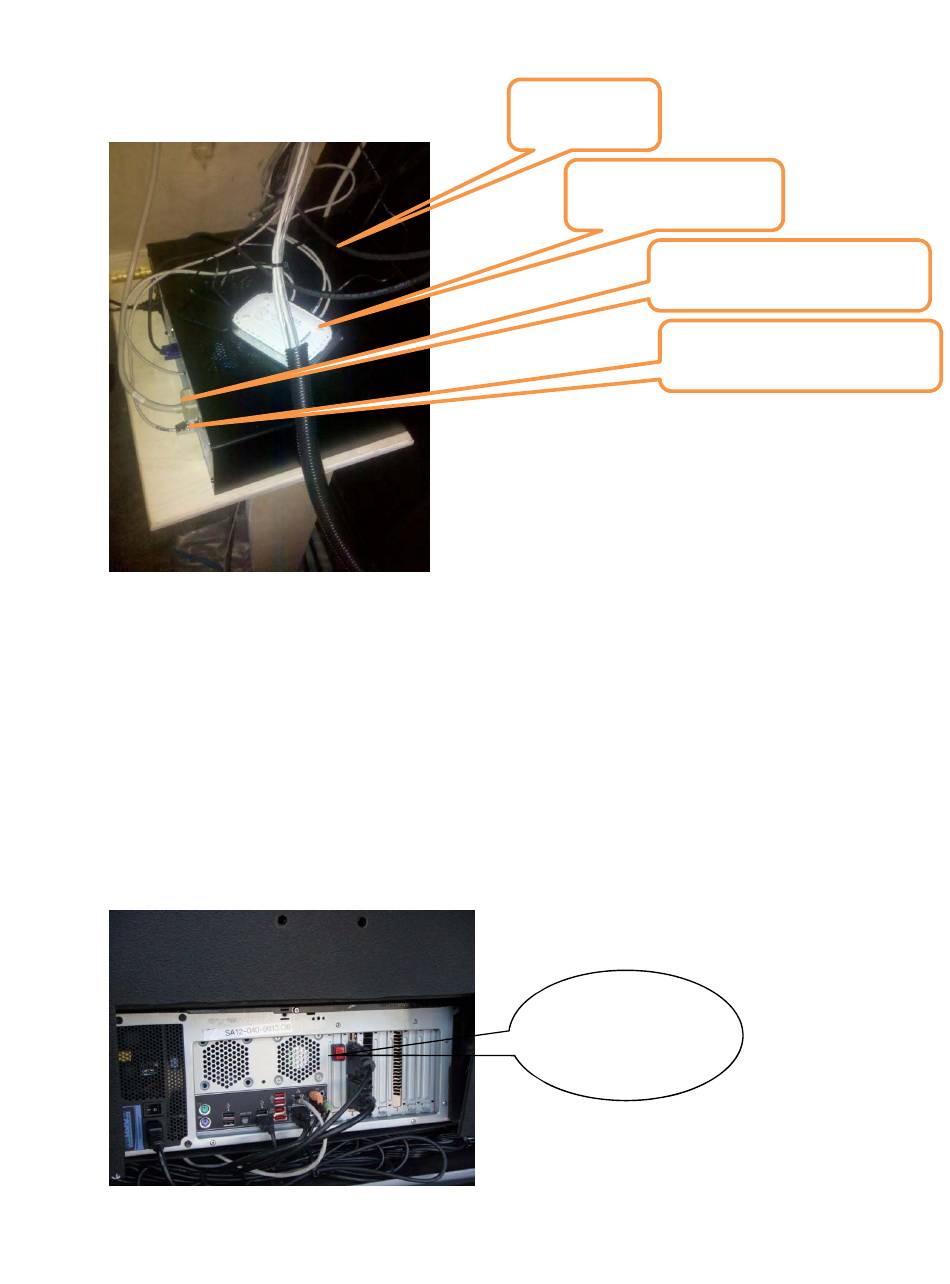

Motion
Com p uter
LAN Network
switch
Pro Motion Signal cable to
Serial RS-45 signal cable
On-board red
Power "ON"
Button
Interface boar d
to Inverters
