1-2H Pitch Slip Rings

These units are sealed no maintenance required or allowed.
Pitch Signal Slip Ring and Cables

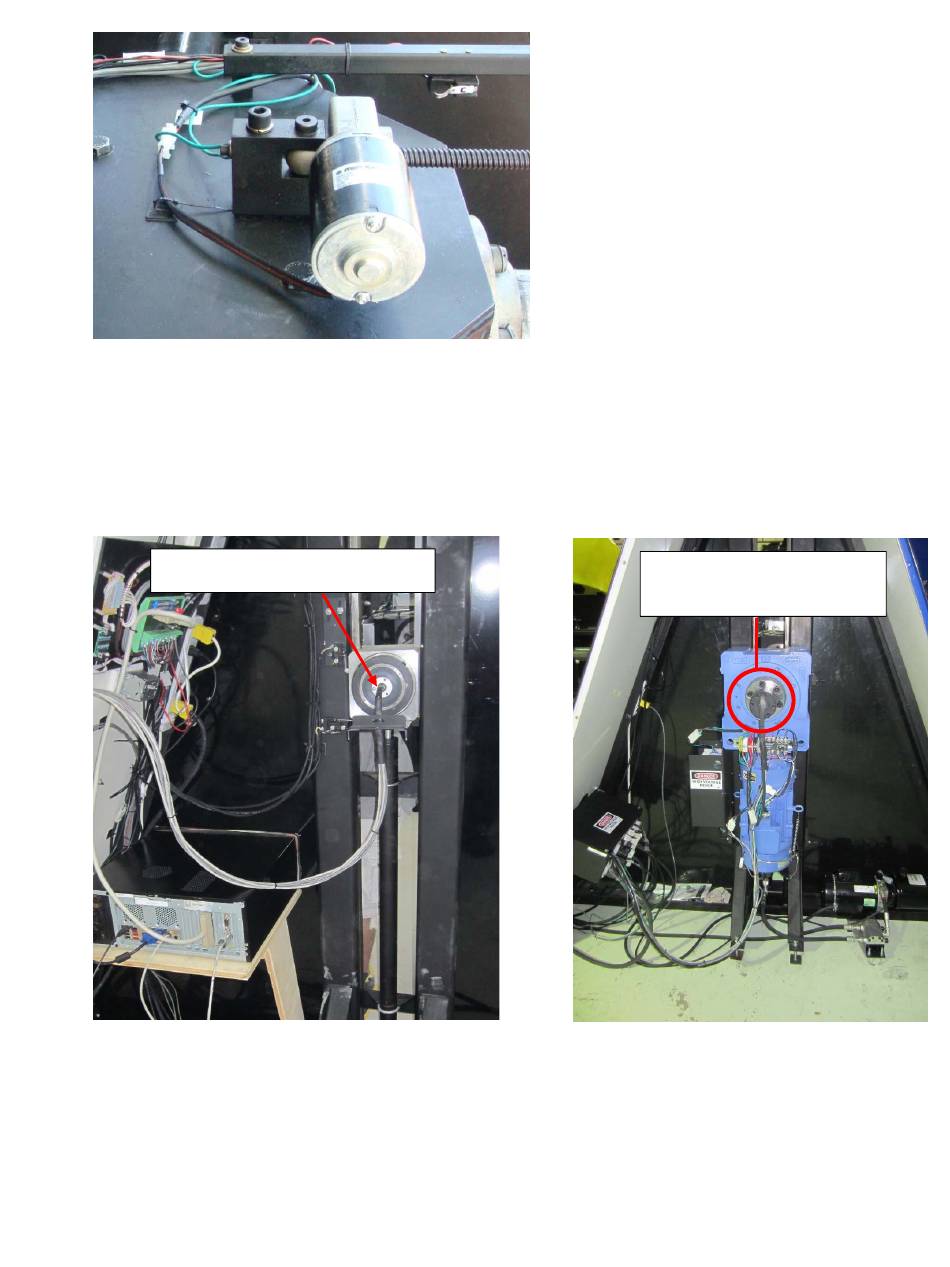

Counterweight drive motor and gear box.
Operates on 24VDC and has a 10 to 1 ratio gear
box coupled via rubber drive bushing. Braking
of counterweight is achieved by relays
supplying +24VDC to both sides of the motor.
38
Pitch Power Slip Ring and
Cables
